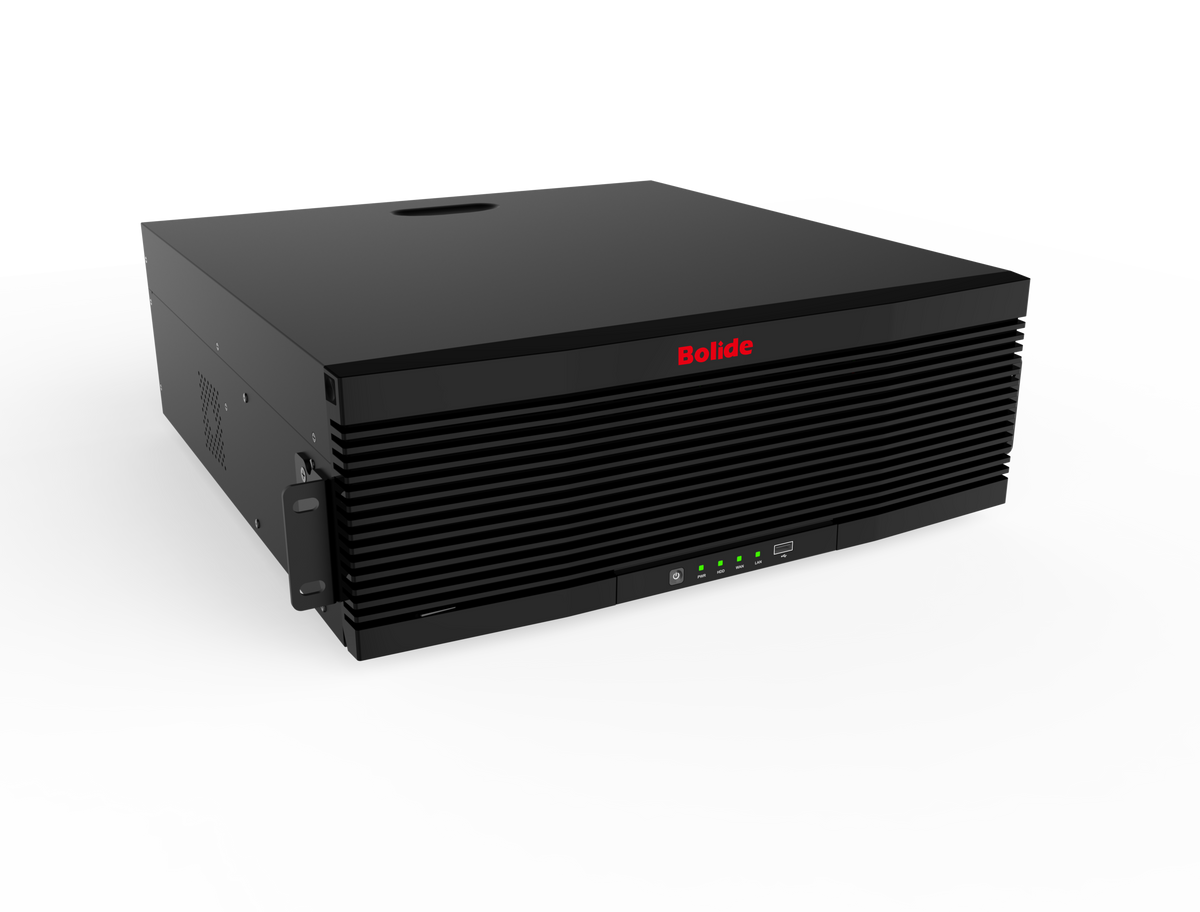

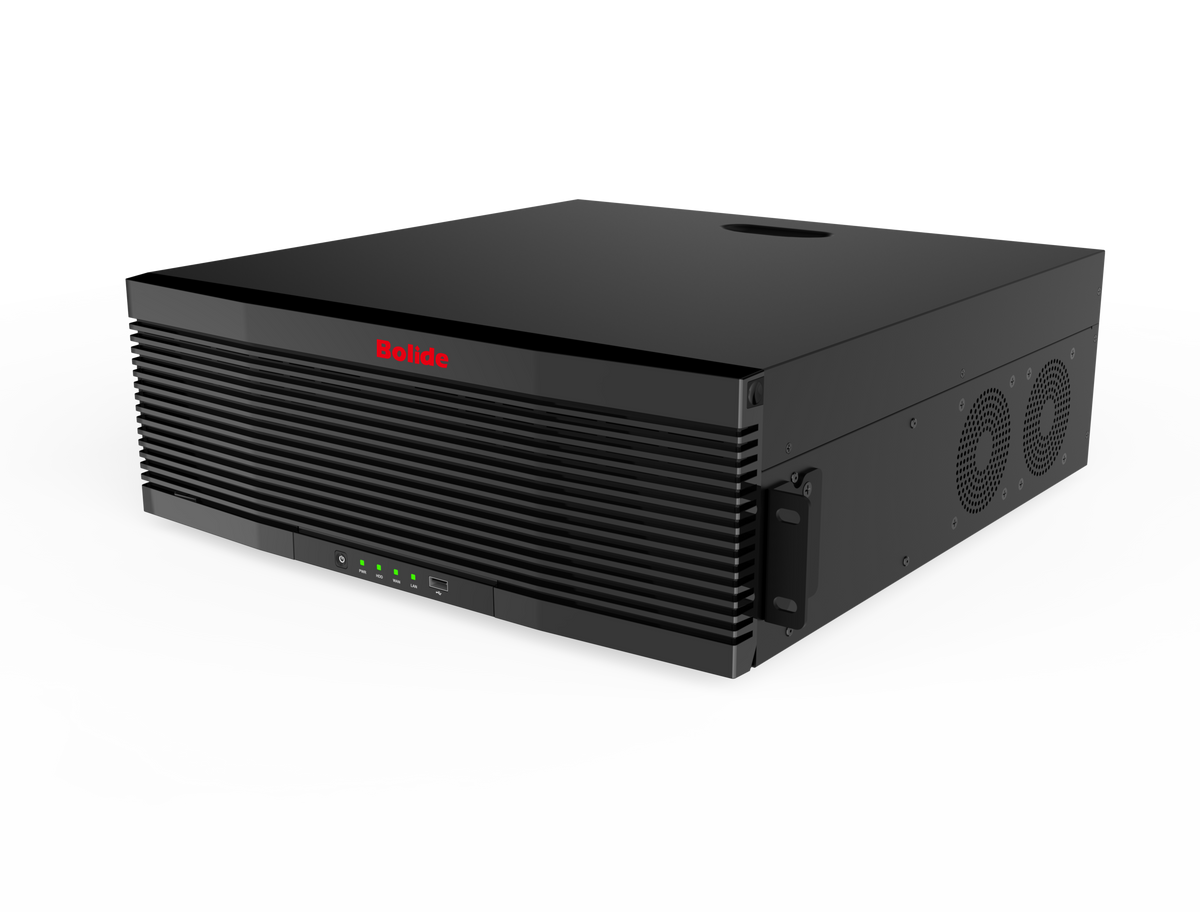

The Bolide BN-NVR/256NX/NDAA is a high-capacity 256-channel network video recorder designed for large-scale IP surveillance systems. It supports recording resolutions up to 8MP (4K), provides up to 1024Mbps of recording throughput, and supports up to 16 internal SATA hard drives for high-capacity video storage.
Designed for rack-mounted surveillance installations, the NVR provides four HDMI outputs, ONVIF Profile S Version 2.6 compatibility, Gigabit Ethernet connectivity, alarm I/O, RS-485, eSATA expansion, and remote mobile access through Bolide Quick Connect for iOS and Android devices. The unit is also listed as NDAA compliant by Bolide.
Key Features
- 256-channel network video recorder
- Supports recording resolutions up to 8MP (4K)
- Maximum 1024Mbps recording throughput
- Supports 8MP, 5MP, 3MP, 2MP, 1.3MP, and 1MP recording resolutions
- Up to 240 FPS at 8MP (4K)
- Up to 480 FPS at 4MP
- Up to 960 FPS at 2MP
- Four HDMI video outputs
- Supports multiple display split configurations up to 64 views
- 16 internal SATA hard-drive bays
- Supports up to 12TB per hard drive
- ONVIF Profile S Version 2.6
- Gigabit RJ-45 network connection
- 16 alarm inputs and 1 alarm output
- RS-485 interface
- eSATA connectivity
- Remote mobile access through Bolide Quick Connect
- NDAA compliant
256-Channel Recording Capacity
The BN-NVR/256NX/NDAA provides 256 network camera channels for large surveillance deployments. Its maximum recording throughput of 1024Mbps allows the recorder to handle high volumes of network video traffic when properly configured with compatible cameras and network infrastructure.
4K Video Recording
The NVR supports recording resolutions up to 8MP (4K), along with 5MP, 3MP, 2MP (1080P), 1.3MP (960P), and 1MP (720P) resolutions. Bolide specifies recording performance of up to 240 FPS at 8MP, 480 FPS at 4MP, and 960 FPS at 2MP. Actual system performance can vary depending on camera configuration, recording settings, and available network bandwidth.
High-Capacity Storage
The recorder provides 16 internal SATA hard-drive bays, with each drive supporting up to 12TB according to Bolide's current specifications. This provides substantial storage capacity for large multi-camera installations, with the actual usable recording capacity depending on the hard drives installed and the selected recording configuration.
Multi-Display Monitoring
Four HDMI outputs provide flexible video display connectivity. Supported display configurations include 1, 4, 6, 8, 9, 10, 13, 14, 16, 32, 36, and 64-view layouts. Supported output resolutions include up to 3840 × 2160.
Network and Camera Compatibility
The BN-NVR/256NX/NDAA uses a 1000M RJ-45 network interface and supports ONVIF Profile S Version 2.6 for compatible IP camera integration. The recorder does not include built-in PoE ports, so compatible cameras require a separate PoE switch or appropriate network power infrastructure.
Alarm and Control Interfaces
- 16-channel alarm inputs
- 1-channel alarm output
- RS-485 interface
- 1-channel audio input
- 1-channel audio output
- eSATA interface
- 2 × USB 3.0 ports for video backup and firmware upgrades
- 1 × USB 2.0 port for mouse connection
Remote Mobile Access
Bolide Quick Connect provides mobile-device access through compatible iOS and Android devices, allowing supported surveillance systems to be accessed remotely from compatible mobile applications.
Rack-Mount Design

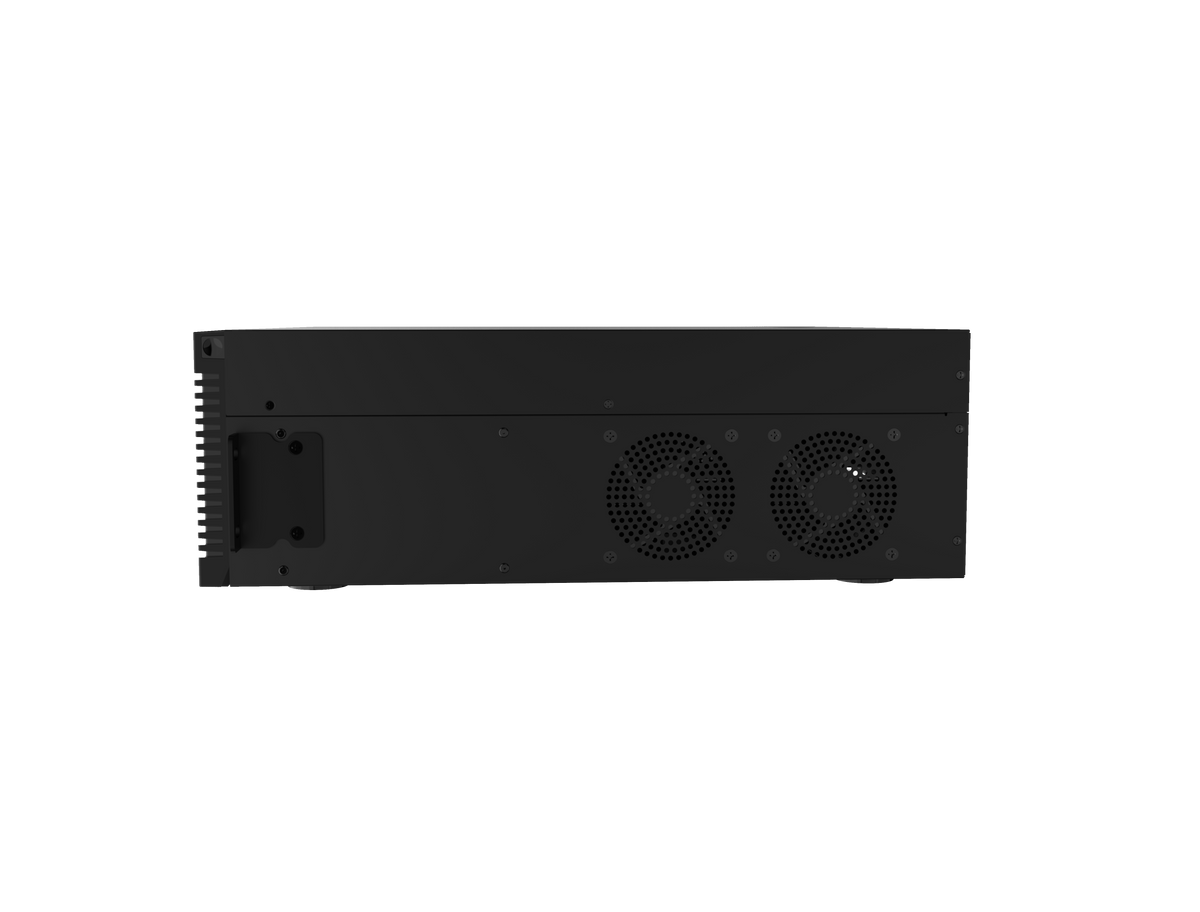

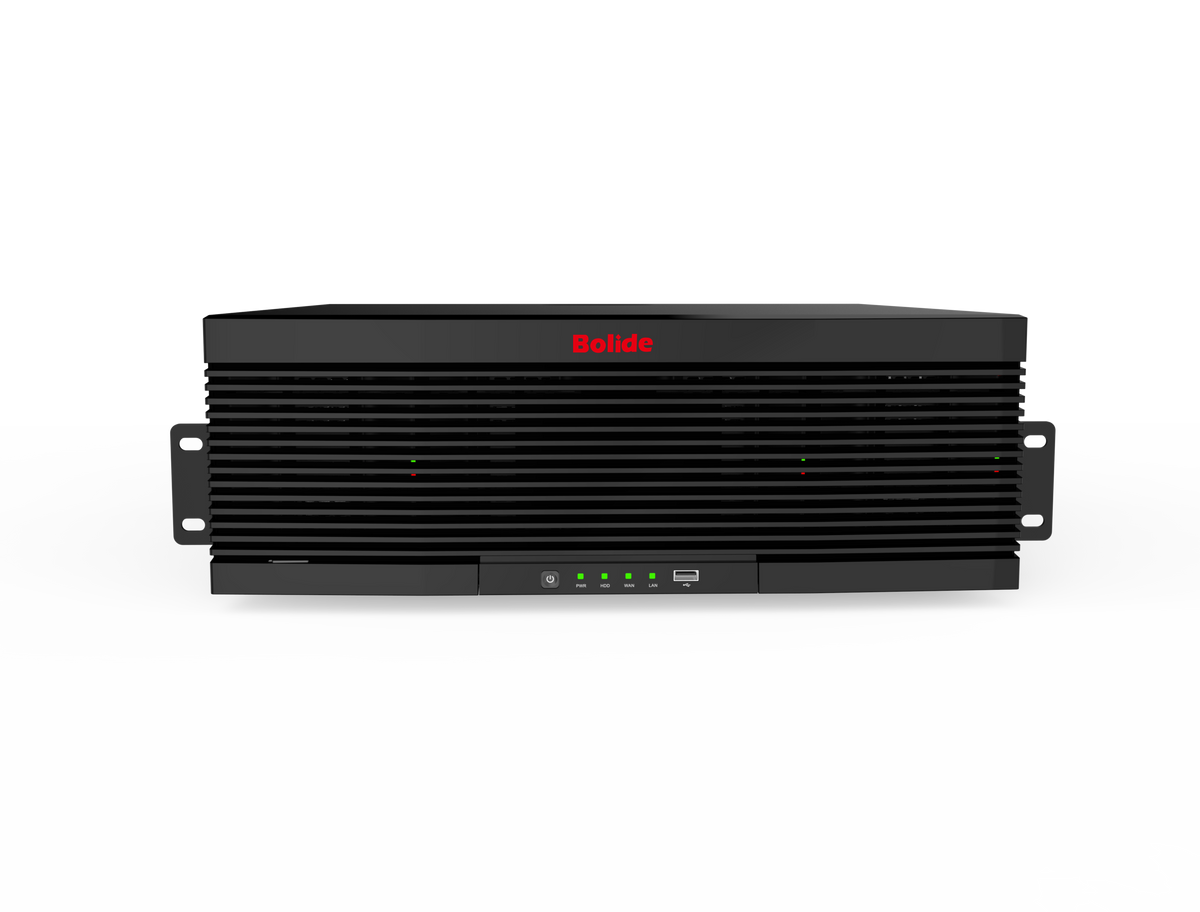

The recorder is designed for rack-mounted installations and measures 17.32 inches wide by 18.11 inches deep by 7.44 inches high, including the rack-mount ears. Its AC 110–240V ATX 250W power supply is designed for the requirements of this high-capacity NVR platform.
Technical Specifications
- Model: BN-NVR/256NX/NDAA
- Channel Capacity: 256 channels
- NDAA: Compliant
- Maximum Recording Throughput: 1024Mbps
- Maximum Recording Resolution: 8MP (4K)
- Supported Resolutions: 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1MP (720P)
- Recording Frame Rate: 8MP: 240 FPS; 4MP: 480 FPS; 2MP: 960 FPS
- Display Split: 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 / 32 / 36 / 64
- Video Outputs: 4 × HDMI
- Maximum Display Resolution: 3840 × 2160
- Network Interface: RJ-45 Gigabit Ethernet
- ONVIF: Profile S Version 2.6
- PoE: None
- Internal Storage: 16 × SATA HDD bays
- Maximum HDD Capacity: Up to 12TB per HDD
- Alarm Input/Output: 16-channel input / 1-channel output
- Audio: 1-channel input / 1-channel output
- RS-485: Yes
- eSATA: Yes
- USB: 2 × USB 3.0, 1 × USB 2.0
- Mobile Access: Bolide Quick Connect for iOS and Android
- Power Supply: AC 110–240V ATX 250W
- Dimensions: 17.32" W × 18.11" D × 7.44" H, including rack-mount ears
What's Included
- Bolide BN-NVR/256NX/NDAA network video recorder
- Rack-mount ears
- Power supply
Note: Hard drives are not specified as included in the manufacturer's current product specifications. Storage capacity depends on the compatible SATA drives installed in the recorder.
Product Summary
The Bolide BN-NVR/256NX/NDAA is built for large IP surveillance systems requiring high channel capacity, high recording throughput, extensive internal storage, and rack-mount installation. With support for 256 cameras, 4K recording, 16 SATA drives, four HDMI outputs, ONVIF compatibility, alarm interfaces, and remote mobile access, it provides a scalable recording platform for large commercial and institutional surveillance deployments.
