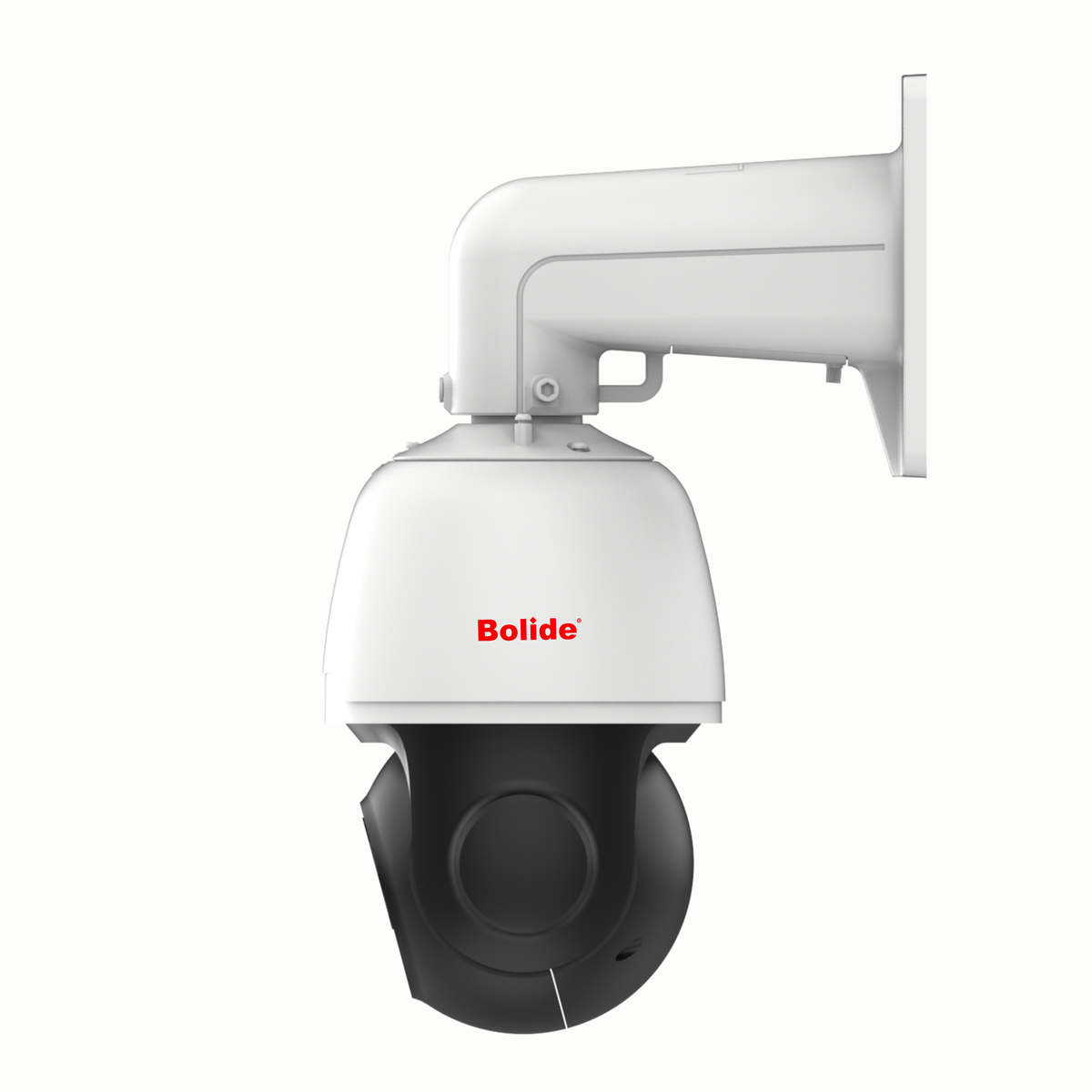

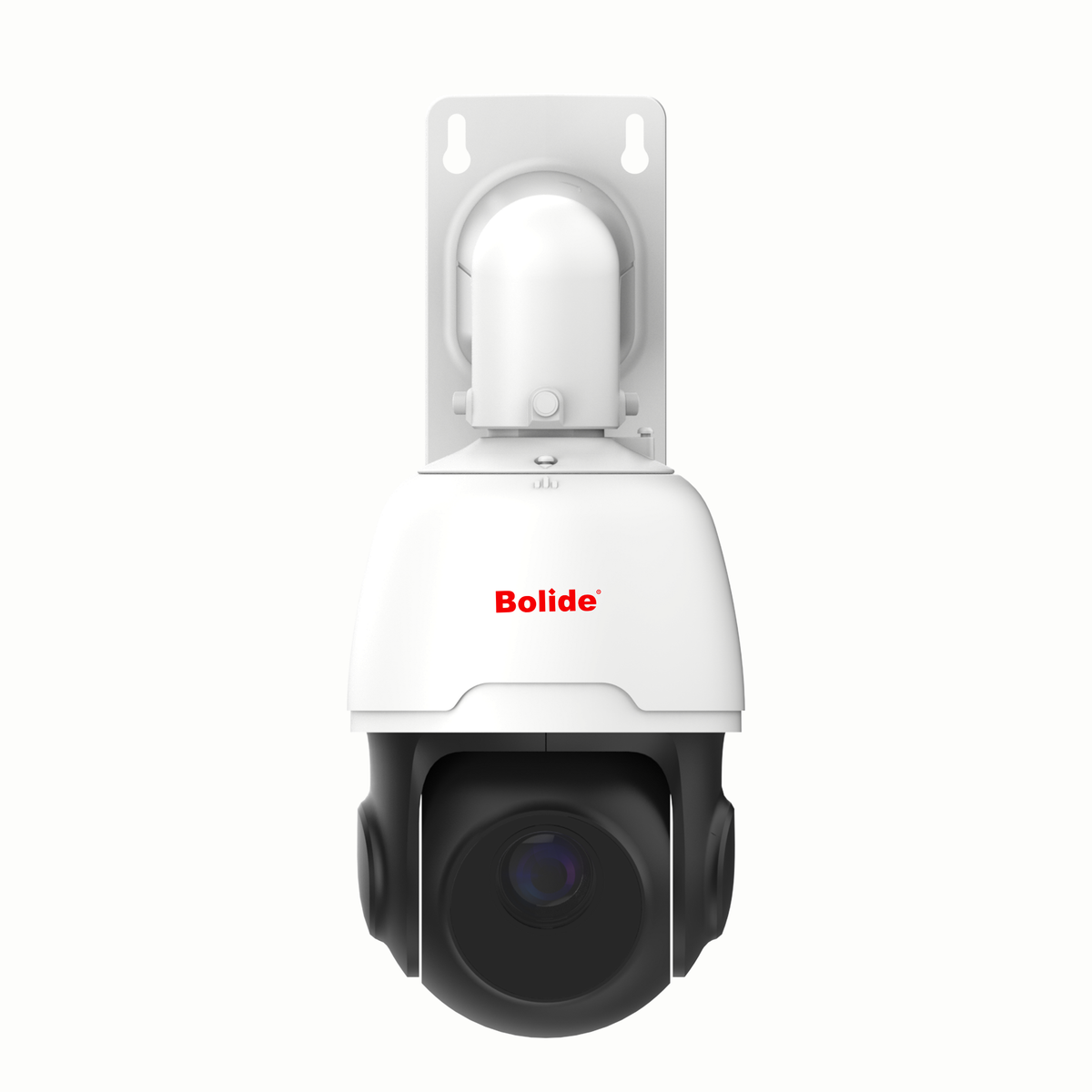

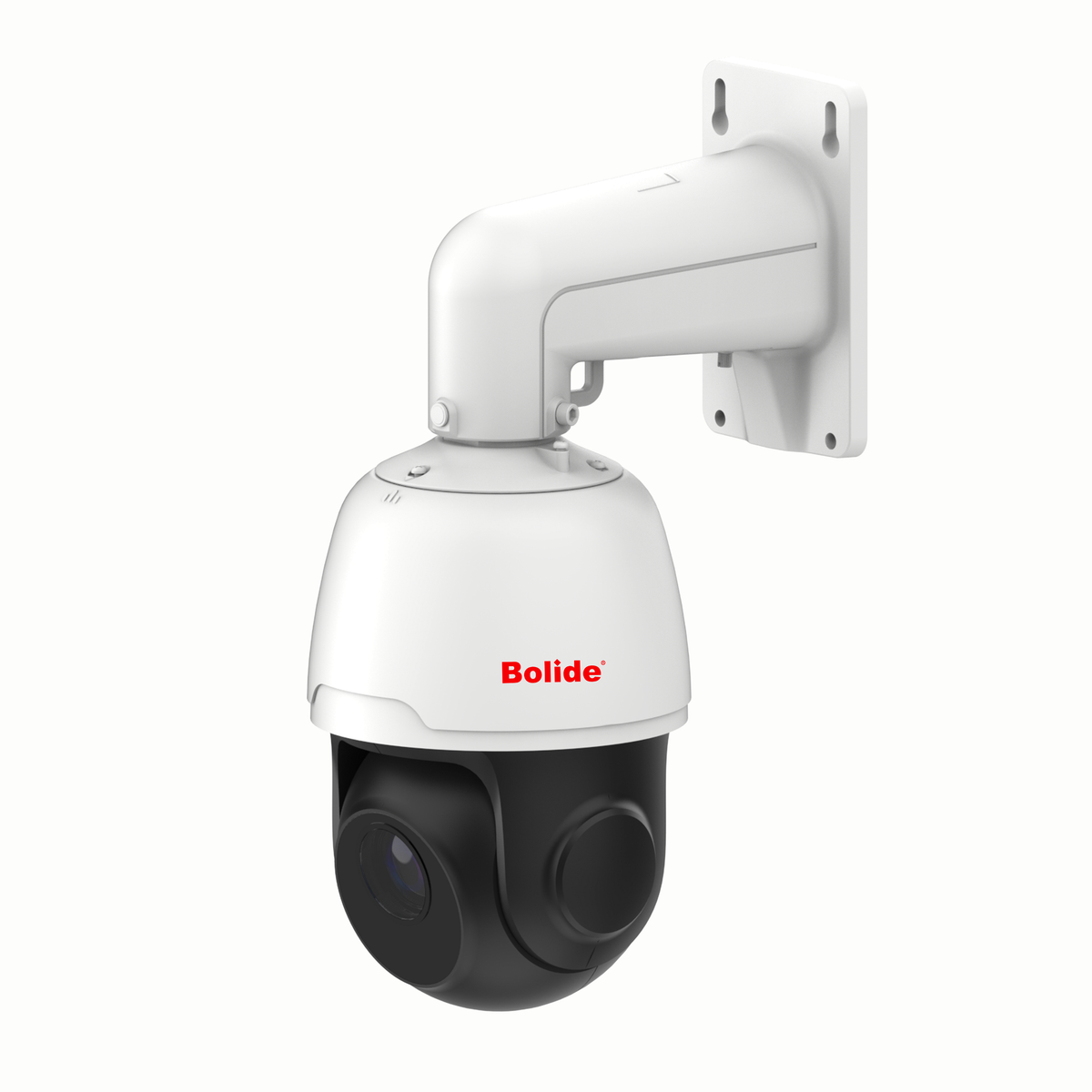

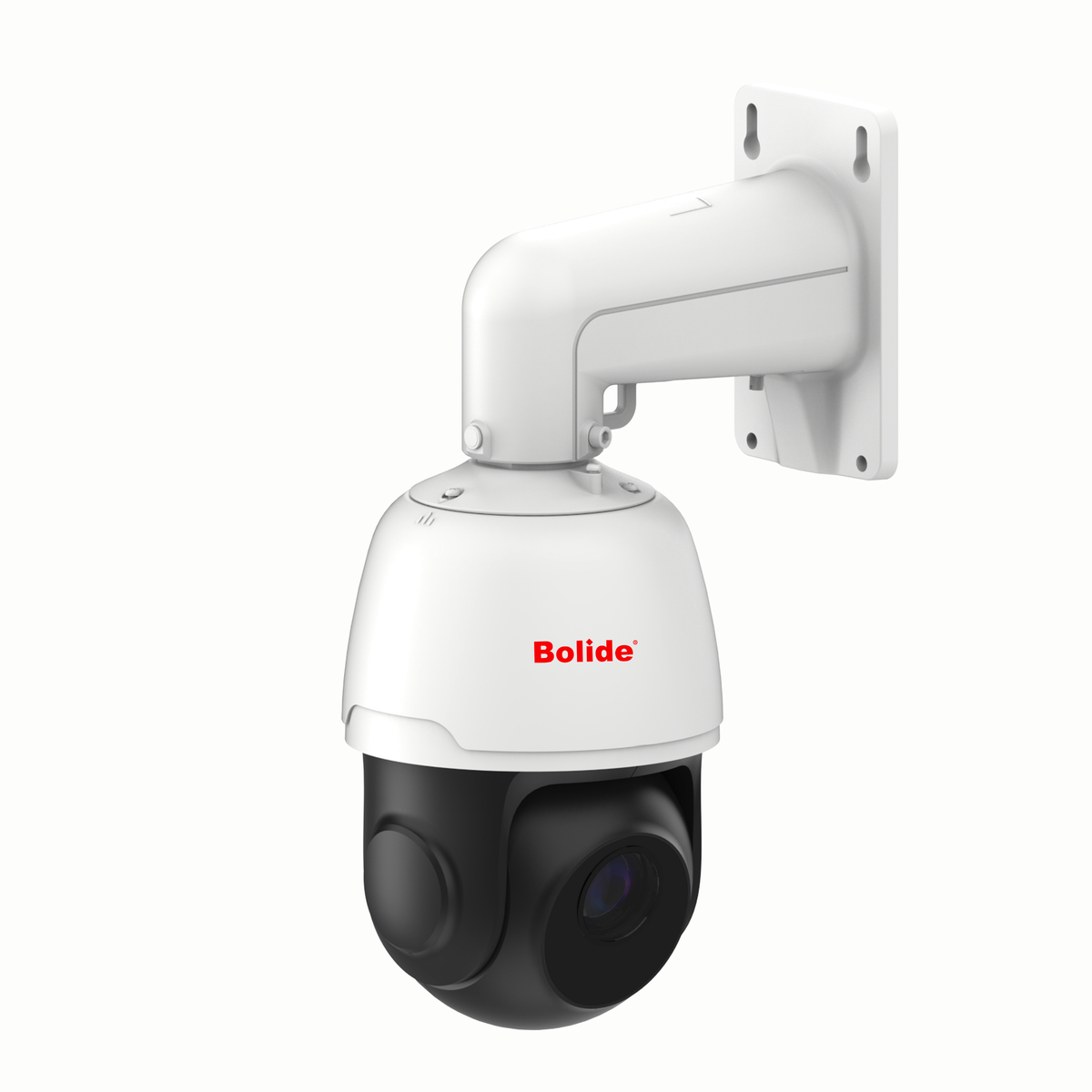

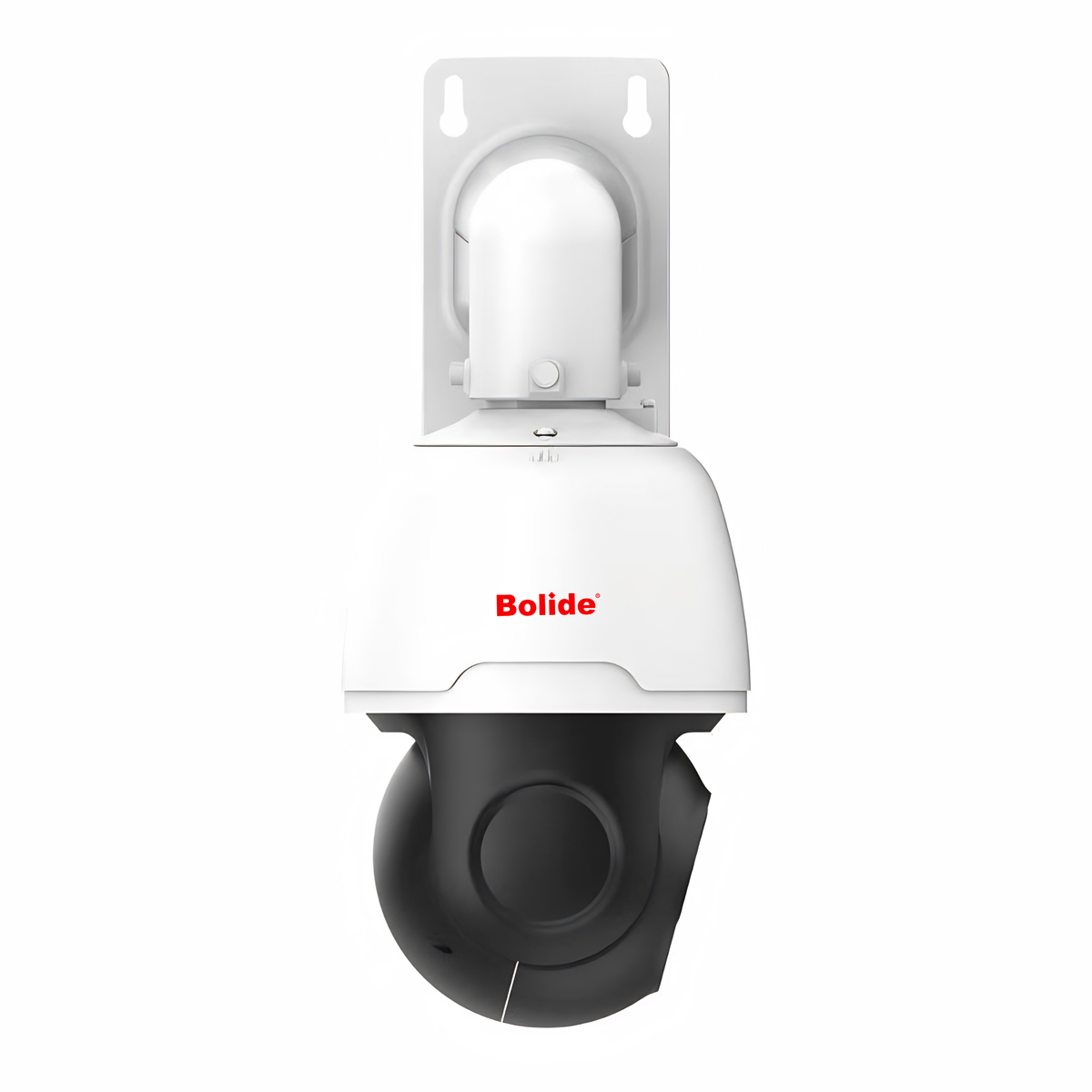

The Bolide BN1009PTZ-5MP/NDAA is a full-size 5MP network PTZ camera designed for active monitoring of large outdoor areas. It combines a 1/2.8-inch Progressive Scan CMOS sensor with 40x optical zoom, 16x digital zoom, motorized pan and tilt, auto-tracking, and perimeter protection features.
The camera supports video resolutions up to 2592 × 1944 at 25/30 FPS and includes True WDR, 3D digital noise reduction, electronic image stabilization, defog, and intelligent video analytics. Its IP66-rated housing is designed for outdoor surveillance installations.
Key Features
- 5MP full-size IP PTZ camera
- 1/2.8-inch Progressive Scan CMOS sensor
- Up to 2592 × 1944 resolution
- 40x optical zoom
- 16x digital zoom
- Auto-tracking functionality
- Perimeter protection
- True Wide Dynamic Range (WDR)
- 3D digital noise reduction
- Electronic image stabilization (EIS)
- Defog function
- Intelligent video analytics
- Three simultaneous video streams
- ONVIF compliant
- IP66-rated outdoor housing
- NDAA compliant
5MP Imaging
The BN1009PTZ-5MP/NDAA uses a 1/2.8-inch Progressive Scan CMOS sensor and supports a maximum resolution of 2592 × 1944. At this resolution, the camera can operate at up to 25/30 FPS, depending on the selected video system and configuration.
40x Optical Zoom
The 40x optical zoom provides adjustable magnification for monitoring subjects at different distances while maintaining the camera's optical imaging capabilities. A 16x digital zoom is also available for additional magnification when needed.
PTZ Control and Auto Tracking
The camera provides motorized pan, tilt, and zoom control for remotely adjusting the viewing direction and magnification. Auto-tracking can be used to follow compatible moving subjects within the camera's configured monitoring area.
Perimeter protection features provide additional monitoring capabilities for defined surveillance areas. The camera also supports configurable idle-motion functions, allowing preset positions, patrols, scans, or tracking functions to be activated after a defined period of inactivity.
Video and Image Processing
- True WDR: Helps manage scenes containing both bright and darker areas.
- 3D DNR: Reduces image noise in supported conditions.
- Defog: Provides image-processing support for hazy conditions.
- EIS: Helps reduce the effect of camera vibration.
- ICR: Supports day/night image switching.
Video Streaming
The BN1009PTZ-5MP/NDAA supports three video streams for flexible viewing and recording configurations. The primary stream supports resolutions including 2592 × 1944, 2592 × 1520, 1920 × 1080, and 1280 × 720 at up to 25/30 FPS. Secondary and tertiary streams support lower resolutions for applications where reduced bandwidth is preferred.
Video Compression
The camera supports variable and constant bit-rate control. The primary stream supports a specified bit-rate range of 200Kbps to 16Mbps, while secondary and tertiary streams support lower bit-rate ranges.
Intelligent Analytics
The camera includes intelligent analytics designed to assist with automated monitoring functions. Depending on configuration and supported firmware features, these capabilities can be used alongside auto-tracking and perimeter-protection functions.
Analytics should be configured according to the surveillance environment, camera positioning, and connected recording or video-management system.
ONVIF and Network Integration
The BN1009PTZ-5MP/NDAA is ONVIF compliant, allowing integration with compatible network video recorders and video-management systems. Network compatibility should be verified with the intended NVR or VMS before installation.
Outdoor Construction
The camera uses an IP66-rated housing for outdoor installations. The enclosure is designed to provide protection against dust and water exposure consistent with its IP66 rating.
Technical Specifications
- Model: BN1009PTZ-5MP/NDAA
- Product Type: Full-Size Network PTZ Camera
- Image Sensor: 1/2.8-inch Progressive Scan CMOS
- Maximum Resolution: 5MP / 2592 × 1944
- Maximum Frame Rate: 25/30 FPS at supported resolutions
- Optical Zoom: 40x
- Digital Zoom: 16x
- Video Streams: 3
- Video Compression: H.265/H.264 and supported stream formats
- Bit Rate Control: CBR/VBR
- Primary Stream Bit Rate: 200Kbps–16Mbps
- Image Processing: True WDR, 3D DNR, ICR, Defog, EIS
- Auto Tracking: Yes
- Perimeter Protection: Yes
- ONVIF: Compliant
- Housing Rating: IP66
- Compliance: NDAA compliant
Idle Motion
The idle-motion function can be configured with a selectable delay of 1–240 minutes. After the programmed period of inactivity, supported functions can include preset positions, patrols, scans, or tracking operations.
Product Summary
The Bolide BN1009PTZ-5MP/NDAA provides a combination of 5MP imaging, 40x optical zoom, PTZ control, auto-tracking, perimeter protection, and outdoor-rated construction. Its full-size PTZ design makes it suitable for surveillance applications where operators need the ability to remotely change viewing direction and zoom into areas of interest.
