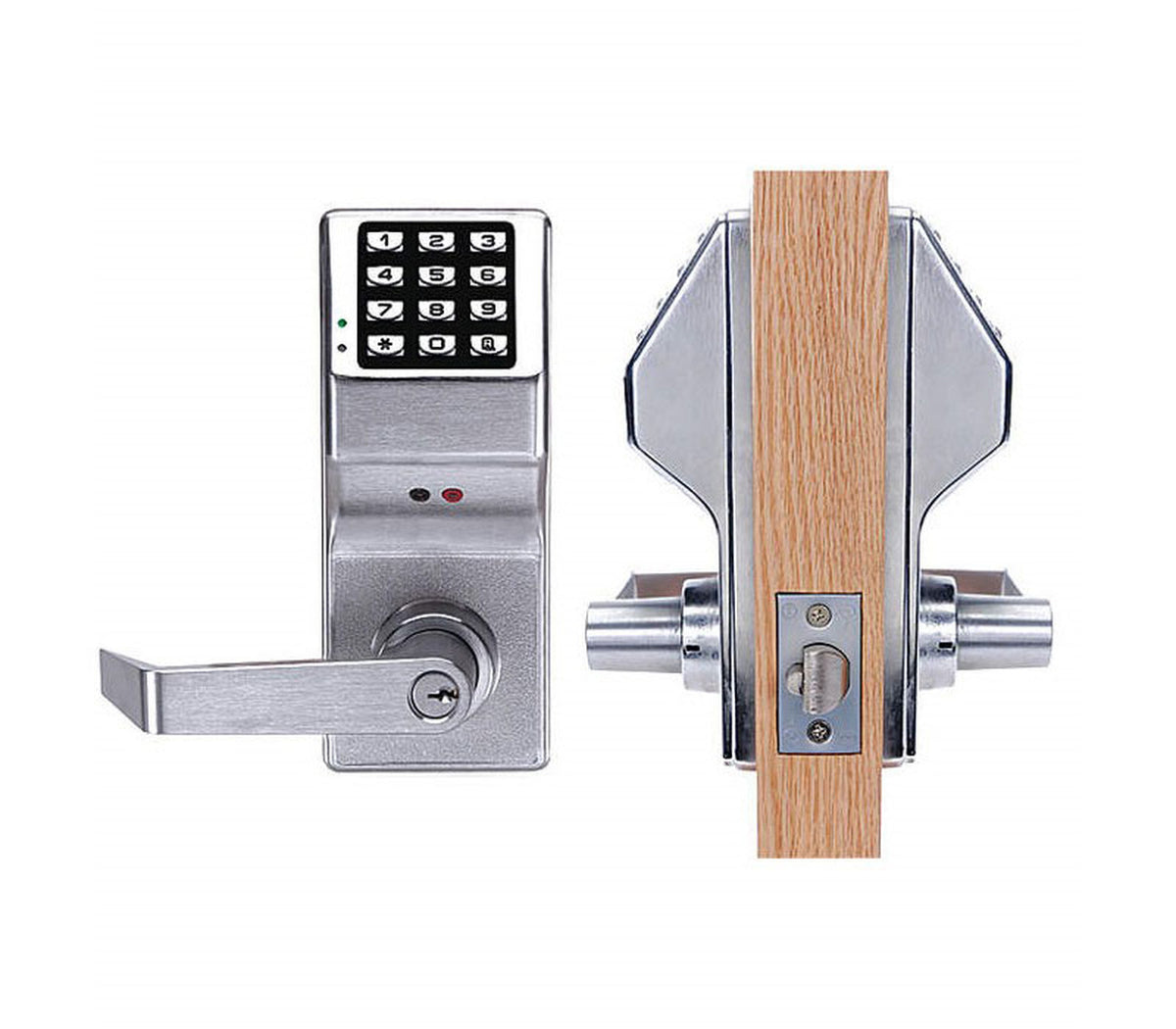

Alarm Lock DL5300/26D Trilogy Double-Sided Digital Electronic Lock – Satin Chrome

The Alarm Lock Trilogy DL5300/26D is a double-sided digital electronic lock designed for controlled access through a programmable keypad on both sides of the door. The lock supports up to 2,000 user codes and allows programming from either side, with user codes programmed on one keypad applying to both sides.

This model features a US26D Satin Chrome finish, all-metal 12-button keypads, a Grade 1 cylindrical lock design, and a rugged clutch mechanism. It is non-handed and operates on standard AA alkaline batteries, making it suitable for a range of commercial access-control applications.

Key Features

• Double-sided digital electronic access lock
• Programmable keypad on both sides of the door
• Up to 2,000 user codes
• 3- to 6-digit PIN codes
• Master, manager, supervisor, and basic user access levels
• Up to 500 scheduled events
• Up to 40,000-event audit trail
• Multiple one-time user codes
• All-metal 12-button keypads
• Key override available from the primary side
• Rugged clutch mechanism
• BHMA Grade 1 heavy-duty cylindrical lock construction
• Non-handed design
• Weather-resistant construction
• UL Listed with 3-hour fire-rated latch
• ADA-compliant levers
• US26D Satin Chrome finish

Double-Sided Keypad Access

The DL5300 features programmable keypads on both sides of the door. Programming user codes on one side automatically applies to the other side, simplifying setup for double-sided access applications.

The lock supports multiple user levels, including master, manager, supervisor, and basic users. PIN codes can be configured using 3 to 6 digits.

Access Scheduling and Audit Trail

The DL5300 supports up to 500 scheduled events and maintains an audit trail of up to 40,000 events. Multiple one-time user codes can also be programmed for temporary or service access.

Depending on the programming configuration, the lock can provide scheduled access functions and maintain records of access activity for review through compatible Alarm Lock programming equipment.

Key Override

The standard key override is operable from the primary side of the lock. The key cylinder on the secondary side is used for removing the lever and accessing the battery compartment rather than operating the latch.

Battery-Powered Operation

The DL5300 operates using five AA alkaline batteries. The current product specification rates the supplied batteries for up to 120,000 cycles and includes audible low-battery notification along with visual and audible entry indicators.

Grade 1 Cylindrical Construction

The lock incorporates a rugged clutch mechanism and Grade 1 heavy-duty cylindrical lock construction. The reversible latch bolt provides installation flexibility, while the non-handed design allows the lock to be installed on either door handing.

Weather-Resistant Construction

The DL5300 series is designed for weather-resistant operation and is rated for temperatures from -31°F to 151°F (-35°C to 66°C). This allows the lock to be used in a variety of commercial environments where exposure to changing temperatures may occur.

Technical Specifications

• Brand: Alarm Lock
• Series: Trilogy
• Model: DL5300/26D
• Lock Type: Double-sided digital electronic cylindrical lock
• Access Method: PIN keypad
• User Capacity: Up to 2,000 user codes
• PIN Length: 3-6 digits
• Access Levels: Master, manager, supervisor, and basic user
• Scheduled Events: Up to 500
• Audit Trail: Up to 40,000 events
• Keypads: Two all-metal 12-button keypads
• Battery: Five AA alkaline batteries
• Backset: 2-3/4 inches
• Optional Backset: 2-3/8 inches, must be specified when ordering
• Door Thickness: 1-5/8 to 1-7/8 inches
• Latch Bolt: Reversible, 1/2-inch throw
• Strike: 1-1/8 x 2-3/4-inch T strike and 1-1/4 x 4-7/8-inch ASA strike
• Handing: Non-handed
• Door Preparation: Standard ANSI A115 cylindrical preparation with additional through-bolt holes
• Lock Construction: BHMA Grade 1 heavy-duty cylindrical
• Finish: US26D Satin Chrome
• Operating Temperature: -31°F to 151°F (-35°C to 66°C)
• Fire Rating: UL Listed, 3-hour fire rated
• Compliance: BHMA Grade 1, UL Listed, FCC Certified, ADA compliant

Installation and Compatibility

The DL5300/26D is designed for doors measuring 1-5/8 to 1-7/8 inches thick and uses a standard 2-3/4-inch backset. A 2-3/8-inch backset is also available when specified at the time of ordering.

The lock uses standard ANSI A115 cylindrical door preparation with additional through-bolt holes. Because this is a double-sided lock, verify door thickness, backset, door preparation, and clearance on both sides before installation.

What's Included

• Alarm Lock DL5300/26D double-sided digital electronic lock
• Primary and secondary keypad assemblies
• 1-1/8 x 2-3/4-inch T strike
• 1-1/4 x 4-7/8-inch ASA strike
• Five AA alkaline batteries
• Standard key override hardware
• Installation hardware

Programming

The DL5300 can be programmed through its keypad for basic functions. Computer-based programming and audit-trail management are supported through compatible Alarm Lock programming equipment and DL-Windows software.

Warranty

Warranty coverage is provided according to Alarm Lock's current manufacturer warranty terms.
