American Security AM4020 Home Fire Safe – 45-Minute Fire Rating with ESL5 Electronic Lock

The American Security AM4020 is a large-capacity home safe designed for storing important documents, firearms, jewelry, cash, and other valuables. As the largest model in the AM Series, it provides 4.88 cubic feet of interior storage along with three adjustable shelves. Its construction combines a 12-gauge steel body, 1/4-inch solid steel plate door, three-way bolt work, and ETL-certified fire protection.

Key Features

• 45-minute ETL fire rating at 1,200°F
• 12-gauge steel body
• 1/4-inch solid steel plate door
• 1-1/8-inch recessed door design
• Three-way bolt work
• Backlit UL-listed ESL5 electronic lock
• Stealth mode keypad
• Three adjustable interior shelves
• 4.88 cubic feet of interior capacity
• Gray fabric interior
• Fire protection panels throughout the safe
• Four pre-cut anchor holes
• Deep Blue powder-coated finish
• Black Nickel hardware
• 1-year parts and labor warranty

45-Minute ETL Fire Protection

The AM4020 has an ETL-certified fire rating of 45 minutes at 1,200°F. Fire protection panels are incorporated into the safe's construction to provide insulation against high temperatures during the manufacturer's specified fire test conditions.

Heavy-Duty Steel Construction

The AM4020 features a 12-gauge steel body and a 1/4-inch solid steel plate door. The 1-1/8-inch recessed door incorporates fire-insulating material, while three-way bolt work secures the door.

ESL5 Electronic Lock

The AM4020 can be configured with American Security's backlit UL-listed ESL5 electronic lock. The keypad includes a stealth mode that allows keypad operation without audible keypad tones when enabled.

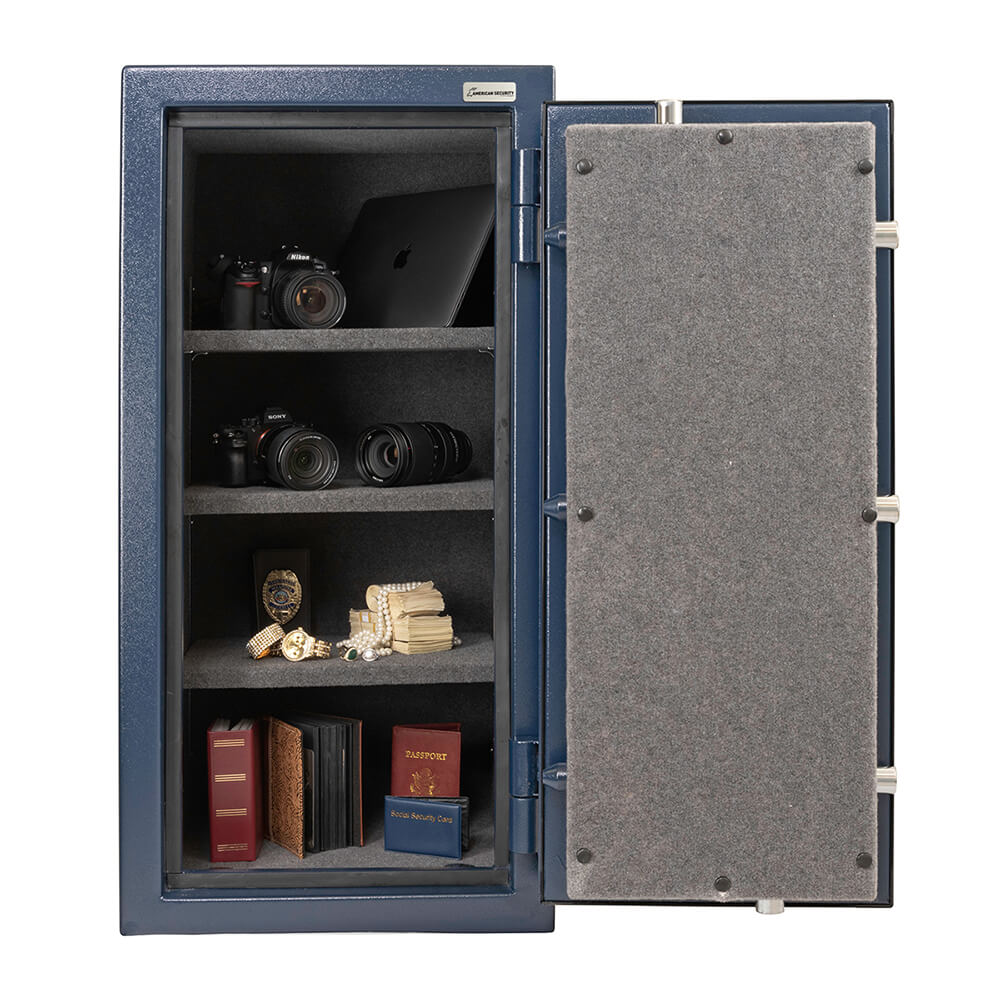

Large Interior Storage

With 4.88 cubic feet of interior capacity, the AM4020 provides more storage space than the smaller AM2020 and AM3020 models. Three adjustable shelves allow the interior to be configured for documents, valuables, firearms, and other items.

Interior Protection

The safe has a gray fabric interior and is lined with fire protection panels. For moisture-sensitive items such as paper documents, American Security recommends additional protective measures because fire-resistant safes that use certain fire-protection materials can release moisture during a fire event.

Anchoring

Four pre-cut anchor holes are provided for securing the safe to a suitable installation surface. The appropriate anchoring method should be selected based on the supporting structure and installation requirements.

Technical Specifications

• Model: AM4020 / AM4020E5 configuration
• Series: American Security AM Series
• Exterior Dimensions: 40" H × 20" W × 20" D
• Interior Dimensions: 37.25" H × 17.25" W × 14" D
• Door Clearance: 34.5" H × 14.5" W
• Body Construction: 12-gauge steel
• Door Construction: 1/4" solid steel plate
• Door Design: 1-1/8" recessed
• Interior Capacity: 4.88 cu. ft.
• Lock: ESL5 electronic lock
• Lock Listing: UL Listed
• Bolt Work: Three-way
• Fire Rating: ETL, 45 minutes at 1,200°F
• Fire Protection: Fire protection panels
• Shelves: 3 adjustable shelves
• Interior: Gray fabric
• Exterior Finish: Deep Blue powder-coated finish
• Hardware Finish: Black Nickel
• Anchor Holes: 4 pre-cut
• Weight: 316 lbs.
• Warranty: 1 year parts and labor

What's Included

• American Security AM4020 home safe
• ESL5 electronic lock when ordered in the ESL5 configuration
• Three adjustable interior shelves
• Gray fabric interior

Available Finish

The AM4020 is available in a Deep Blue powder-coated finish with Black Nickel hardware and a gray fabric interior.

Important Notes

• The 45-minute fire rating applies to the manufacturer's specified ETL test conditions and should not be interpreted as a guarantee that every stored item will remain undamaged in every fire.
• American Security identifies the AM4020 as a fire-resistant safe rather than a completely fireproof container.
• Anchoring should be performed using an appropriate method for the supporting surface.
• The safe weighs 316 lbs., so the delivery path, installation location, floor structure, and anchoring requirements should be evaluated before installation.
