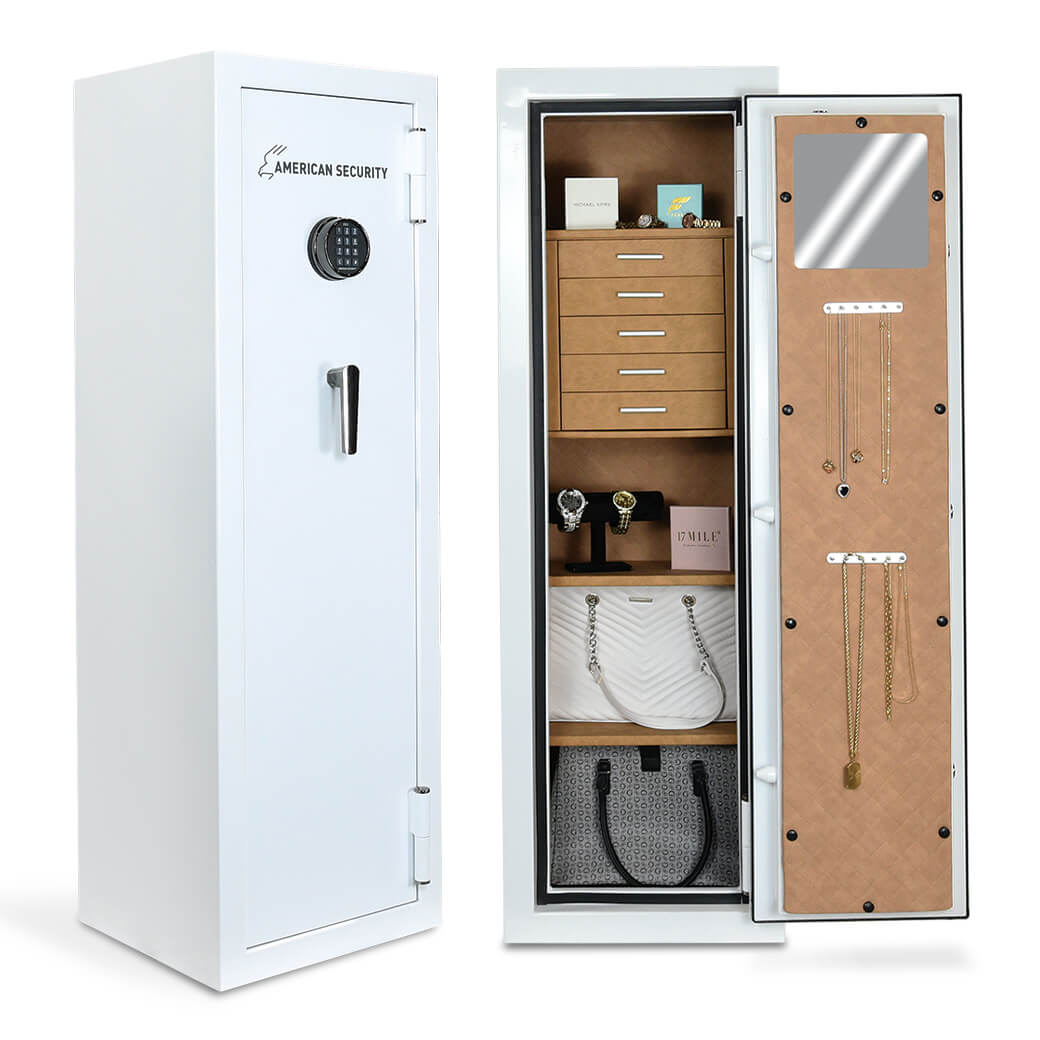

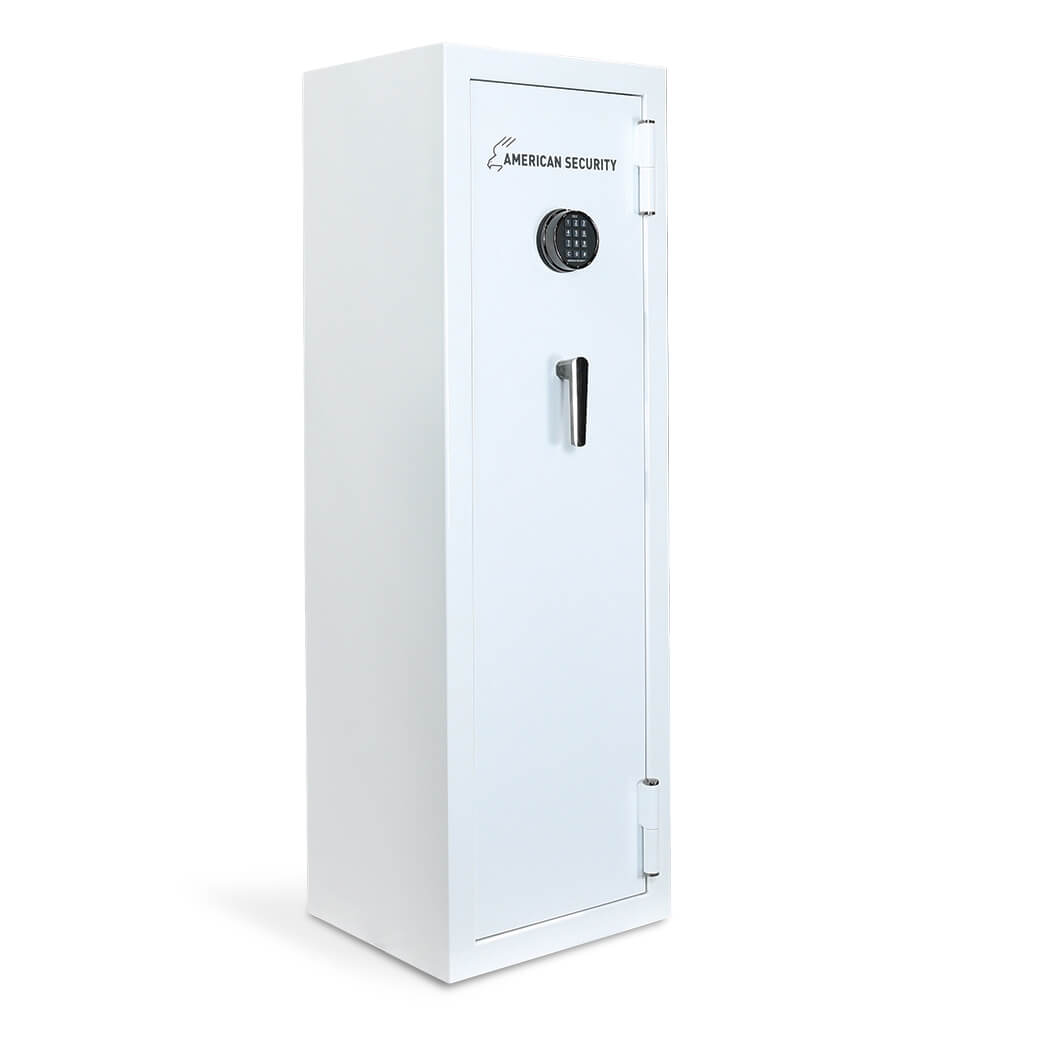

American Security JS5517 Jewelry Safe – 30-Minute Fire Rating with ESL5 Electronic Lock

The American Security JS5517 is a tall jewelry safe designed for organized storage of jewelry, family heirlooms, collectibles, documents, and other valuables. It combines a 14-gauge steel body, 3/16-inch solid steel plate door, three-way bolt work, and 30-minute fire protection at 1,200°F with a backlit ESL5 electronic lock.

Key Features

• 30-minute fire rating at 1,200°F
• 3/16-inch solid steel plate door
• 14-gauge steel body
• Three-way bolt work
• Backlit UL-listed ESL5 electronic lock
• Drill-resistant security construction
• 5.62 cubic feet of interior capacity

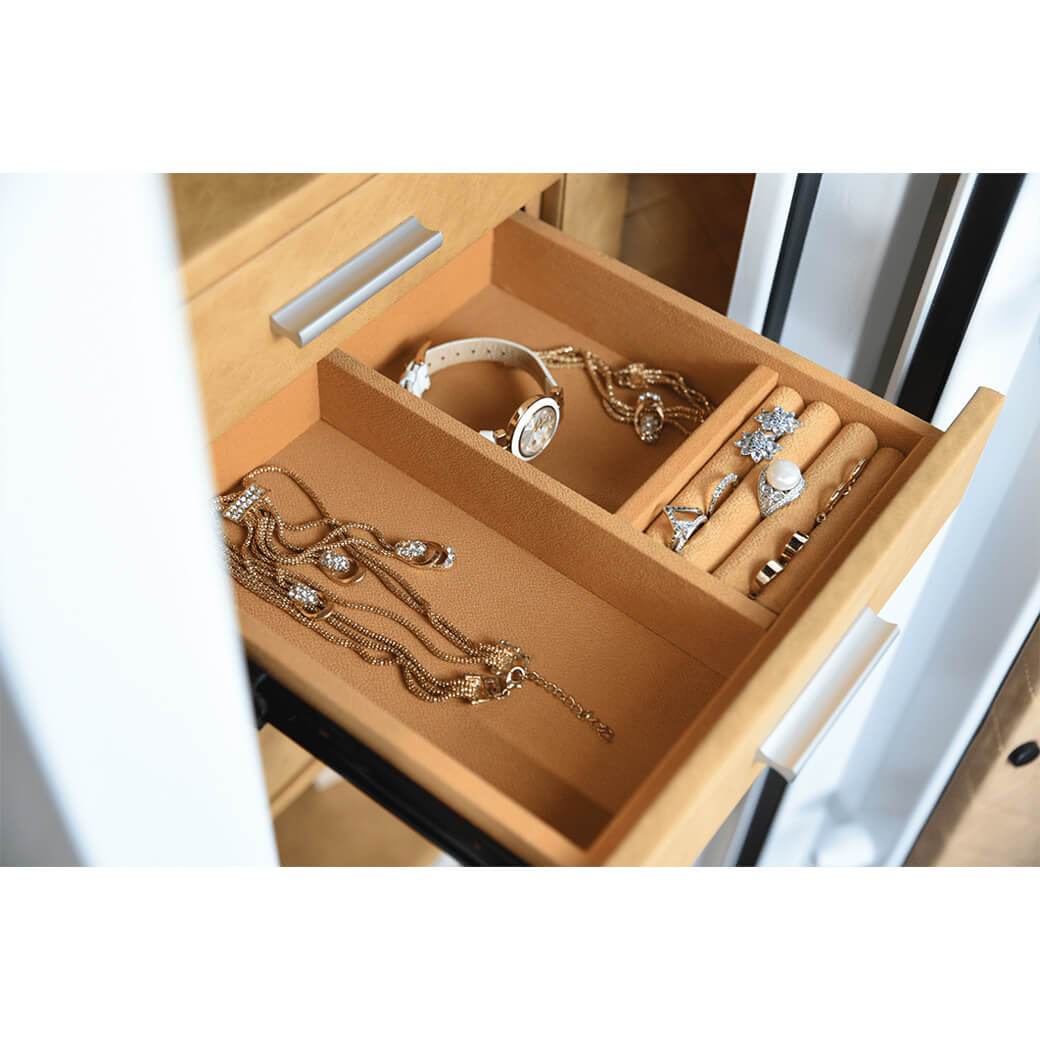

• Five interior drawers
• Quilted faux leather interior
• Necklace hangers for jewelry organization
• LED lighting with motion sensor
• Four pre-cut anchor holes
• L-shaped handle
• Semi-gloss white exterior
• Black Nickel hardware

30-Minute Fire Protection

The JS5517 is rated for 30 minutes of fire protection at 1,200°F. Drywall fire-protection panels are incorporated into the safe body to provide insulation during the manufacturer's specified fire test conditions.

Steel Construction and Bolt Work

The JS5517 features a 14-gauge steel body and a 3/16-inch solid steel plate door. Three-way bolt work secures the door from multiple sides, while the steel construction is designed to provide resistance against pry and drill attacks.

ESL5 Electronic Lock

The safe is equipped with a backlit UL-listed ESL5 electronic lock. The illuminated keypad provides convenient access for authorized users and is positioned on the exterior of the safe for easy operation.

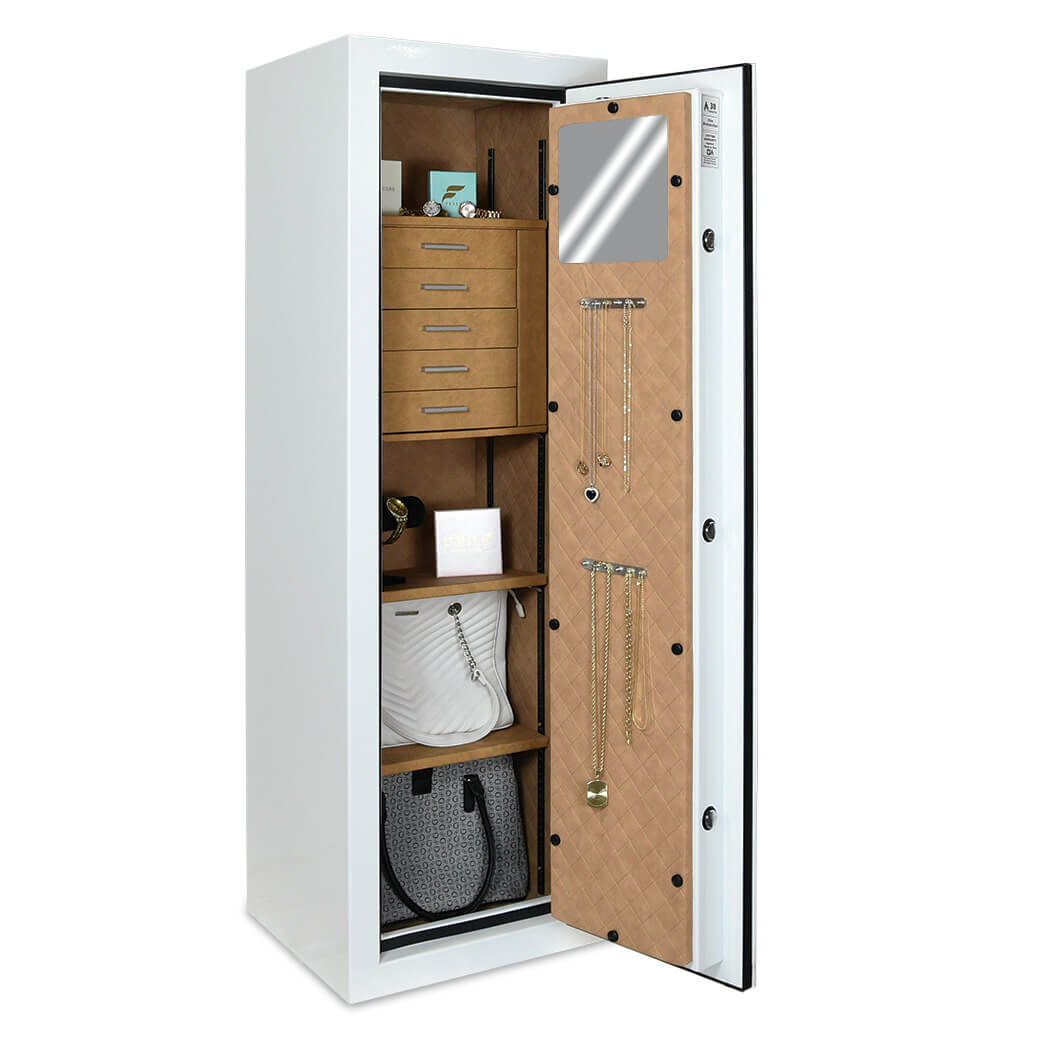

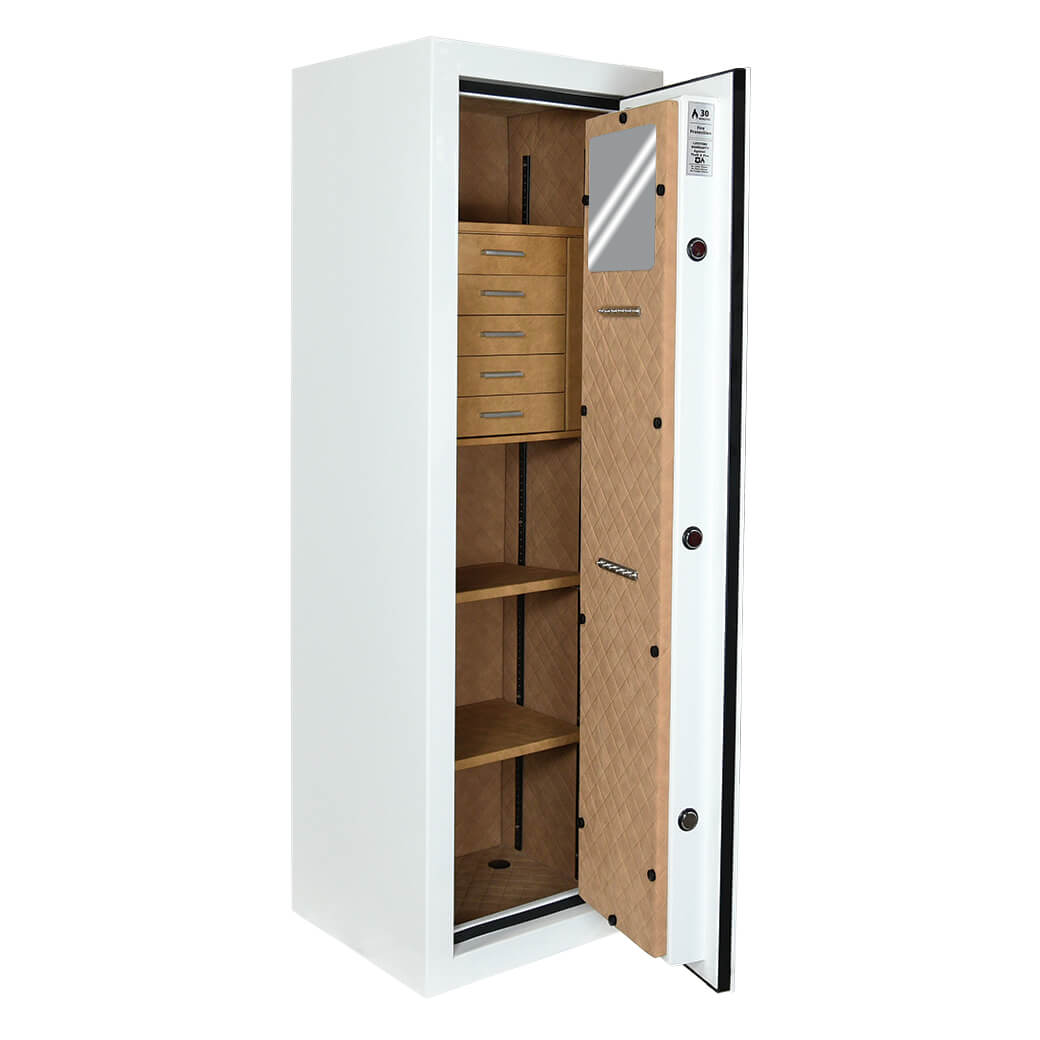

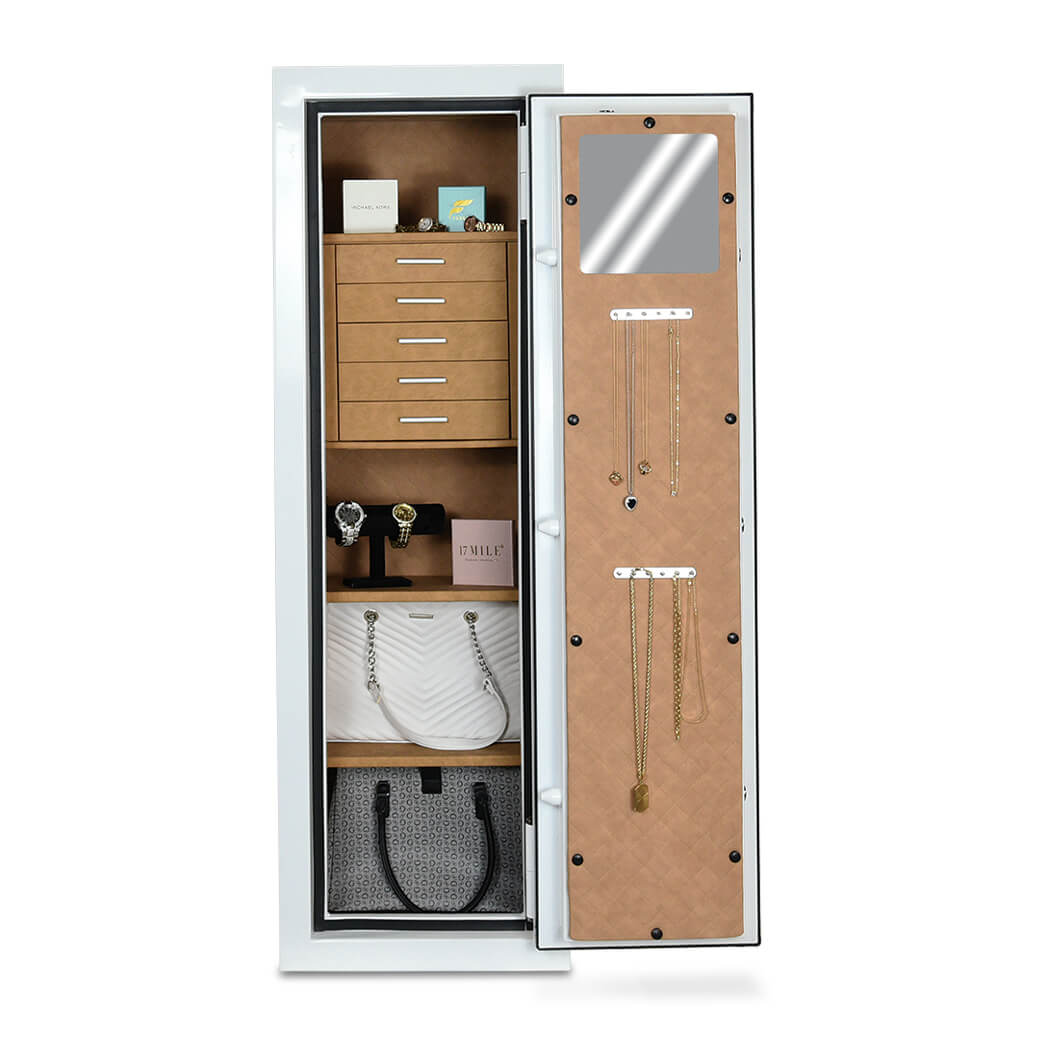

Jewelry Storage and Organization

With 5.62 cubic feet of interior capacity, the JS5517 provides a tall storage configuration for larger jewelry collections and other valuables. Five interior drawers provide dedicated storage areas, while necklace hangers help organize longer jewelry pieces.

Quilted Faux Leather Interior

The interior features a quilted faux leather finish designed to provide a suitable storage surface for jewelry and other delicate valuables. The organized drawer layout helps separate individual items and collections.

LED Interior Lighting

The JS5517 includes an LED light kit with a motion sensor. The interior lighting helps illuminate the storage area when the safe is opened.

Anchoring

Four pre-cut anchor holes are provided for securing the safe to a suitable installation surface. Proper anchoring should be selected based on the supporting structure and installation requirements.

Technical Specifications

• Model: JS5517 / JS5517E5
• Series: American Security JS Jewelry Safe Series
• Exterior Dimensions: 55" H × 17.75" W × 16" D
• Interior Dimensions: 52.5" H × 16" W × 13" D
• Door Clearance: 49.5" H × 12" W
• Body Construction: 14-gauge steel
• Door Construction: 3/16" solid steel plate
• Interior Capacity: 5.62 cu. ft.
• Lock: ESL5 electronic lock
• Lock Listing: UL Listed
• Bolt Work: Three-way
• Fire Rating: 30 minutes at 1,200°F
• Fire Protection: Drywall fire-protection panels
• Drawers: 5 interior drawers
• Interior: Quilted faux leather
• Lighting: LED motion-sensor light kit
• Necklace Storage: Necklace hangers
• Anchor Holes: 4 pre-cut
• Exterior Finish: Semi-gloss white
• Hardware Finish: Black Nickel
• Handle: L-shaped
• Weight: 286 lbs.

What's Included

• American Security JS5517 jewelry safe
• ESL5 electronic lock
• Five interior drawers
• Necklace hangers
• LED motion-sensor light kit
• Quilted faux leather interior

Ideal For

• Jewelry collections
• Family heirlooms
• Collectibles
• Important documents
• Other personal valuables

Important Notes

• The 30-minute fire rating applies to the manufacturer's specified test conditions and should not be interpreted as a guarantee that every stored item will remain undamaged in every fire.
• The safe is designed primarily for jewelry and valuables storage; actual usable capacity depends on the size and arrangement of stored items.
• The safe weighs 286 lbs., so the delivery route, installation location, floor structure, and anchoring requirements should be evaluated before installation.
• Proper anchoring should be performed using an appropriate method for the supporting surface.
