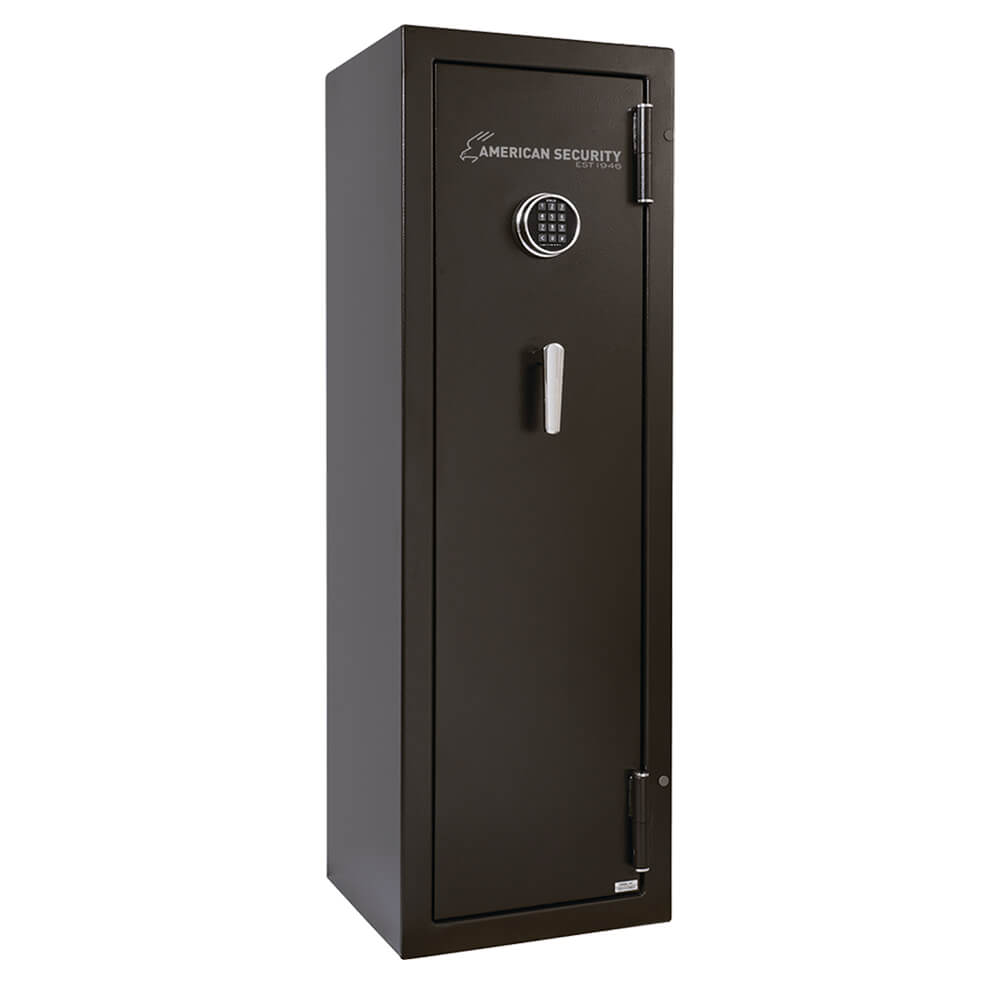

American Security TF5517 Gun Safe – 11-Gun Capacity with ESL5 Electronic Lock

The American Security TF5517 is a compact gun safe designed for firearm and personal-valuable storage. It features a 3/16-inch solid steel plate door, 14-gauge steel body, four-way bolt work, an ESL5 electronic lock, and 30-minute fire protection rated at 1,200°F. The flexible interior and included door organizer provide organized storage within a relatively narrow safe footprint.

Key Features

• 11-gun storage capacity
• 30-minute fire protection at 1,200°F
• 3/16-inch solid steel plate door
• 14-gauge steel body
• Four-way bolt work
• Eight 1-inch solid steel locking bolts
• UL-listed ESL5 electronic lock
• Drill-resistant hard plate and external relocker
• Dual door seals for fire and smoke protection
• Gray fabric interior
• Interior shelving and gun rack
• Premium door panel organizer
• Four pre-cut anchor holes
• Black Nickel L-shaped handle
• Textured Black exterior finish
• California DOJ approved firearm safety device
• Lifetime warranty against theft and fire

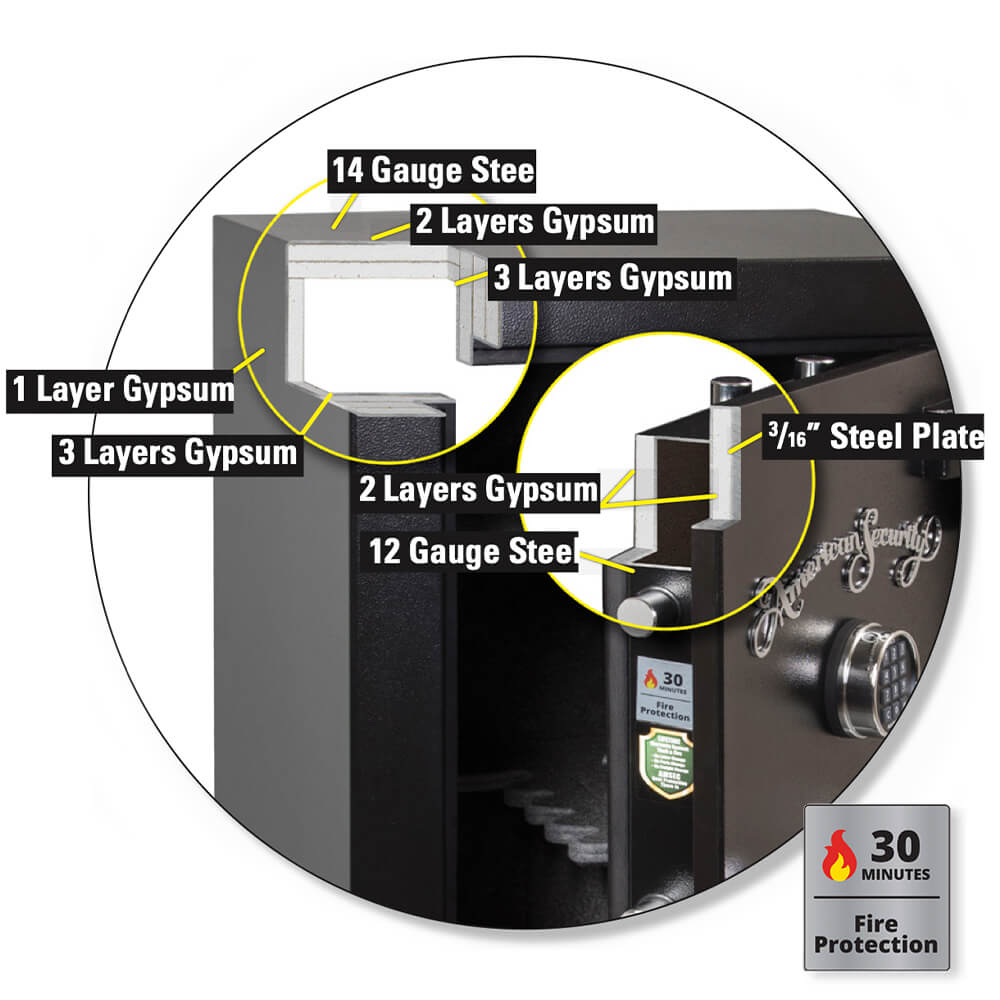

Fire Protection

The TF5517 is rated for 30 minutes of fire protection at 1,200°F. Its fire-resistant construction incorporates insulating material within the safe body, along with additional protection in the ceiling and door. Dual door seals are designed to help protect the interior from fire and smoke under the manufacturer's specified test conditions.

Steel Construction and Bolt Work

The safe uses a 3/16-inch solid steel plate door and a 14-gauge steel body. Four-way bolt work secures the door on all four sides, with eight 1-inch solid steel locking bolts. A drill-resistant hard plate and external spring-loaded relocker provide additional protection for the locking mechanism.

ESL5 Electronic Lock

The TF5517 comes standard with an ESL5 electronic lock featuring an illuminated keypad. The lock is protected by a drill-resistant hard plate and relocker. An optional mechanical combination lock is available as an upgrade or retrofit option.

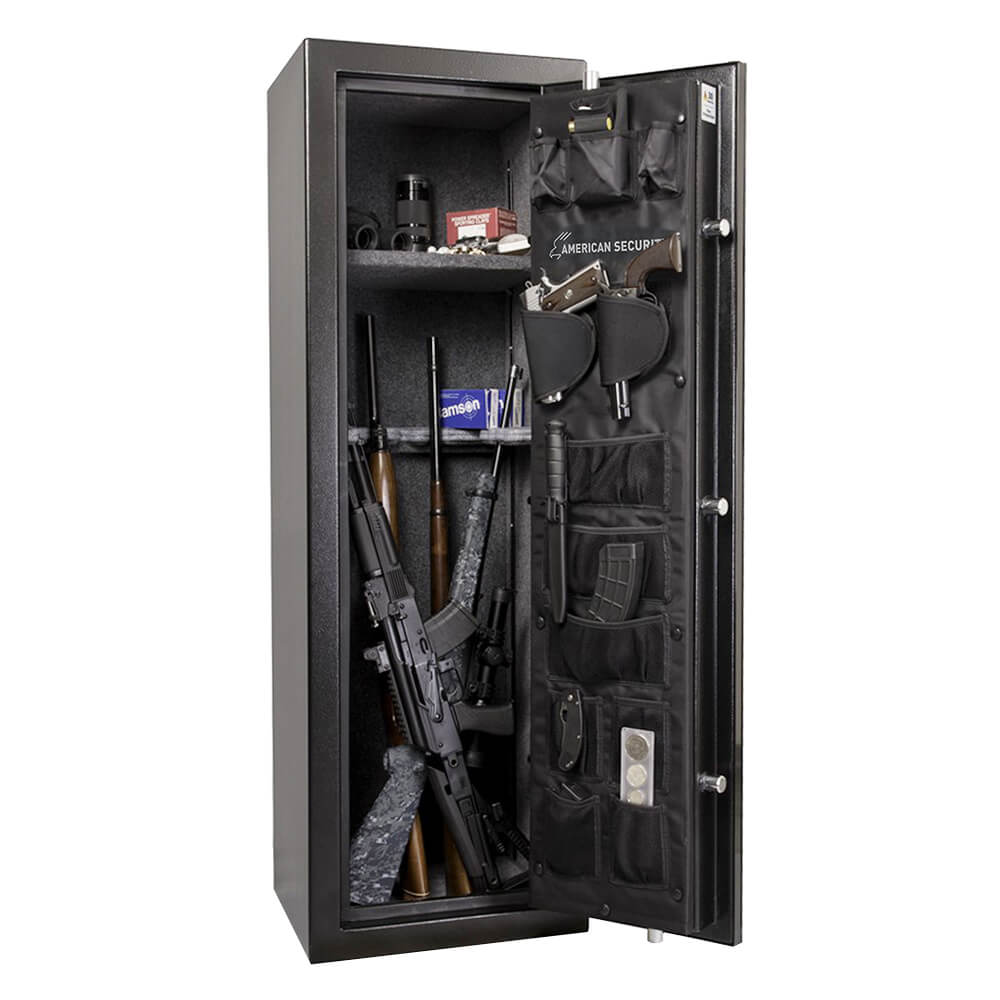

Interior Storage

The TF5517 provides storage for up to 11 firearms within the safe. Its flexible interior includes a gun rack and shelving, while the included door panel organizer provides additional storage for smaller items such as handguns, documents, and accessories.

Anchoring

Four pre-cut anchor holes are provided for securing the safe to a suitable installation surface. Mounting hardware is included according to the current product listing. The appropriate anchoring method should be selected based on the installation surface and site conditions.

Technical Specifications

• Model: TF5517
• Series: American Security TF Series
• Exterior Dimensions: 55-1/4" H × 17-3/4" W × 16" D
• Additional Handle Depth: Approximately 3"
• Interior Dimensions: 52-1/2" H × 16" W × 13" D
• Door Clearance: 49-1/2" H × 12" W
• Door Construction: 3/16" solid steel plate
• Body Construction: 14-gauge steel
• Gun Capacity: 11 firearms
• Lock: ESL5 electronic lock
• Bolt Work: Four-way
• Locking Bolts: Eight 1" solid steel bolts
• Fire Rating: 30 minutes at 1,200°F
• Fire Protection: Fireboard insulation with dual door seals
• Interior: Gray fabric
• Exterior Finish: Textured Black
• Handle: Black Nickel L-shaped handle
• Anchor Holes: 4 pre-cut holes
• Weight: 286 lbs.
• Certification/Approval: California DOJ approved firearm safety device
• Warranty: Lifetime warranty against theft and fire

What's Included

• American Security TF5517 gun safe
• ESL5 electronic lock
• Interior gun rack
• Interior shelving
• Premium door panel organizer
• Mounting hardware

Available Finish

The standard TF5517 configuration is available in a Textured Black finish with Black Nickel hardware. American Security also offers the TF5517 in a Textured White finish as a separate configuration.

Important Notes

• The 30-minute fire rating applies to the manufacturer's specified test conditions and should not be interpreted as a guarantee that all stored contents will remain undamaged in every fire.
• The stated 11-gun capacity is a manufacturer-listed capacity. Actual storage capacity can vary depending on firearm dimensions, optics, accessories, and interior configuration.
• Always follow applicable local and state requirements for firearm storage and installation.
• The safe weighs 286 lbs., so the installation location, access route, floor structure, and anchoring requirements should be evaluated before installation.
