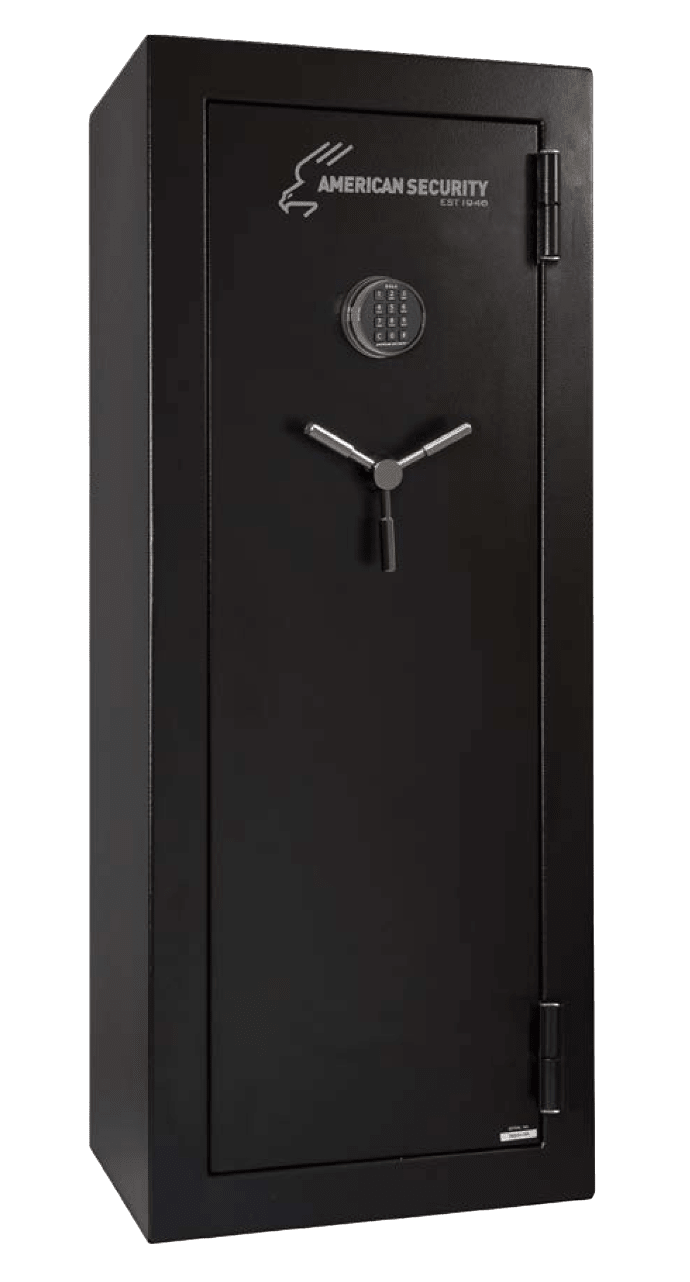

American Security TF5924E5 Gun Safe – 17-Gun Capacity with ESL5 Electronic Lock

The American Security TF5924E5 is a full-size gun safe designed for organized firearm and valuables storage. It features a 3/16-inch solid steel plate door, 14-gauge steel body, four-way bolt work, 14 chrome-plated locking bolts, and an ESL5 electronic lock with illuminated keypad. The safe also provides 30-minute fire protection at 1,200°F and includes a flexible interior with a door organizer.

Key Features

• 17-gun capacity inside the safe plus 1 additional long-gun position on the door
• 30-minute fire protection at 1,200°F
• 3/16-inch solid steel plate door
• 14-gauge steel body
• Four-way bolt work
• Fourteen 1-1/4-inch chrome-plated locking bolts
• UL-listed ESL5 electronic lock with illuminated keypad
• Drill-resistant hard plate and external spring-loaded relocker
• Dual door seals for fire and smoke protection
• Premium door organizer
• Four pre-cut anchor holes
• One pre-cut electrical access hole
• Decorative three-spoke handle
• Textured Black exterior with Black Nickel hardware
• Gray fabric interior
• Lifetime warranty against burglary and fire

30-Minute Fire Protection

The TF5924E5 has a manufacturer-rated 30-minute fire protection rating at 1,200°F. The safe uses two layers of fire protection panels in the ceiling and door and one layer in the walls. Dual door seals are designed to help protect the interior against fire and smoke under the specified test conditions.

Steel Construction and Bolt Work

The safe features a 3/16-inch solid steel plate door and a 14-gauge steel body. Four-way bolt work secures the door on all four sides, using fourteen 1-1/4-inch chrome-plated locking bolts. The locking system also incorporates a drill-resistant hard plate and an external spring-loaded relocking device.

ESL5 Electronic Lock

The TF5924E5 comes equipped with American Security's UL-listed ESL5 electronic lock with an illuminated keypad. The lock provides electronic keypad access and is protected by the safe's drill-resistant hard plate and relocking system.

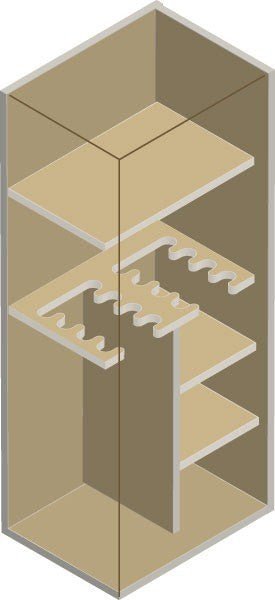

Flexible Interior Storage

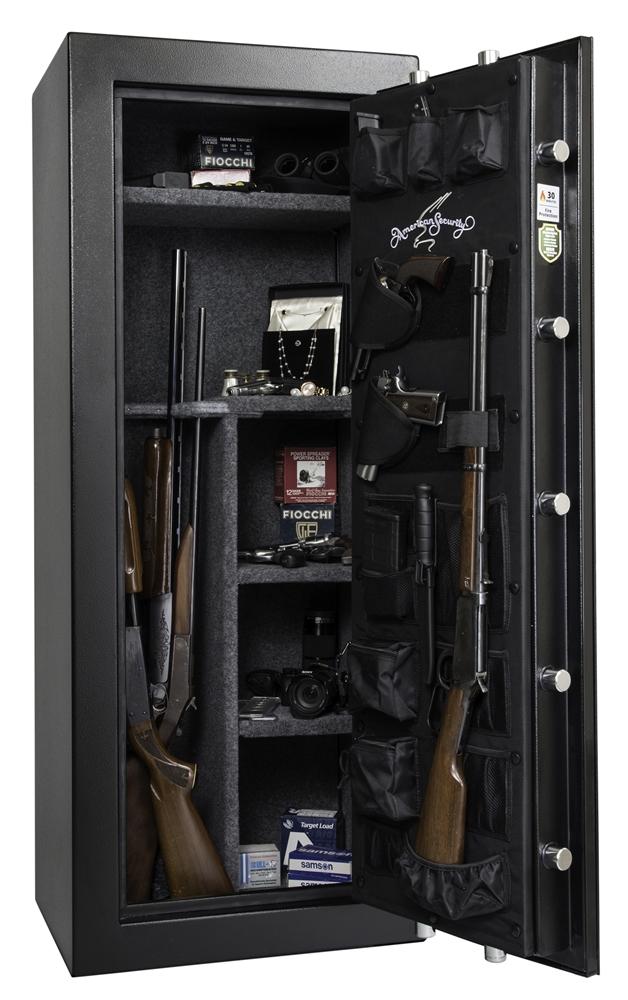

The TF5924E5 provides storage for up to 17 guns inside the safe, plus one long-gun position on the door. Its flexible interior and premium door organizer provide additional space for organizing firearms, documents, accessories, and other valuables.

Actual firearm capacity may vary depending on firearm dimensions, optics, accessories, and the interior arrangement.

Door Organizer

The included door organizer adds storage space to the inside of the safe door and provides convenient organization for smaller items and accessories while preserving the main interior storage area.

Anchoring and Electrical Access

Four pre-cut anchor holes are provided for securing the safe to an appropriate installation surface. The safe also includes one pre-cut electrical access hole for compatible electrical accessories. The appropriate anchoring method should be selected based on the supporting structure and installation requirements.

Technical Specifications

• Model: TF5924E5
• Series: American Security TF Series
• Exterior Dimensions: 59" H × 24" W × 18" D
• Additional Depth for Lock and Handle: Approximately 3"
• Interior Dimensions: 56-1/2" H × 22" W × 15" D
• Door Clearance: 52" H × 16-3/4" W
• Door Thickness: 3-5/8" overall with 3/16" steel plate
• Body Construction: 14-gauge steel
• Gun Capacity: 17 guns inside + 1 long gun on door
• Lock: ESL5 electronic lock
• Lock Listing: UL Listed
• Bolt Work: Four-way
• Locking Bolts: 14 × 1-1/4" chrome-plated bolts
• Fire Rating: 30 minutes at 1,200°F
• Fire Protection: Fire protection panels with dual door seals
• Interior: Gray fabric
• Exterior Finish: Textured Black
• Hardware Finish: Black Nickel
• Handle: Decorative three-spoke
• Anchor Holes: 4 pre-cut
• Electrical Access: 1 pre-cut hole
• Weight: 388 lbs.
• Warranty: Lifetime warranty against burglary and fire

What's Included

• American Security TF5924E5 gun safe
• ESL5 electronic lock
• Decorative three-spoke handle
• Premium door organizer
• Interior gun storage configuration
• Mounting hardware for pre-cut anchor holes

Available Finish

The standard TF5924E5 configuration features a Textured Black exterior with Black Nickel hardware and a Gray fabric interior.

Important Notes

• The 30-minute fire rating applies to the manufacturer's specified test conditions and should not be interpreted as a guarantee that every stored item will remain undamaged in every fire.
• The stated 17-gun interior capacity plus one long gun on the door is a manufacturer-listed capacity. Actual capacity can vary depending on firearm dimensions and accessories.
• The safe weighs 388 lbs. Delivery access, installation location, floor structure, and anchoring requirements should be evaluated before installation.
• Always follow applicable federal, state, and local requirements for firearm storage and installation.
