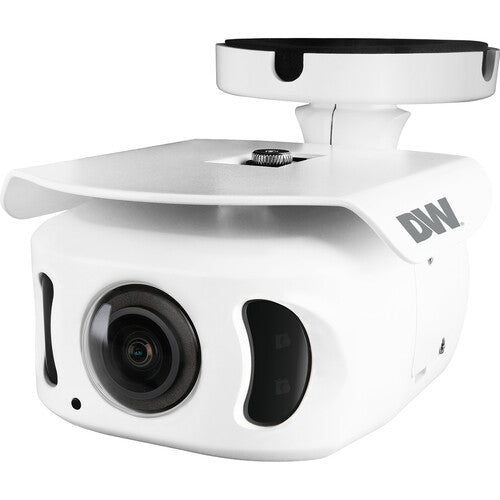

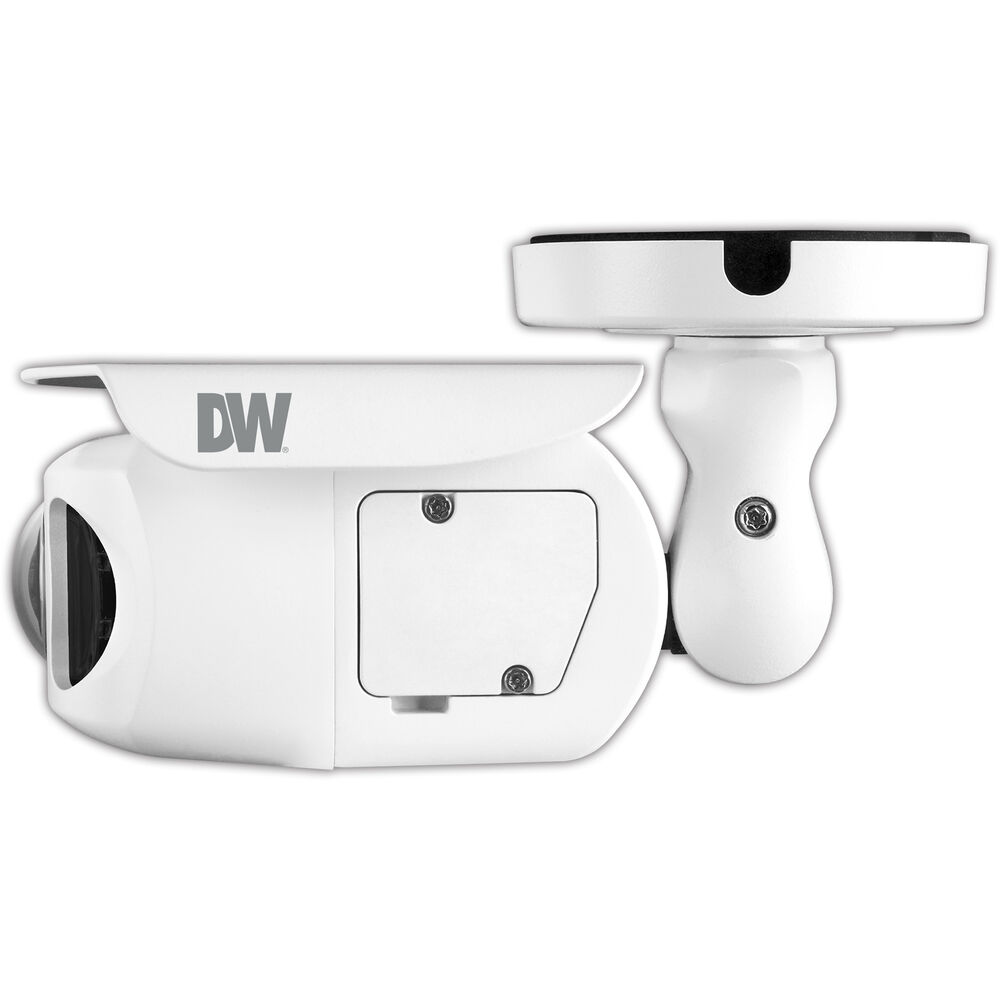

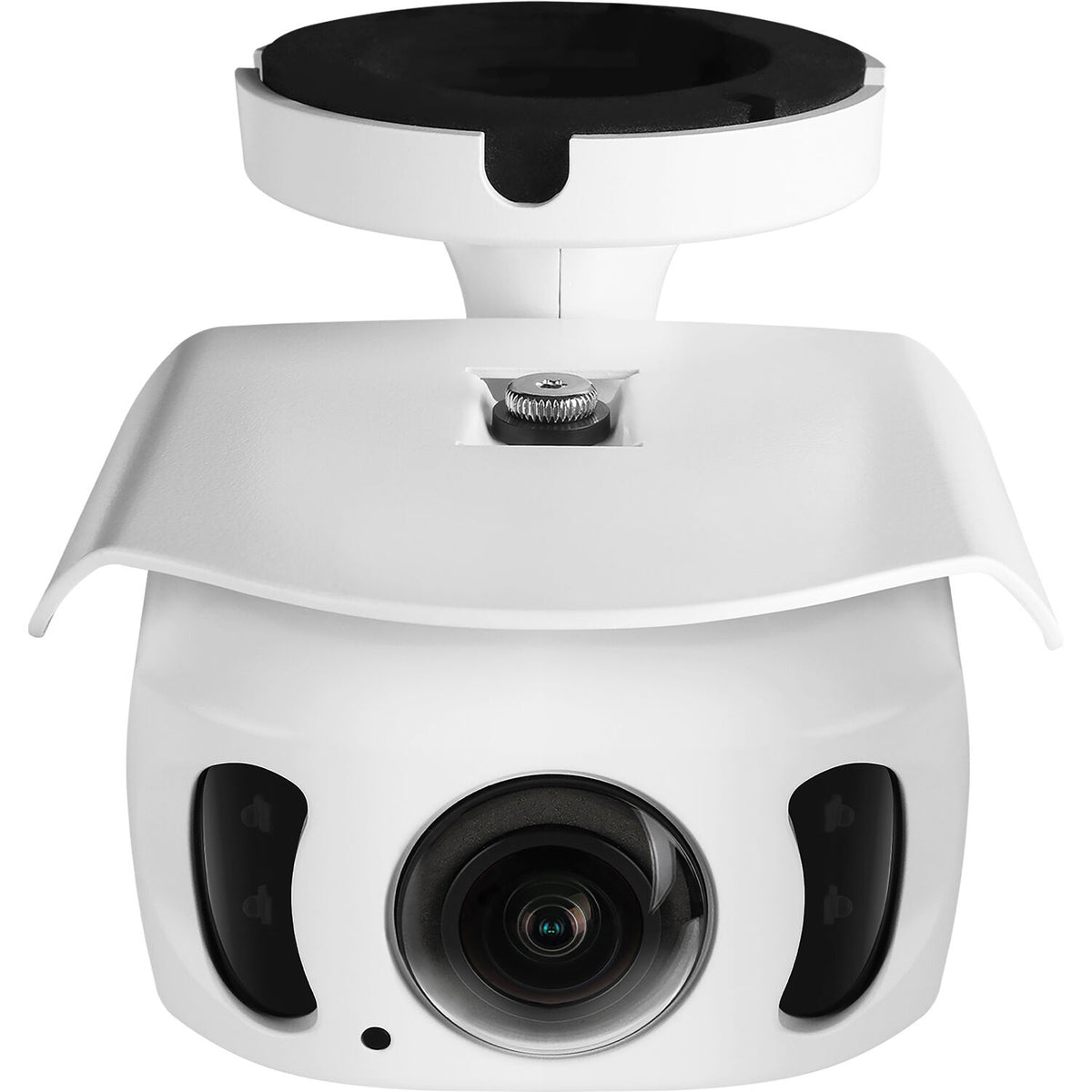

Digital Watchdog MEGApix Ai CaaS DWC-XSBC08BiC1 4K Outdoor Network Bullet Camera with 1TB Storage

The Digital Watchdog MEGApix Ai CaaS DWC-XSBC08BiC1 is a 4K outdoor network bullet camera that combines ultra-wide video coverage, edge-based AI analytics, onboard recording, and DW Spectrum CaaS technology in a single surveillance device. Its 1/1.8-inch Star-Light Plus sensor captures 4K UHD video at up to 30 fps, while the 2.3mm fixed lens provides a 175-degree horizontal field of view for broad-area monitoring.

With 1TB of built-in storage, Smart IR night vision, PoE connectivity, and an IP67-rated aluminum housing, the camera is designed for outdoor surveillance applications where wide-area coverage and local video storage are important.

Key Features

• 4K UHD Video: Captures video at up to 3840 x 2160 resolution and 30 fps.
• Ultra-Wide 175° Coverage: The 2.3mm fixed lens provides a 175-degree horizontal and 80-degree vertical field of view.
• 1TB Built-In Storage: Provides onboard storage for recorded surveillance footage, with the manufacturer specifying retention of up to 90 days depending on configuration.
• Edge AI Analytics: Built-in deep-learning analytics support object detection, people counting, vehicle-related detection, intrusion, line crossing, direction, tailgating, and other event analytics.
• Up to 40 Detection Zones: Allows separate user-created detection zones and configurable logical rules.
• DW Spectrum CaaS License: Includes a DW Spectrum CaaS license for supported serverless surveillance applications.
• Smart IR Night Vision: Integrated IR LEDs provide illumination up to 100 feet.
• Star-Light Plus Technology: Supports color video capture in low-light conditions.
• PoE Connectivity: IEEE 802.3af Power over Ethernet allows power and network data to travel through a single Ethernet cable.
• Two-Way Audio: Supports two-way audio through the camera's audio input and output connections.
• IP67 Outdoor Protection: Aluminum housing is rated IP67 for dust and water resistance.
• Impact-Resistant Housing: The camera is rated IK09 for impact resistance according to the listed specifications.
• ONVIF Profile S: Supports integration with compatible IP surveillance equipment.

Ultra-Wide 4K Surveillance

The DWC-XSBC08BiC1 uses an 8.48MP 1/1.8-inch Star-Light Plus CMOS sensor to capture 4K UHD video at up to 30 fps. Its 2.3mm fixed lens provides a 175-degree horizontal field of view and an 80-degree vertical field of view, making it suitable for monitoring broad areas from a single installation point.

AI-Powered Analytics

Built-in deep-learning analytics allow the camera to analyze activity within configured areas. Users can create up to 40 separate detection zones and configure analytics filters and logical rules for different surveillance scenarios.

Supported analytics include object detection, people counting, object counting, intrusion detection, virtual-line crossing, directional detection, entering and exiting, tailgating, dwell, appear, disappear, stopped-object detection, camera tampering, and other supported event rules.

Camera-as-a-System with 1TB Storage

The MEGApix Ai CaaS platform combines the camera, local storage, AI analytics, and supported video management functionality into one device. This configuration includes 1TB of built-in storage and a DW Spectrum CaaS license.

The camera can support up to 10 MEGApix CaaS cameras on the same network. Actual recording retention depends on video resolution, frame rate, compression settings, recording schedules, and scene activity.

A microSD/microSDHC/microSDXC card slot provides an additional local storage option when compatible memory cards are used.

Night Vision & Low-Light Performance

Smart IR illumination provides up to 100 feet of infrared illumination for nighttime monitoring. Star-Light Plus technology is designed to support color video in low-light environments, while True WDR, 3D digital noise reduction, automatic gain control, and automatic white balance help manage changing lighting conditions.

Outdoor Construction

The camera features an aluminum housing with an IP67 environmental rating and IK09 impact-resistance rating. It is designed for outdoor installation and operates from -4°F to 122°F (-20°C to 50°C) under the specified environmental conditions.

Networking & Connectivity

• IEEE 802.3af PoE
• RJ45 network connection
• ONVIF Profile S
• H.264, H.265, and MJPEG video streaming
• Three simultaneous video streams
• microSD/microSDHC/microSDXC card slot
• BNC composite video output
• Two-way audio support
• Built-in web server
• HTTPS security
• IEEE 802.1X support
• IP address filtering

Technical Specifications

• Brand: Digital Watchdog
• Series: MEGApix Ai CaaS
• Model: DWC-XSBC08BiC1
• Camera Type: Outdoor network bullet camera
• Architecture: Camera-as-a-System (CaaS)
• Image Sensor: 1/1.8" Star-Light Plus CMOS
• Sensor Resolution: 8.48MP
• Maximum Resolution: 3840 x 2160
• Maximum Frame Rate: 30 fps
• Lens: 2.3mm fixed
• Maximum Aperture: f/2.8
• Horizontal Field of View: 175°
• Vertical Field of View: 80°
• Night Vision: IR illumination up to 100 ft
• Internal Storage: 1TB
• Memory Card: microSD/microSDHC/microSDXC
• Video Compression: H.264, H.265, MJPEG
• Streaming: Up to 3 streams
• Audio: Two-way audio
• PoE: IEEE 802.3af
• Power Consumption: 9.2W via PoE
• Environmental Rating: IP67
• Impact Rating: IK09
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Startup Temperature: -40°F (-40°C)
• Material: Aluminum
• Dimensions: 5" W x 3.8" H x 8.8" D
• Weight: 2 lbs
• Certifications: CE, FCC, NDAA, RoHS, TAA, UL
• Warranty: Limited 5-year manufacturer warranty

What's Included

• Digital Watchdog MEGApix Ai CaaS DWC-XSBC08BiC1 4K Outdoor Bullet Camera
• Mounting Template
• Test Video Cable
• Waterproof Cap and Rubber Rings
• 4 Screws and Plastic Anchors
• Star Wrench T10 and T20
• Moisture Absorber and Guide
• Limited 5-Year Manufacturer Warranty

Ideal Applications

The DWC-XSBC08BiC1 is well suited for commercial properties, retail spaces, warehouses, parking areas, entrances, building exteriors, and other outdoor surveillance locations requiring broad-angle 4K video, AI analytics, and onboard recording.
