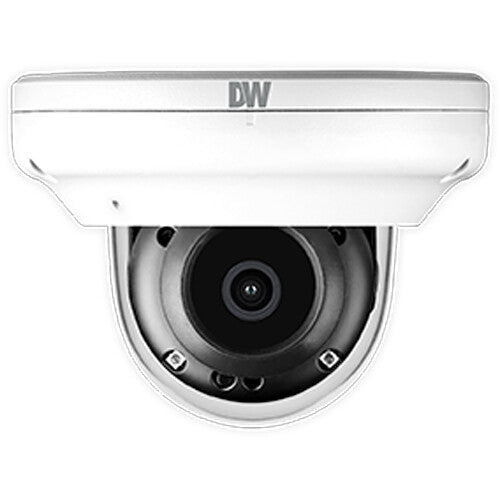

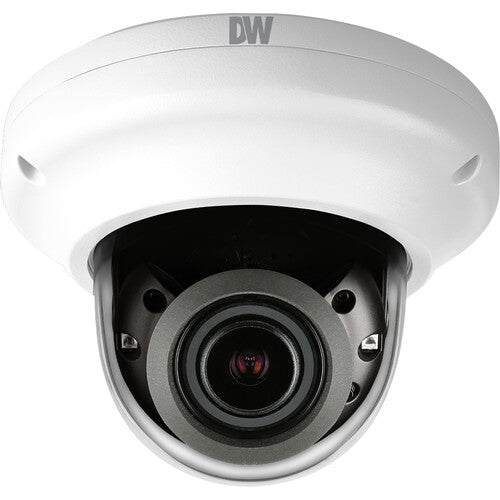

Digital Watchdog MEGApix Ai CaaS DWC-XSDE08MiC1 4K Outdoor Network Dome Camera with 1TB Storage

The Digital Watchdog MEGApix Ai CaaS DWC-XSDE08MiC1 is a 4K outdoor network dome camera that combines high-resolution video, edge-based AI analytics, onboard recording, and DW Spectrum video management in a single camera system. Its serverless CaaS architecture is designed to provide video surveillance without requiring a separate recording server for the camera.

The camera features a 4K 1/2.8-inch Star-Light Plus CMOS sensor, a motorized 2.7-13.5mm varifocal lens, Smart IR night vision up to 100 feet, and 1TB of built-in storage. DW Spectrum IPVMS and the required CaaS license are preloaded for supported configurations, with automatic installation and licensing when the camera is powered on.

Key Features

• 4K UHD Video: Captures video at up to 3840 x 2160 resolution at 30 fps.
• 1TB Built-In Storage: Provides onboard local storage for recorded surveillance video.
• Edge AI Analytics: Uses deep-learning object detection to identify and analyze people, vehicles, and other objects.
• Up to 40 Detection Zones: Allows users to configure multiple detection areas and logical rules for surveillance events.
• DW Spectrum Preloaded: Includes DW Spectrum IPVMS and a CaaS license for supported serverless surveillance applications.
• Motorized Varifocal Lens: The 2.7-13.5mm lens provides remote zoom and focus adjustment.
• Smart IR Night Vision: Integrated IR LEDs provide night vision up to 100 feet.
• Two-Way Audio: Built-in microphone and audio output support two-way audio applications.
• PoE Connectivity: Supports IEEE 802.3af Power over Ethernet for power and network connectivity through a single cable.
• IP67 Protection: The enclosure is rated IP67 for dust and water resistance.
• IK10 Impact Resistance: The vandal-resistant housing is rated IK10 for impact protection.
• CleanView Dome Coating: Hydrophobic coating helps repel water, dust, and grease from the dome surface.
• ONVIF Profiles S and T: Supports integration with compatible surveillance equipment.

Camera-as-a-System Architecture

The MEGApix Ai CaaS platform combines the camera, local storage, edge analytics, and video management functions into one device. With DW Spectrum IPVMS preloaded, the camera can operate as a standalone surveillance solution or be integrated with other supported DW Spectrum systems and CaaS cameras.

The system supports automatic installation and licensing when powered on, helping simplify initial deployment without requiring a separate external recording server for the camera.

4K Imaging & Varifocal Lens

The 4K sensor records video at up to 3840 x 2160 resolution and 30 fps. The 2.7-13.5mm motorized varifocal lens provides a horizontal field of view from 90.3° to 33.1°, allowing the camera's framing and focal length to be adjusted remotely.

The lens also features autofocus, while Star-Light Plus technology supports color imaging in low-light environments.

AI Deep Learning Analytics

The camera includes edge-based deep-learning analytics designed to detect and track objects within the camera's field of view. Users can configure up to 40 detection zones and apply different analytics filters and logical rules.

Supported analytics include object detection, people counting, vehicle detection, intrusion detection, line crossing, direction detection, entering and exiting, tailgating, dwell, abandoned objects, removed objects, and camera tampering.

Onboard Recording

The integrated 1TB storage provides local recording directly within the camera. Digital Watchdog specifies support for up to 90 days of retained video under applicable recording configurations.

Actual recording retention varies depending on resolution, frame rate, compression, recording schedules, analytics settings, and the amount of video activity.

The camera also includes a microSD/microSDHC/microSDXC card slot for additional local storage options.

Night Vision & Outdoor Protection

Smart IR illumination provides up to 100 feet of infrared night vision. The aluminum and polycarbonate enclosure is rated IP67 for outdoor environmental protection and IK10 for impact resistance.

The camera operates from -4°F to 122°F (-20°C to 50°C) at 10% to 90% humidity.

Networking & Connectivity

• IEEE 802.3af PoE
• RJ45 network connection
• ONVIF Profile S and T
• H.264, H.265, and MJPEG streaming
• Two simultaneous video streams
• Built-in web server
• HTTPS security
• IEEE 802.1X support
• IP address filtering
• Built-in microphone
• Audio output
• BNC composite video output

Technical Specifications

• Brand: Digital Watchdog
• Series: MEGApix Ai CaaS
• Model: DWC-XSDE08MiC1
• Camera Type: Outdoor network dome camera
• Architecture: Camera-as-a-System (CaaS)
• Image Sensor: 1/2.8" Star-Light Plus CMOS
• Effective Resolution: 8MP
• Maximum Resolution: 3840 x 2160
• Maximum Frame Rate: 30 fps
• Lens: 2.7-13.5mm motorized varifocal
• Maximum Optical Zoom: 5x
• Horizontal Field of View: 90.3° to 33.1°
• Vertical Field of View: 49° to 18.9°
• Maximum Aperture: f/1.4
• Night Vision: IR up to 100 ft
• Storage: 1TB internal storage
• Memory Card: microSD/microSDHC/microSDXC
• Video Compression: H.264, H.265, MJPEG
• Audio: Two-way audio
• Microphone: Built-in
• PoE: IEEE 802.3af
• Power: PoE or 12VDC
• Environmental Rating: IP67
• Impact Rating: IK10
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Dimensions: 4.9" W x 3.6" H
• Weight: 1.15 lbs
• Certifications: CE, FCC, NDAA, TAA, UL
• Warranty: Limited 5-year manufacturer warranty

What's Included

• Digital Watchdog MEGApix Ai CaaS DWC-XSDE08MiC1 Camera
• Star Wrench T-20
• Mounting Bolt and Screws
• Test Monitor Cable
• Moisture Absorber and Installation Guide
• 2 Screws and Plastic Anchors
• RJ45 Installation Tool
• Mounting Template
• Grommet
• Limited 5-Year Manufacturer Warranty

Ideal Applications

The DWC-XSDE08MiC1 is suited for commercial properties, offices, retail locations, warehouses, parking areas, entrances, and other outdoor surveillance installations where 4K video, onboard recording, and AI-based detection are useful.
