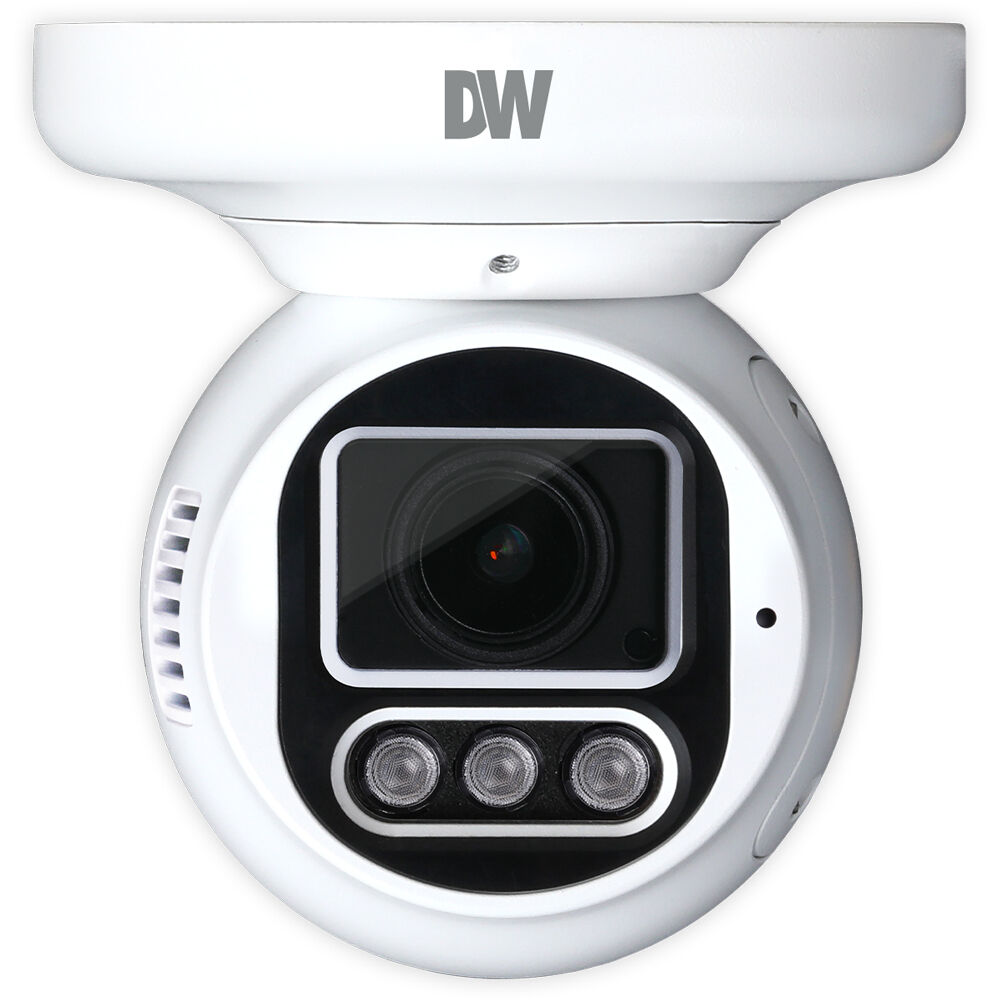

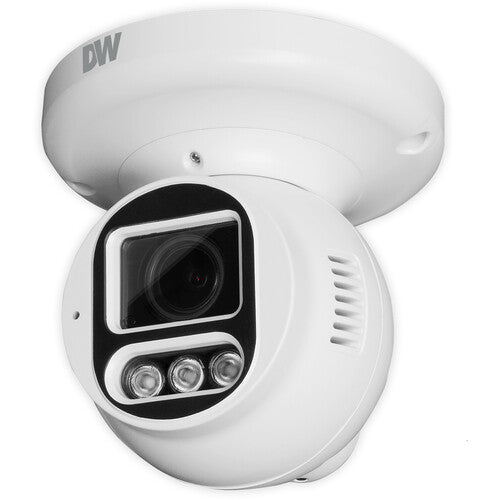

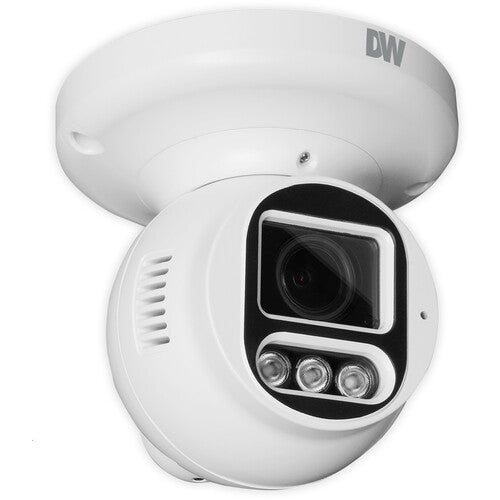

Digital Watchdog MEGApix Ai CaaS DWC-XSTD05MFC1 5MP Outdoor Network Turret Camera with 1TB Storage

The Digital Watchdog MEGApix Ai CaaS DWC-XSTD05MFC1 is a 5MP outdoor network turret camera designed as an all-in-one surveillance solution. It combines video recording, edge-based AI analytics, onboard storage, audio, and active deterrence features in a single camera. The 1TB internal storage supports up to 90 days of intelligent recording, while the motorized 2.7-12mm varifocal lens provides flexible coverage for different installation environments.

Key Features

• 5MP resolution up to 2592 x 1944 at 30 fps
• 1TB built-in storage for onboard video recording
• Up to 90 days of intelligent video storage, depending on recording configuration
• 2.7-12mm motorized varifocal lens with autofocus
• 89.9° to 31.5° horizontal field of view
• White LED illumination up to 90 feet
• Red and blue flashing LEDs for active deterrence
• Built-in microphone and speaker for two-way audio
• Edge AI detection and object classification
• Up to 40 user-defined detection zones
• MicroSD/microSDHC/microSDXC card support
• PoE+ connectivity for power and data over a single network cable
• ONVIF Profile S and T support
• IP67 weather-resistant and IK10 impact-resistant enclosure
• NDAA and TAA compliant

5MP Video with Motorized Varifocal Lens

The camera uses a 1/2.8-inch CMOS sensor to capture 2592 x 1944 video at up to 30 frames per second. Its 2.7-12mm motorized varifocal lens allows the viewing angle and focus to be adjusted remotely, with a horizontal field of view ranging from 89.9° to 31.5°.

AI Video Analytics

Built-in edge AI analytics can identify and classify objects within configured detection areas. Supported analytics include object detection, object counting, people detection, abandoned and removed objects, intrusion detection, directional detection, entering and exiting, tailgating, virtual-line crossing, motion detection, and camera tampering.

The camera supports up to 40 detection zones, allowing analytics to be configured for specific areas within the camera's field of view.

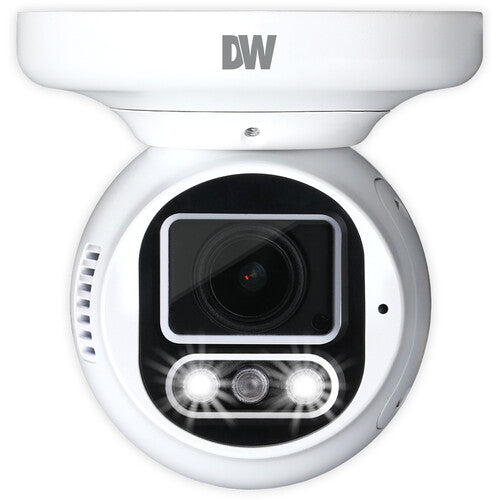

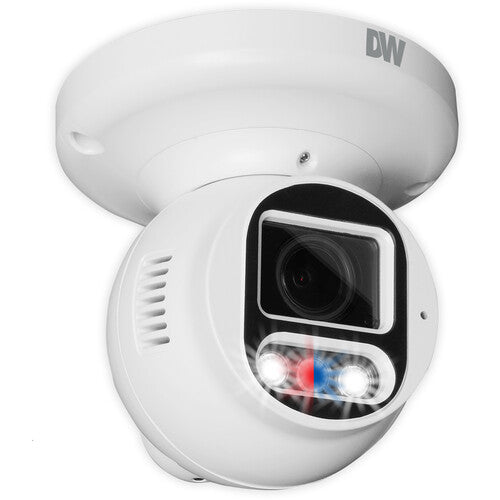

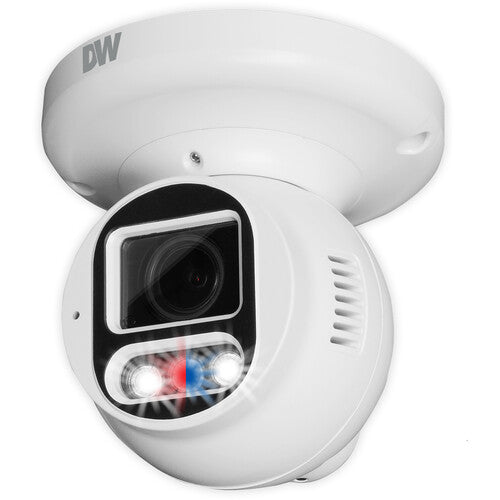

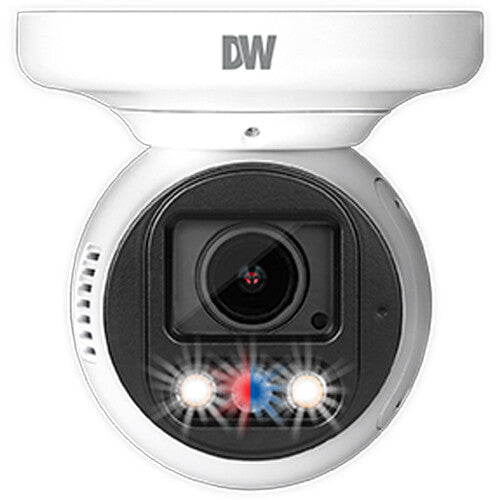

Active Deterrence and Two-Way Audio

The DWC-XSTD05MFC1 combines white LED illumination with red and blue flashing LEDs for active visual deterrence. A built-in microphone and speaker also support two-way audio communication.

1TB Onboard Storage and CaaS Architecture

As a MEGApix Ai CaaS camera, the DWC-XSTD05MFC1 incorporates recording, analytics, and management capabilities directly into the camera. Its 1TB internal storage can retain up to 90 days of intelligent recording, depending on system configuration and recording activity. A microSD/microSDHC/microSDXC card slot is also available for additional storage options.

Network and System Integration

The camera supports PoE+ 802.3at, allowing power and network connectivity through a single Ethernet cable. ONVIF Profiles S and T provide compatibility with supported open-platform surveillance systems. The camera also includes pre-loaded DW Spectrum IPVMS software for its CaaS configuration.

Outdoor Construction

The aluminum and polycarbonate housing is rated IP67 for protection against dust and water exposure and IK10 for impact resistance. The camera is designed to operate in temperatures from -4°F to 122°F (-20°C to 50°C) with 10% to 90% relative humidity.

Technical Specifications

• Camera Type: Outdoor network turret camera
• Model: DWC-XSTD05MFC1
• Image Sensor: 1/2.8-inch CMOS
• Effective Resolution: 5MP
• Maximum Resolution: 2592 x 1944
• Maximum Frame Rate: 30 fps
• Lens: 2.7-12mm motorized varifocal
• Maximum Optical Zoom: 4.4x
• Horizontal Field of View: 89.9° to 31.5°
• Vertical Field of View: 64.5° to 23.6°
• Maximum Aperture: f/1.3
• Video Compression: H.264, H.265, MJPEG
• Streams: 3
• Storage: 1TB internal storage
• Memory Card: microSD/microSDHC/microSDXC
• Illumination: White LED up to 90 ft
• Audio: Built-in microphone and speaker, two-way audio
• PoE: PoE+ 802.3at
• Power Consumption: 15.8W via PoE; 12W via 12VDC
• Alarm I/O: 1 input / 1 output
• Security: Digest Authentication, HTTPS, IEEE 802.1X, IP address filtering
• Environmental Rating: IP67
• Impact Rating: IK10
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Material: Aluminum and polycarbonate
• Certifications: CE, FCC, NDAA, TAA, UL
• Dimensions: 4.9"W x 4.8"H x 4.9"D
• Weight: 1.94 lb

What's Included

• Digital Watchdog DWC-XSTD05MFC1 5MP Outdoor Network Turret Camera with 1TB Storage
• 2 Screws and Plastic Anchors
• Mounting Template
• T10 Star Wrench
• 2.0 Hexagonal Wrench
• 3 Moisture Absorbers
• Waterproof Cap and Rubber Rings

Warranty

Includes a limited 5-year manufacturer warranty.
