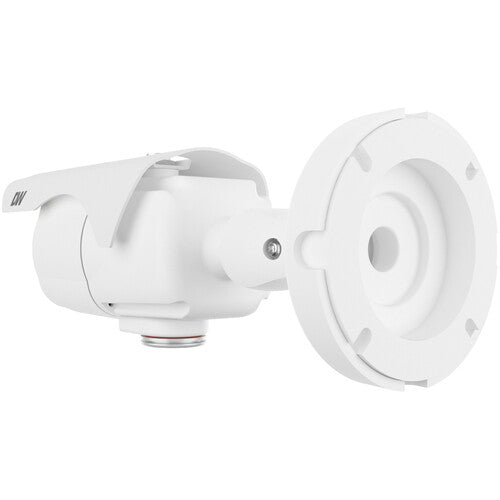

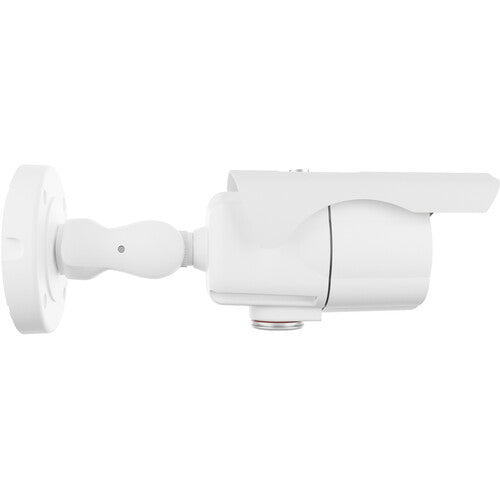

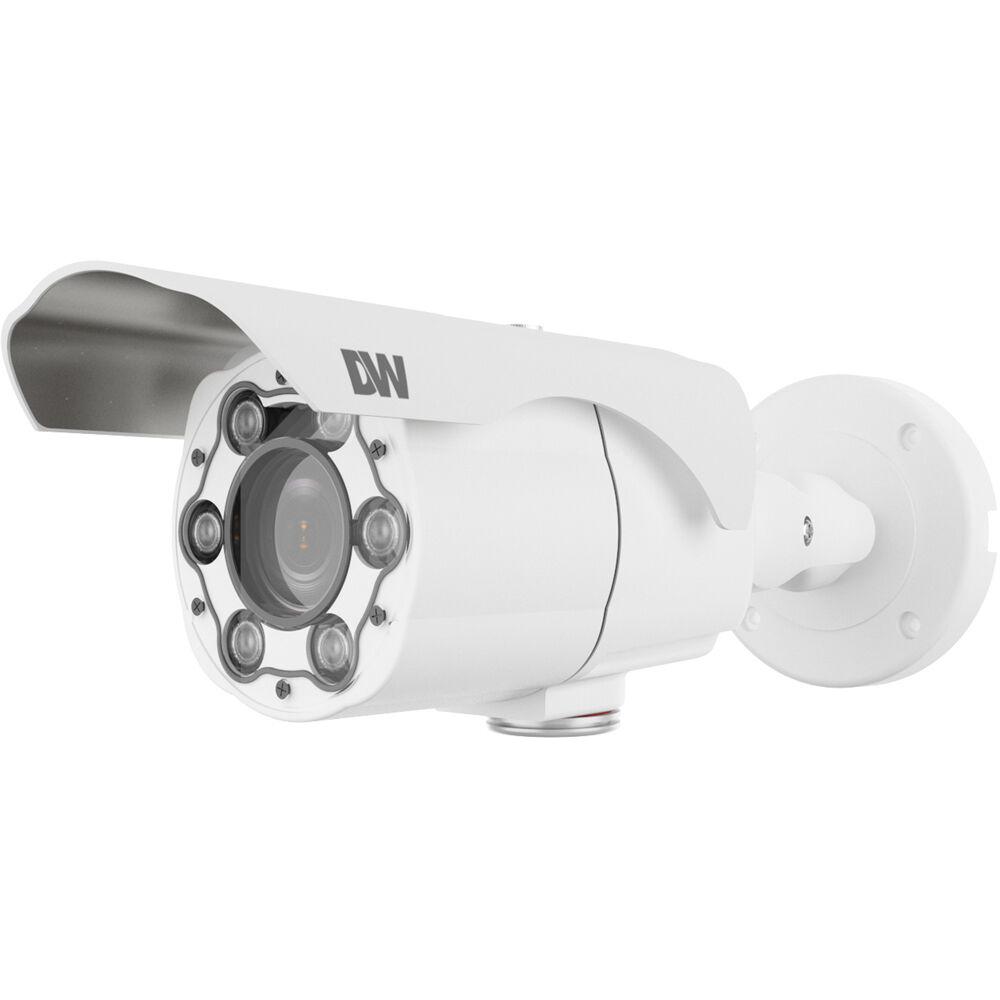

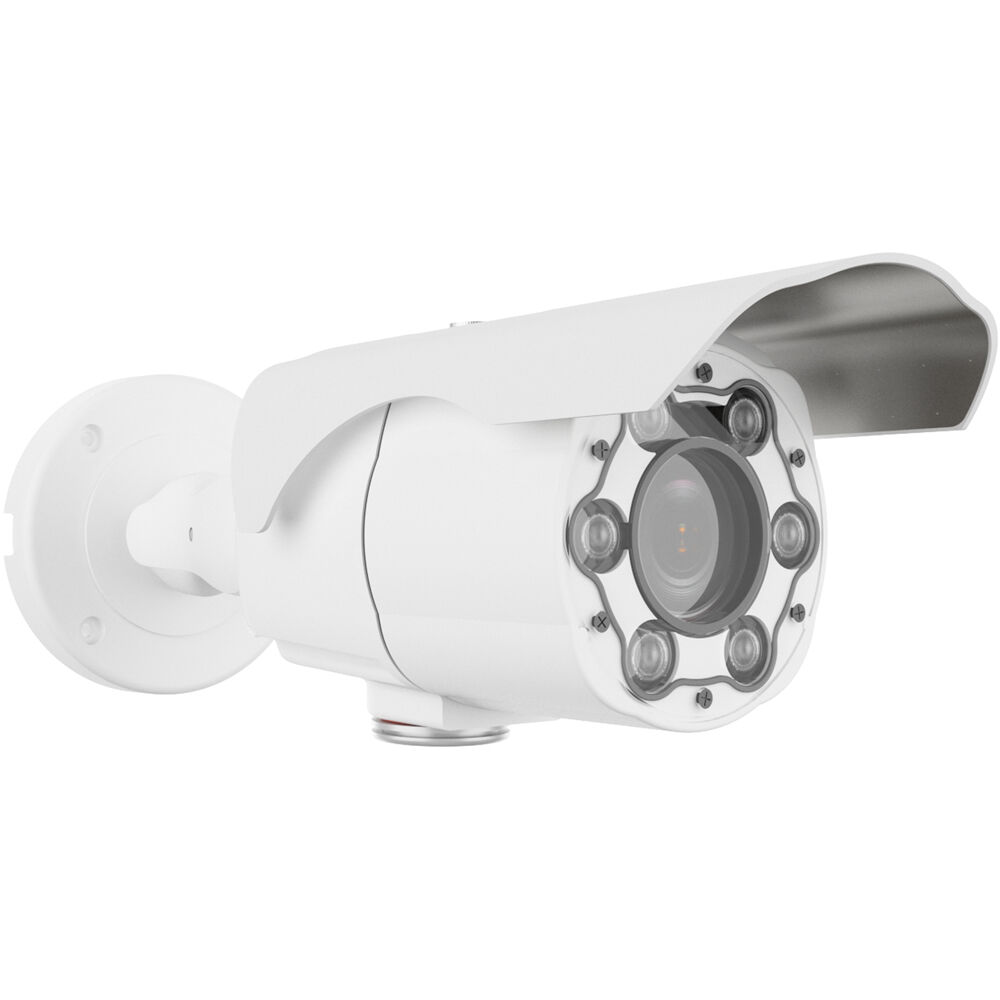

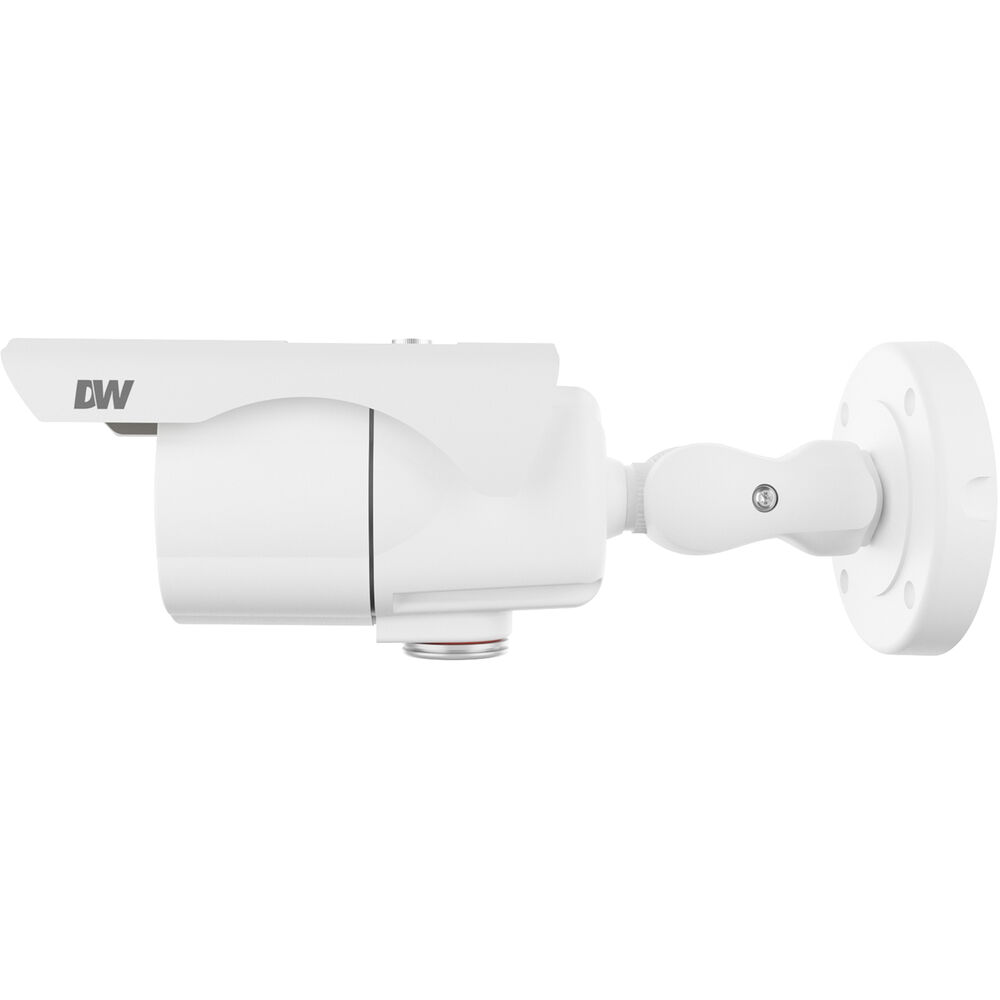

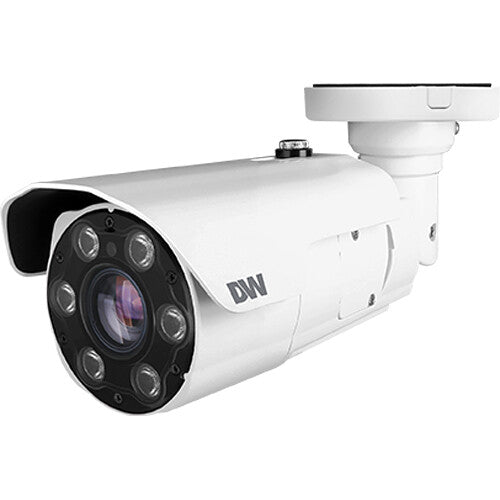

Digital Watchdog MEGApix DWC-XSBA05LiP 5MP Outdoor Network ALPR Bullet Camera

The Digital Watchdog MEGApix DWC-XSBA05LiP is a 5MP outdoor network ALPR bullet camera designed for license plate capture, vehicle detection, and video surveillance applications. With a 2592 x 1944 resolution sensor, motorized 6-50mm varifocal lens, Smart IR night vision, and built-in license plate recognition analytics, the camera is designed to capture vehicle information in a range of outdoor monitoring environments.

The camera can capture license plates from vehicles traveling at speeds of up to 75 mph, with a recognition range of up to 165 feet in daylight and up to 131 feet at night. Its 6-50mm motorized varifocal lens provides adjustable framing, while PoE+ connectivity allows power and data to be carried over a single network cable.

Key Features

• 5MP Image Resolution: Captures video at up to 2592 x 1944 resolution at 30 fps.
• Automatic License Plate Recognition: Built-in ALPR analytics can capture and read license plates from moving vehicles traveling at speeds up to 75 mph.
• Vehicle Information Detection: The camera can identify vehicle make, model, and color across numerous vehicle brands.
• Long-Range License Plate Recognition: Recognition range reaches up to 165 feet in daylight and up to 131 feet at nighttime.
• 6-50mm Motorized Varifocal Lens: Provides adjustable viewing coverage from 40.8° to 6.9° horizontally.
• Smart IR Night Vision: Integrated IR illumination provides night vision up to 130 feet.
• AI-Based Detection: Supports license plate recognition, motion detection, object detection, and vehicle detection.
• PoE+ Connectivity: Supports IEEE 802.3at PoE+ for network connectivity and power through a single cable.
• Two-Way Audio: Includes audio input and output for supported two-way audio applications.
• microSD Recording: Supports microSD, microSDHC, and microSDXC memory cards for onboard storage.
• Outdoor-Rated Housing: Aluminum enclosure is rated IP67 for dust and water resistance and IK10 for impact resistance.
• DW Spectrum Compatibility: Integrates with DW Spectrum IPVMS for supported surveillance and management applications.
• ONVIF Compatible: Supports interoperability with compatible surveillance equipment and systems.

Advanced License Plate Recognition

The MEGApix DWC-XSBA05LiP combines a 5MP image sensor with dedicated license plate recognition analytics. The system is designed to capture and extract license plate information from moving vehicles while also providing vehicle detection capabilities.

The camera supports up to 40 configurable detection zones and logical rules that can be used to help manage detection events and reduce unwanted alerts.

Motorized Varifocal Lens

The 6-50mm motorized varifocal lens allows the viewing angle to be adjusted for different installation requirements. The lens provides a horizontal field of view ranging from 40.8° to 6.9° and features autofocus for simplified setup.

Day and Night Surveillance

Smart IR illumination provides up to 130 feet of infrared night vision. The camera also includes Star-Light Plus technology, an IR cut filter, automatic gain control, wide dynamic range, 3D digital noise reduction, and automatic white balance to support image capture in changing lighting conditions.

Outdoor Construction

The camera features an aluminum housing with IP67 environmental protection and IK10 impact resistance. It is designed for outdoor installations and operates across a temperature range of -40°F to 122°F (-40°C to 50°C) at 10% to 90% humidity. The camera also supports a -40°F cold start without a heater.

Networking & Connectivity

• PoE+ 802.3at support
• RJ45 network connection
• ONVIF compliance
• H.264, H.265, and MJPEG video streaming
• Two simultaneous video streams
• microSD/microSDHC/microSDXC card slot
• Composite BNC monitor output
• Two-way audio support
• HTTPS and IEEE 802.1X security support
• IPv4/IPv6 networking

Technical Specifications

• Brand: Digital Watchdog
• Series: MEGApix Ai
• Model: DWC-XSBA05LiP
• Camera Type: Outdoor network ALPR bullet camera
• Image Sensor: 1/2.8" CMOS
• Resolution: 5MP
• Maximum Resolution: 2592 x 1944
• Maximum Frame Rate: 30 fps
• Lens: 6-50mm motorized varifocal
• Horizontal Field of View: 40.8° to 6.9°
• Vertical Field of View: 30.2° to 5.2°
• Maximum Optical Zoom: 8x
• Maximum Aperture: f/1.6
• Night Vision: IR illumination up to 130 ft
• License Plate Recognition: Yes
• Motion Detection: Yes
• Object Detection: Yes
• Vehicle Detection: Yes
• Audio: Two-way audio
• Memory Card: microSD/microSDHC/microSDXC
• PoE: PoE+ 802.3at
• Housing: Aluminum
• Environmental Rating: IP67
• Impact Rating: IK10
• Operating Temperature: -40°F to 122°F (-40°C to 50°C)
• Dimensions: 3.8" W x 3.2" H x 12.2" D
• Weight: 3 lb
• Warranty: Limited 5-year manufacturer warranty

What's Included

• Digital Watchdog MEGApix DWC-XSBA05LiP 5MP ALPR Bullet Camera
• Star Wrench T-10
• Star Wrench T-20
• Test Monitor Cable
• Moisture Absorber
• 4 Screws and Plastic Anchors
• Waterproof Cap and Rubber Rings
• PoE Injector and Power Cable
• Mounting Template

Ideal Applications

The DWC-XSBA05LiP is suited for installations where license plate recognition and vehicle monitoring are important, including parking facilities, gated entrances, access-control points, commercial properties, roadways, and other outdoor surveillance environments.
