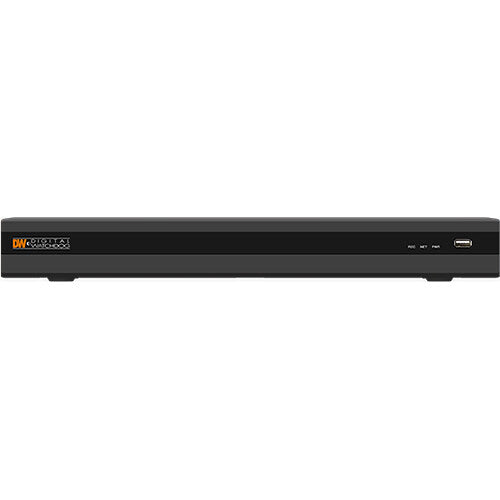

The Digital Watchdog VMAX IP G4 DW-VG4124T8P is an 8-channel PoE+ network video recorder with four additional IP camera channels, supporting up to 12 IP cameras in total. This configuration includes 4TB of internal storage and eight integrated PoE+ ports for connecting and powering compatible network cameras.
Designed for IP video surveillance systems, the VMAX IP G4 supports recording at resolutions up to 4K UHD, H.264 and H.265 video compression, ONVIF-compatible cameras, remote monitoring, smart search, and multiple recording modes. Its embedded design provides centralized recording and management for small to mid-sized surveillance installations.
Key Features
- Up to 12 IP Cameras: Provides 8 PoE-enabled channels plus 4 additional IP camera channels for a total of up to 12 cameras.
- 4TB Internal Storage: Includes a 4TB hard drive for local surveillance video recording.
- 8 Built-In PoE+ Ports: Integrated PoE+ ports provide network connectivity and power for up to eight compatible IP cameras.
- 4K Recording: Supports recording resolutions up to 3840 x 2160 (4K).
- Up to 360 fps Recording: Supports recording up to 360 fps at 4K across supported configurations.
- 80 Mbps Throughput: Provides up to 80 Mbps recording/network throughput.
- H.264 & H.265: Supports both H.264 and H.265 video compression.
- ONVIF Compatibility: Supports compatible ONVIF Profile S IP cameras.
- Multiple Recording Modes: Supports continuous, scheduled, motion detection, sensor, emergency, and pre/post-alarm recording.
- Smart Search: Includes calendar, event, thumbnail, timeline, and smart motion search functions.
- 4K Local Display: Provides True HD and VGA outputs with local display support up to 3840 x 2160.
- Remote Monitoring: Supports compatible Digital Watchdog applications and management software for remote surveillance access.

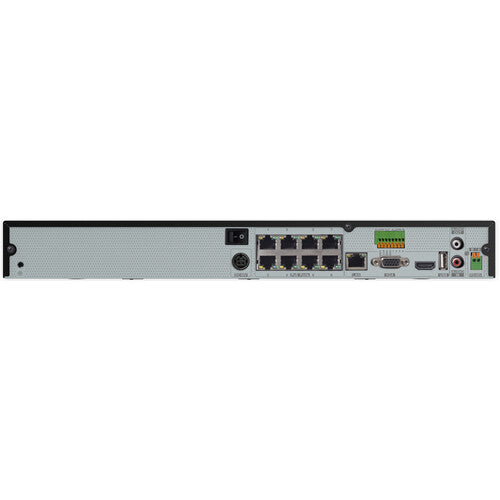

8 PoE+ Ports with 4 Additional Channels
The DW-VG4124T8P combines eight integrated PoE+ camera ports with four additional network camera channels. This allows the recorder to support up to 12 IP cameras while providing direct power and network connectivity for cameras connected to its built-in PoE+ ports.
Each PoE+ port supports up to 30W, with a total PoE power budget of 72W for the system. Additional cameras can be connected through the network using the recorder's Gigabit Ethernet connection.

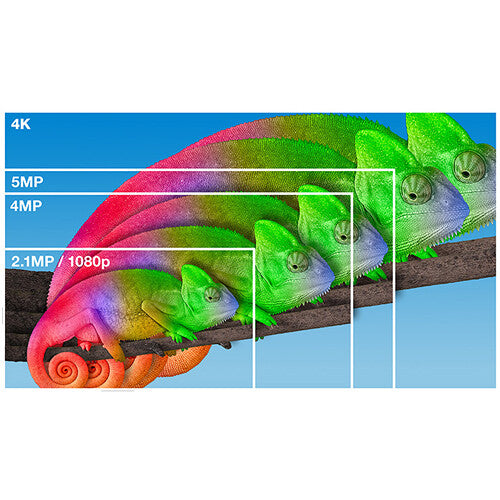

4K Video Recording
The VMAX IP G4 supports IP cameras with resolutions up to 4K UHD (3840 x 2160). The DW-VG4124T8P supports up to 360 fps recording at supported 4K configurations and provides up to 80 Mbps of throughput.
H.264 and H.265 compression support allows the recorder to work with compatible IP cameras using either compression format.
Recording & Playback
The recorder supports several recording modes, including continuous, scheduled, motion detection, sensor-triggered, emergency, and pre/post-alarm recording.
Recorded footage can be located using calendar, event, thumbnail, timeline, and smart motion search tools. Playback speeds range from 1x through higher-speed playback options up to 99x, depending on the selected playback mode.
Remote Access & Management

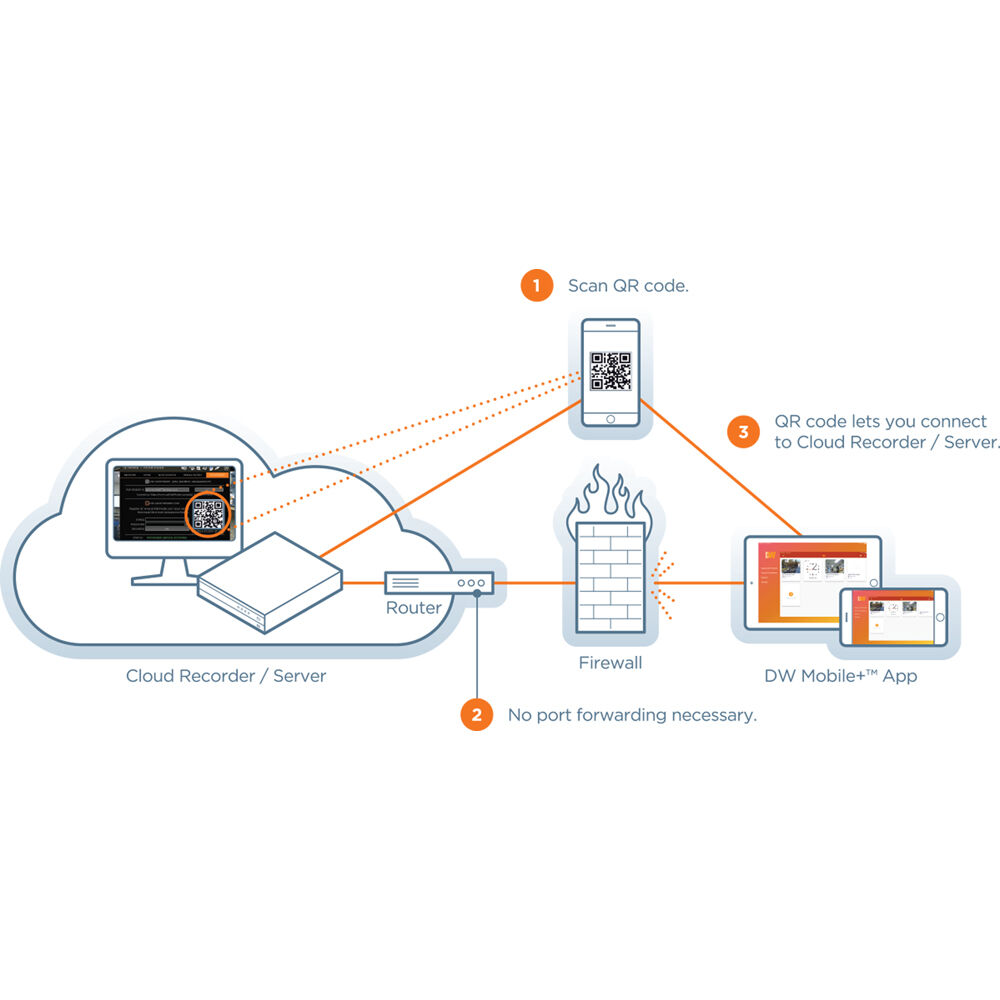

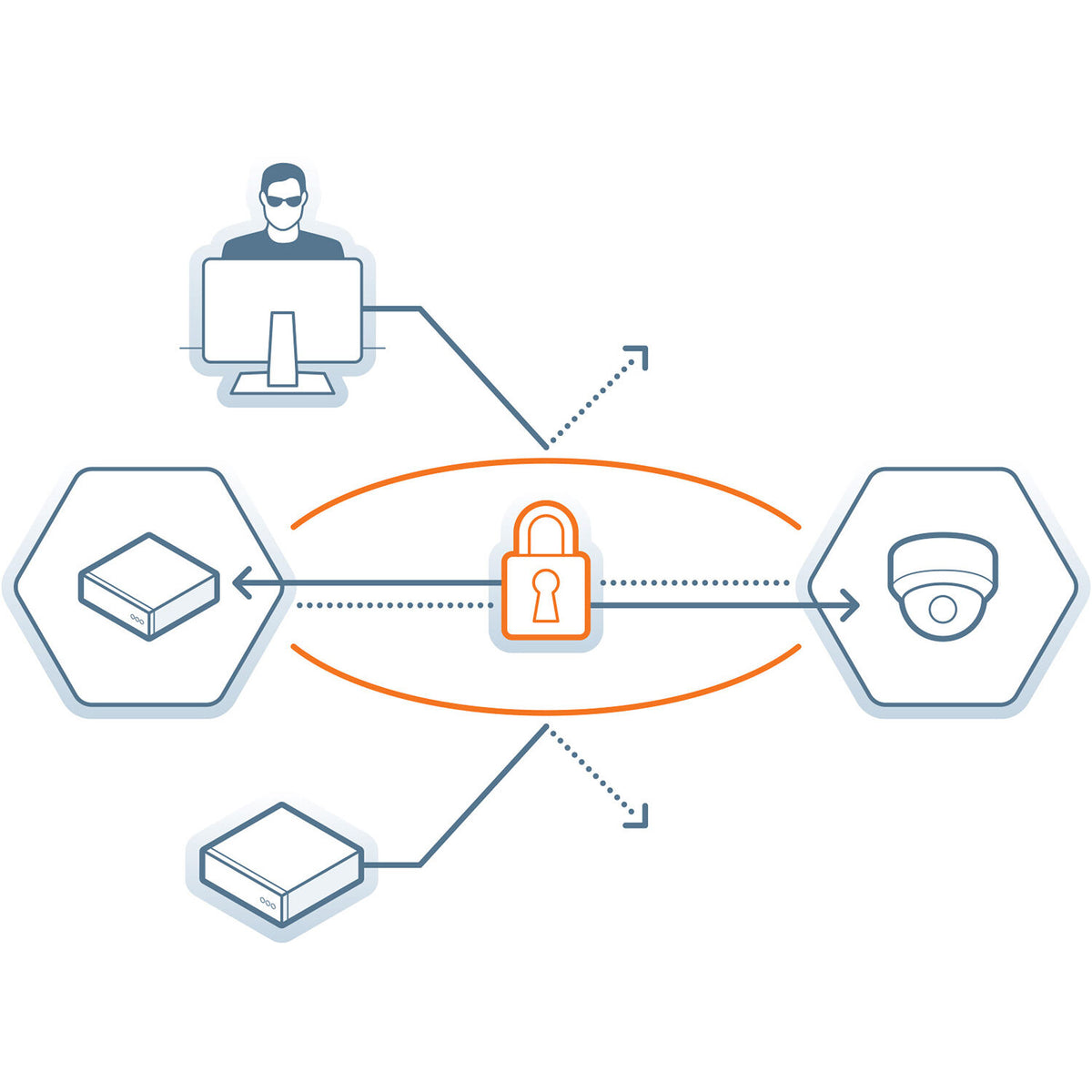

The VMAX IP G4 platform supports remote monitoring through compatible Digital Watchdog software and mobile applications. PathFinder technology provides NAT traversal for supported remote connections, while CCIP technology provides encrypted camera-to-recorder communication for supported configurations.

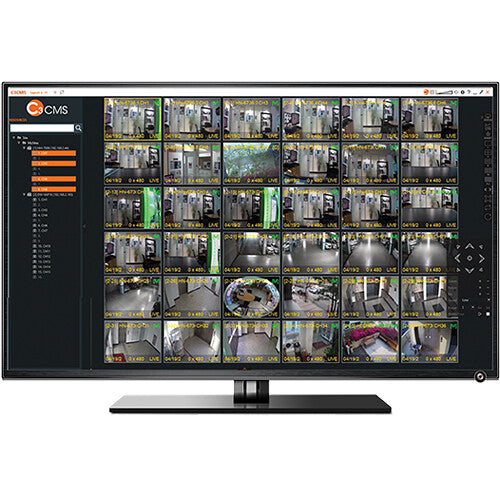

The recorder can also be integrated into larger surveillance environments using C3 Central Management Software.
Storage
This DW-VG4124T8P configuration includes a 4TB internal hard drive and one SATA hard-drive bay. Other storage configurations are available within the VMAX IP G4 DW-VG412 series.
Actual recording retention depends on the number of connected cameras, resolution, frame rate, compression settings, recording schedules, and other system settings.
Alarm, Audio & PTZ Support
- 4 alarm inputs
- 1 relay output
- 1-channel audio input
- 1-channel audio output
- RS-485 PTZ control
- ONVIF PTZ support
- Pre- and post-alarm recording
Technical Specifications
- Brand: Digital Watchdog
- Series: VMAX IP G4
- Model: DW-VG4124T8P
- Device Type: Network Video Recorder (NVR)
- PoE Camera Channels: 8
- Total Supported IP Cameras: Up to 12
- Internal Storage: 4TB
- Hard Drive Bays: 1 x SATA
- Maximum Camera Resolution: 4K (3840 x 2160)
- Maximum Recording Rate: Up to 360 fps
- Maximum Throughput: 80 Mbps
- Video Compression: H.264, H.265
- PoE Standard: IEEE 802.3at PoE+
- Maximum PoE Power Per Port: 30W
- Total PoE Power Budget: 72W
- Network Port: 1 x Gigabit Ethernet RJ45
- Video Outputs: 1 x True HD, 1 x VGA
- Audio: 1 input / 1 output
- Alarm: 4 inputs / 1 relay output
- PTZ Control: RS-485 and ONVIF
- Operating System: Embedded Linux
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Operating Humidity: 10% to 90% RH
- Dimensions: 1.77" H x 14.96" W x 10.58" D
- Warranty: 5-year limited manufacturer warranty
- Certifications: CE, FCC, NDAA, TAA
What's Included
- Digital Watchdog DW-VG4124T8P VMAX IP G4 NVR
- 4TB internal hard drive
- USB mouse
- 5-year limited manufacturer warranty
Ideal Applications
The DW-VG4124T8P is suited for commercial properties, offices, retail locations, warehouses, residential installations, parking areas, and other surveillance applications requiring centralized recording for multiple IP cameras.
