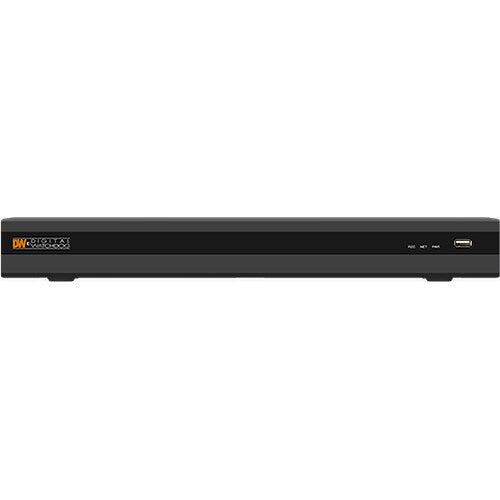

Digital Watchdog VMAX IP G4 DW-VG4164T16P 16-Channel 4TB PoE NVR

The Digital Watchdog VMAX IP G4 DW-VG4164T16P is a 16-channel network video recorder designed for centralized management and recording of IP surveillance cameras. With 16 integrated PoE+ ports, support for cameras up to 4K resolution, and 4TB of internal storage, this NVR provides a streamlined solution for commercial, residential, and multi-camera security installations.

The embedded Linux platform supports continuous, scheduled, motion, sensor, emergency, and pre/post-alarm recording. The recorder also provides local 4K display output, remote access, smart search functions, PTZ control, and compatibility with ONVIF Profile S cameras.

Key Features

• 16-Channel NVR: Supports up to 16 IP camera channels for centralized video recording and management.
• 4TB Internal Storage: Includes 4TB of internal storage for recording surveillance footage.
• 16 Built-In PoE+ Ports: Integrated 802.3at PoE+ ports provide network connectivity and power for compatible IP cameras.
• 4K Recording Support: Supports IP cameras with resolutions up to 3840 x 2160 (4K).
• Up to 480 fps Recording: Supports recording rates up to 480 fps across the system at supported resolutions.
• H.264 & H.265 Compression: Supports H.264 and H.265 video compression for compatible cameras.
• ONVIF Profile S: Supports integration with compatible ONVIF Profile S IP cameras.
• Dual-Stream Recording: Supports simultaneous recording streams for supported camera configurations.
• Smart Search: Includes timeline, calendar, event, thumbnail, and smart motion search functions.
• Multiple Recording Modes: Supports continuous, scheduled, motion detection, sensor, emergency, and pre/post-alarm recording.
• Local 4K Display: Provides True HD and VGA video outputs with support for resolutions up to 3840 x 2160.
• Remote Monitoring: Compatible with supported Digital Watchdog remote monitoring and management applications.

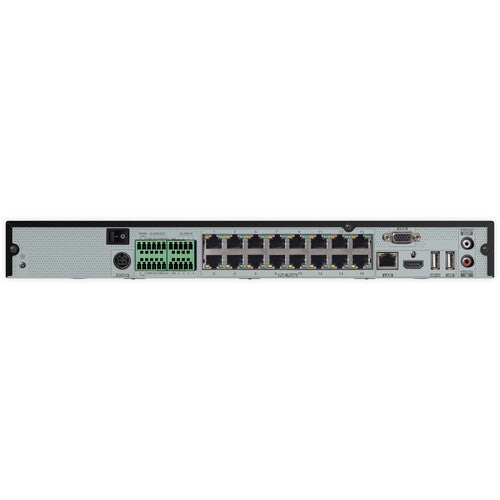

Integrated PoE+ Connectivity

The DW-VG4164T16P features 16 integrated PoE+ ports, allowing compatible IP cameras to connect directly to the recorder. The 802.3at PoE+ ports support up to 30W per port, with a total PoE power budget of 160W according to the current manufacturer specifications.

This integrated design can simplify camera installation by combining network connectivity and power delivery within the NVR.

4K Video Recording

The VMAX IP G4 supports IP cameras with resolutions up to 4K (3840 x 2160). The 16-channel system supports up to 480 fps recording at supported configurations, with a maximum network throughput of 160 Mbps.

H.264 and H.265 compression support provides compatibility with a wide range of IP surveillance cameras while helping manage network and storage requirements.

Recording & Playback

The NVR offers several recording modes for different surveillance requirements, including continuous, scheduled, motion detection, sensor-triggered, emergency, and pre/post-alarm recording.

Recorded footage can be searched using timeline, calendar, event, thumbnail, and smart motion search functions. Playback speeds range from 1x through higher-speed options up to 99x, depending on the playback configuration.

Remote Monitoring & Management

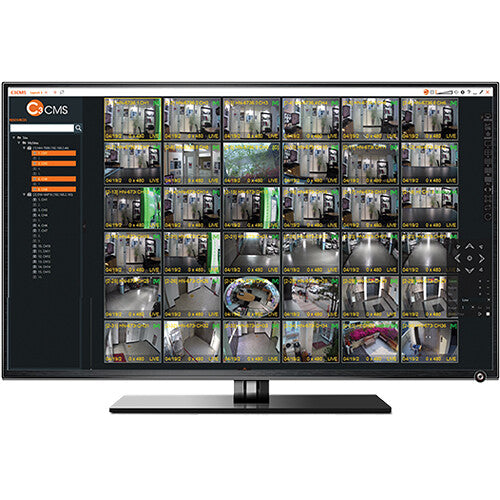

The VMAX IP G4 platform supports remote access and management through compatible Digital Watchdog software and applications. The system can be integrated into larger surveillance environments using C3 Central Management Software, while supported mobile applications provide remote access to compatible systems.

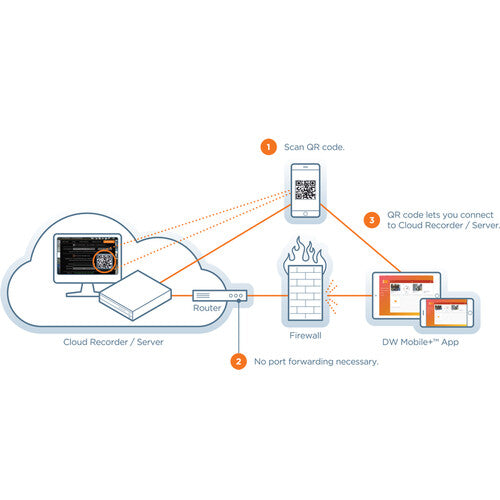

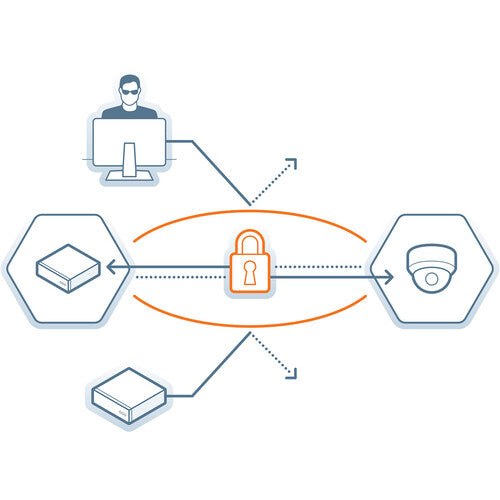

Digital Watchdog's PathFinder technology supports remote connectivity without requiring traditional port forwarding, while CCIP system encryption uses TLS-based communication for supported camera and recorder configurations.

Storage & Expansion

This specific DW-VG4164T16P configuration includes a 4TB internal hard drive. The recorder has two SATA hard-drive bays and the VMAX IP G4 platform supports storage configurations up to 32TB, depending on the selected model.

Note: Storage capacity and configuration can affect recording retention time. Actual retention depends on the number of cameras, resolution, frame rate, compression settings, recording schedule, and other system settings.

Alarm, Audio & PTZ Support

• 8 alarm inputs
• 4 relay outputs
• 1-channel audio input
• 1-channel audio output
• RS-485 PTZ control
• ONVIF PTZ support
• Pre- and post-alarm recording

Technical Specifications

• Brand: Digital Watchdog
• Series: VMAX IP G4
• Model: DW-VG4164T16P
• Device Type: Network Video Recorder (NVR)
• Channels: 16
• PoE Ports: 16
• PoE Standard: IEEE 802.3at PoE+
• Maximum Power Per PoE Port: 30W
• Total PoE Power Budget: 160W
• Internal Storage: 4TB
• Maximum Platform Storage: Up to 32TB
• Hard Drive Bays: 2 x SATA
• Maximum Camera Resolution: 4K (3840 x 2160)
• Maximum Recording Rate: Up to 480 fps
• Maximum Throughput: 160 Mbps
• Video Compression: H.264, H.265
• Network: 1 x Gigabit Ethernet RJ45
• Protocol: ONVIF Profile S
• Audio: 1 input / 1 output
• Alarm Inputs: 8
• Relay Outputs: 4
• PTZ Control: RS-485 and ONVIF
• Video Outputs: True HD and VGA
• Operating System: Embedded Linux
• Operating Temperature: 23°F to 122°F (-5°C to 50°C)
• Operating Humidity: 10% to 90% RH
• Dimensions: 1.77" H x 14.96" W x 10.58" D
• Weight: 4.1 lbs barebone
• Power Consumption: 180W total recorder and PoE power
• Warranty: 5-year limited warranty
• Certifications: CE, FCC, NDAA, TAA

What's Included

• Digital Watchdog DW-VG4164T16P VMAX IP G4 NVR
• 4TB internal storage
• USB mouse

Ideal Applications

The DW-VG4164T16P is suited for multi-camera surveillance systems in commercial properties, offices, retail locations, warehouses, residential properties, parking areas, and other installations requiring centralized IP camera recording and management.
