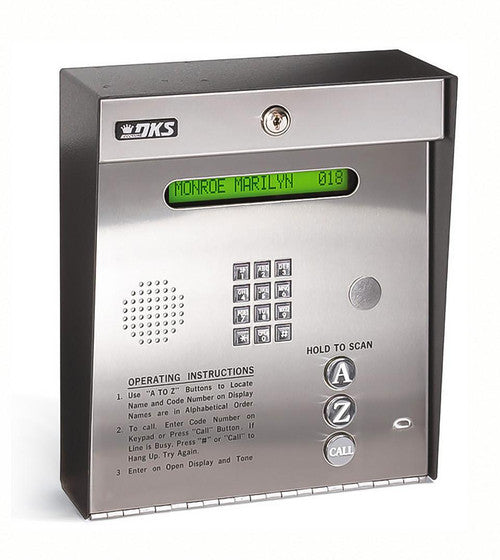

The DoorKing 1834 Telephone Entry System is a PC-programmable access control solution designed for apartment communities, gated communities, condominiums, office buildings, and other properties requiring telephone-based visitor entry. The system stores up to 3,000 names and telephone numbers and can control two entry points through its two form “C” dry contact relays.
The 1834 features a single-line LCD directory, illuminated keypad, one-touch calling, A/Z directory navigation, full-duplex voice communication, and an 8,000-event transaction buffer. Programming and transaction management can be handled through compatible DoorKing programming methods, including DKS Cloud, modem, or RS-232 connections.
Key Features
- Stores up to 3,000 names and telephone numbers
- Controls up to 2 entry points
- Two form “C” dry contact relays
- Full-duplex hands-free voice communication
- Single-line LCD directory with 1/2-inch characters
- One-touch CALL button for visitor operation
- A/Z scroll buttons for directory navigation
- LED-illuminated keypad
- 8,000-event transaction buffer
- PC programmable through compatible DKS programming connections
- Built-in clock and calendar
- Programmable entry codes and hold-open time zones
- Holiday scheduling capability
- Built-in postal lock provision
- Supports 10- and 11-digit dialing
3,000-Number Directory Capacity
The DoorKing 1834 provides directory storage for up to 3,000 telephone numbers and names, making it suitable for larger multi-unit residential communities and commercial properties. Names can be stored with their associated telephone numbers for convenient visitor directory access.
Two-Entry-Point Control
Two form “C” dry contact relays allow the system to control two entry points. This can be used for configurations such as a vehicle gate and pedestrian entrance, depending on the property's access-control setup and installation requirements.
Visitor Directory and Calling
The single-line LCD directory uses 1/2-inch characters for viewing stored names and information. Large A and Z scroll buttons help visitors navigate the directory, while the dedicated CALL button provides one-touch access to the selected telephone number.
Transaction Logging
An 8,000-event transaction buffer records system activity for later review. Live transaction monitoring is also available when the system is connected through a compatible TCP/IP or RS-232 configuration.
Programming and Connectivity
The 1834 can be programmed using compatible DoorKing programming solutions. Depending on the installation, supported connection methods include cellular, VoIP/internet, wireless, or POTS telephone service. Additional hardware or service subscriptions may be required depending on the selected connection method.
DKS Cloud programming is available with compatible DoorKing connection services. The system can also support PC programming through compatible modem or RS-232 configurations.
Scheduling and Access Management
- Programmable 1- to 4-digit directory codes
- Four-digit entry codes
- Hold-open time zones
- Holiday scheduling
- Built-in clock and calendar
- 10- and 11-digit dialing capability
Construction and Installation
The 1834 uses a metal keypad and directory assembly with an internally illuminated keypad and A/Z/CALL buttons. The system is available in surface- and flush-mount configurations, with mounting hardware and accessories selected according to the installation requirements.
Technical Specifications
- Model: DoorKing 1834-080
- Series: 80 Series
- Directory Capacity: Up to 3,000 names and telephone numbers
- Area Codes: Up to 255
- Entry Points: 2
- Relays: 2 form “C” dry contact relays
- Transaction Buffer: 8,000 events
- Display: Single-line LCD, 1/2-inch characters
- Communication: Full-duplex voice communication
- Directory Codes: Programmable from 1 to 4 digits
- Entry Codes: Four-digit codes
- Dialing: 10- and 11-digit dialing
- Power: 16 VAC; DoorKing documentation specifies two power transformers for the 1834 system
- Operating Temperature: 10°F to 145°F (-12°C to 62°C)
- Compliance: UL 294 compliant and ETL listed
Mounting Options
The DoorKing 1834 is offered in surface and flush mounting configurations. The supplied product listing allows the mounting configuration to be specified when ordering. Flush-mount installations require the appropriate flush-mount hardware.
Available Accessories
Depending on the installation, available accessories include flush-mount installation hardware, surface-mount trim components, heater kits, backup batteries, ADA handset kits, surge suppressors, and optional CCTV camera equipment.
Important Installation Note
Connection hardware and service requirements vary depending on whether the system is configured for cellular, VoIP/internet, wireless, or telephone-line service. Verify the required DoorKing connection hardware and service subscription before installation.
Product Summary
The DoorKing 1834-080 provides high-capacity telephone entry for properties requiring directory access for up to 3,000 residents or users. With two-entry-point control, full-duplex communication, an illuminated LCD directory, programmable access features, and an 8,000-event transaction buffer, it is suited for larger residential and commercial access-control installations.
Manufacturer: DoorKing
Model: 1834-080
Product Type: Telephone Entry System
Directory Capacity: 3,000 Names and Telephone Numbers
