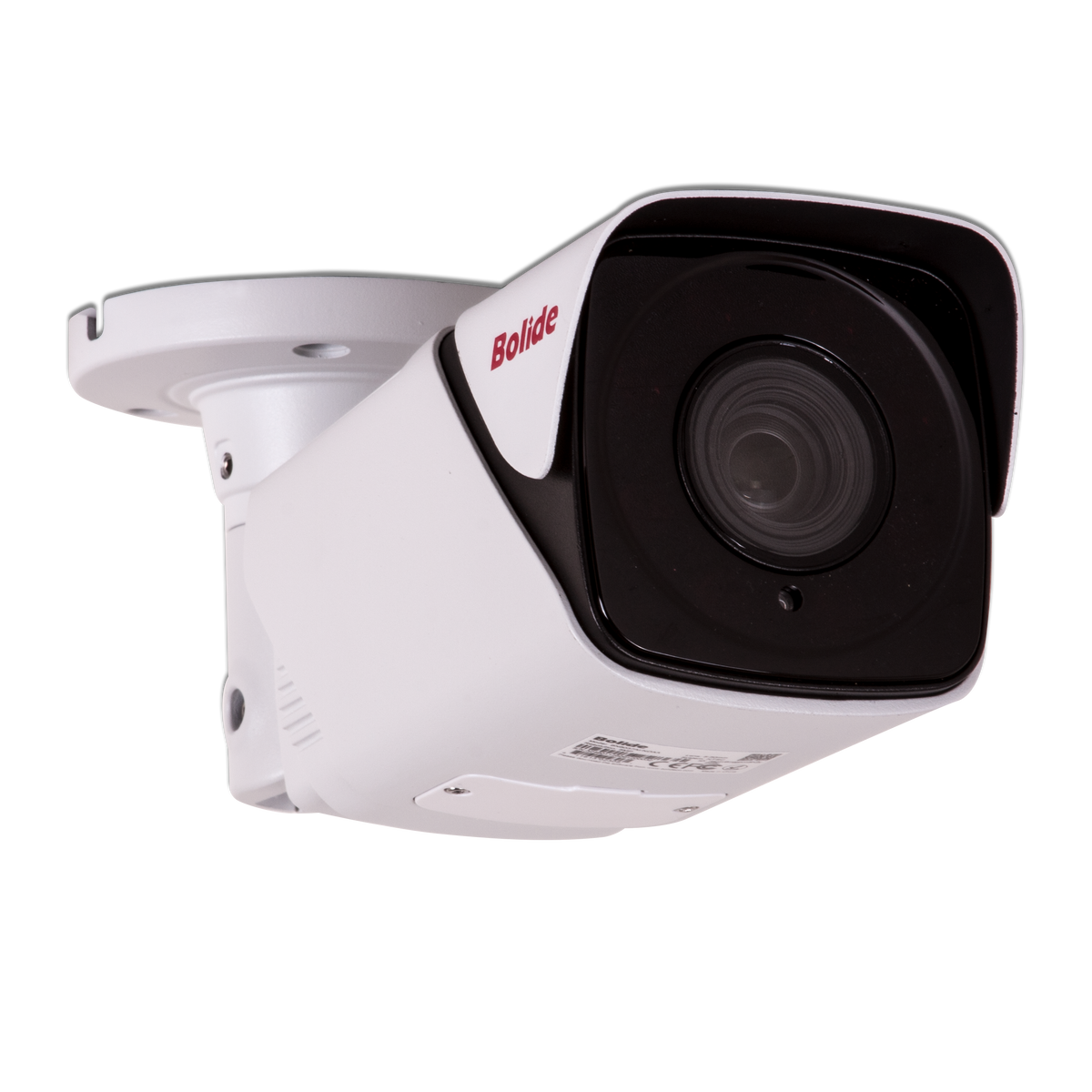

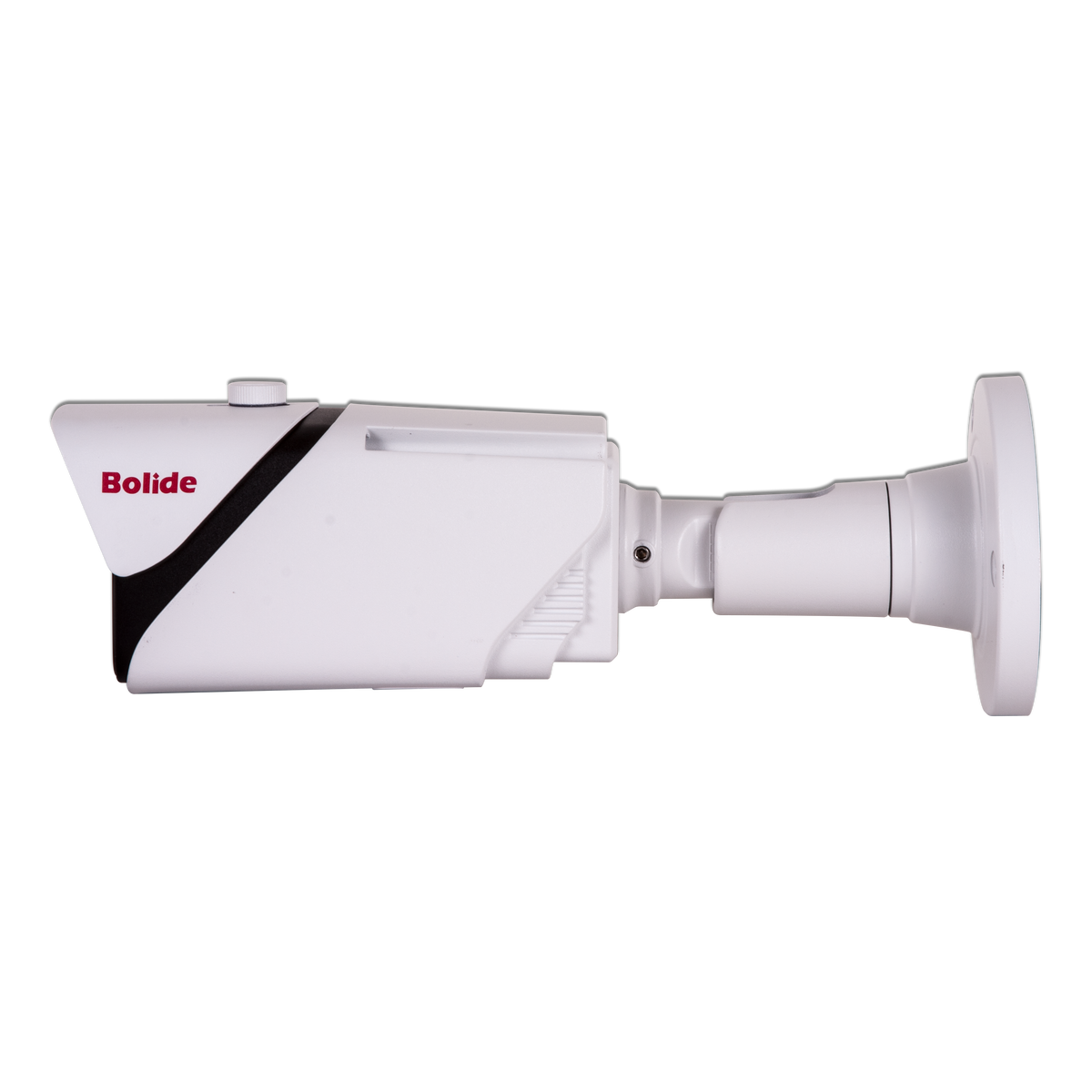

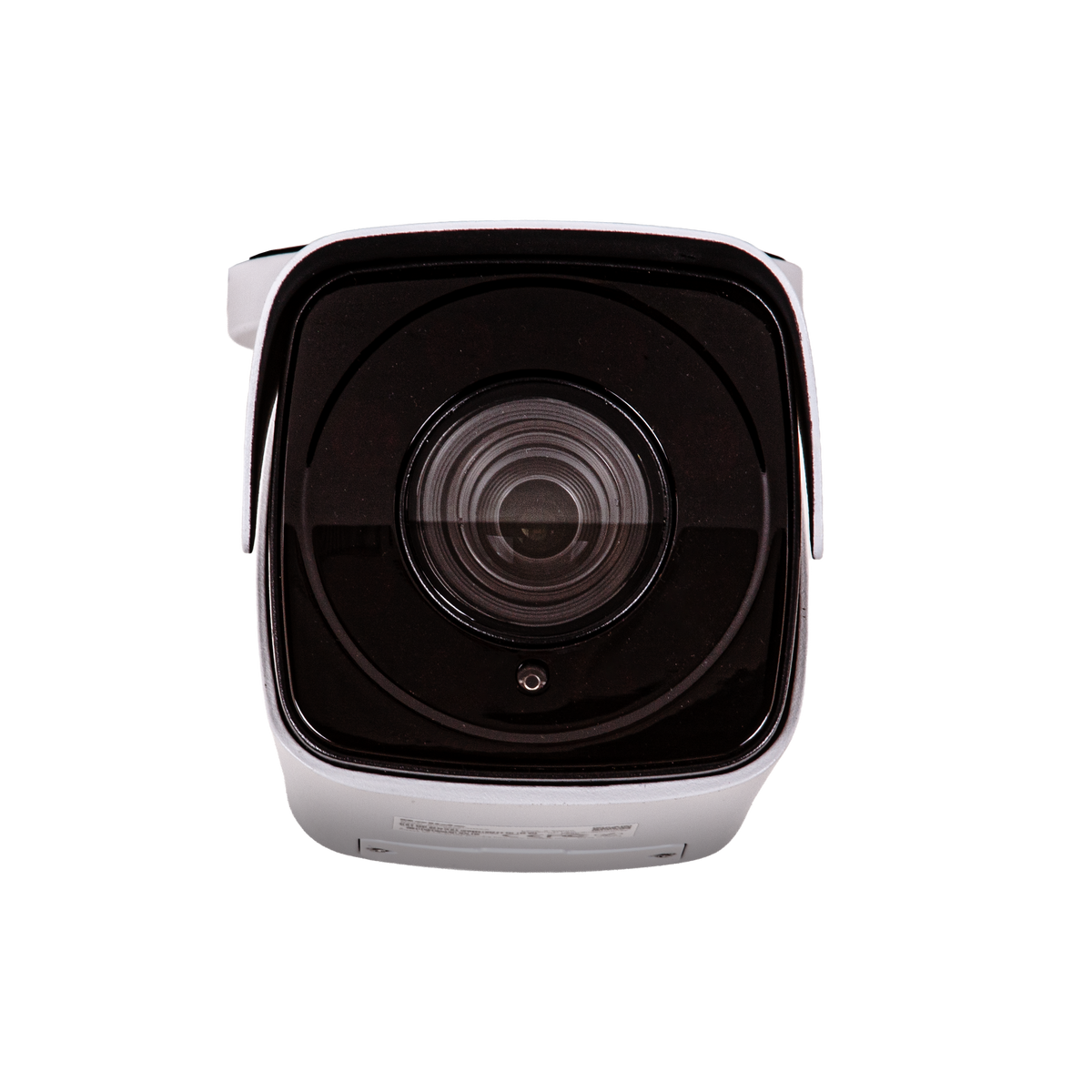

Bolide BN8037AI/NDAA 5MP H.265 LPR Long-Range Motorized Varifocal Bullet Camera

The Bolide BN8037AI/NDAA is a 5MP outdoor network bullet camera designed for long-range surveillance, license plate applications, and AI-assisted monitoring. It features a motorized varifocal lens, 120dB WDR, H.265 video compression, IR illumination, and Bolide's iPac AI functionality.

The camera supports up to 2592 × 1944 resolution at 30 FPS and uses a 2.7–13.5mm motorized varifocal lens. Its long-range DORI specifications extend up to 260 meters for detection when the lens is set to the 13.5mm position. The camera also supports license plate detection and recognition, face detection and recognition, pedestrian and vehicle detection, and additional perimeter and scene analytics.

Key Features

• 5MP outdoor network bullet camera
• 2592 × 1944 resolution at up to 30 FPS
• 2.7–13.5mm motorized varifocal lens
• 120dB Wide Dynamic Range (WDR)
• H.265/H.264/H.265+/H.264+/MJPEG compression
• Long-range DORI performance
• IR-assisted night imaging
• Face detection and face recognition
• License plate detection and recognition
• Pedestrian and vehicle detection
• Perimeter intrusion and line-crossing detection
• Object detection and counting
• Heat map, crowd density, and queue-length analytics
• Region entrance and exit detection
• Rare sound and sound detection functions
• Video tampering detection
• MicroSD storage up to 1TB
• ONVIF Profile S/G/T/M compatibility
• PoE or 12V DC power
• IP67-rated outdoor housing
• NDAA compliant

5MP Image Sensor

The BN8037AI/NDAA uses a 1/2.7-inch Progressive Scan CMOS sensor and provides an effective resolution of 5MP, or 2592 × 1944 pixels. The camera supports up to 30 FPS at its maximum resolution.

Motorized Varifocal Lens

The 2.7–13.5mm motorized varifocal lens allows the viewing angle to be adjusted remotely during configuration. This provides flexibility for installations requiring either a wider view or tighter framing of a more distant area.

Bolide specifies the following DORI distances:

• 2.7mm: Detection 52m, Observation 20m, Recognition 10m, Identification 5m
• 13.5mm: Detection 260m, Observation 104m, Recognition 52m, Identification 26m

DORI distances are manufacturer-specified reference values and actual performance can vary according to lighting, scene conditions, installation height, lens configuration, and subject characteristics.

AI Face and License Plate Functions

The BN8037AI/NDAA includes AI functions for face and license plate applications. Supported functions listed by Bolide include face detection, face recognition, license plate detection, and license plate recognition.

The camera also supports pedestrian and vehicle detection and additional analytics for monitoring activity within defined areas.

AI Video Analytics

Additional AI and video analytics listed for the camera include:

• Pedestrian and vehicle detection
• Perimeter intrusion detection
• Line crossing
• Object detection
• Cross counting
• Heat map
• Crowd density
• Queue length detection
• Intrusion detection
• Region entrance detection
• Region exit detection
• Video tampering detection
• Rare sound detection
• Sound detection

Analytics should be configured according to the surveillance environment and the capabilities of the connected recording or video-management system.

120dB Wide Dynamic Range

True 120dB WDR helps the camera handle scenes containing significant differences between bright and darker areas. The camera also incorporates 3D digital noise reduction for image processing in supported conditions.

Low-Light and IR Performance

The BN8037AI/NDAA specifies minimum illumination of 0.002 lux in color mode at F1.2 with AGC enabled. With IR illumination active, the manufacturer specifies 0 lux operation. The camera also supports Full Color, Day/Night, and Smart Illumination modes.

Video Compression

The camera supports H.265, H.264, H.265+, H.264+, and MJPEG compression. The specified video bit-rate range is 256Kbps to 8Mbps, with both constant and variable bit-rate control available.

Supported main-stream resolutions include 5MP, 4MP, 3MP, 1080P, and 960P. Secondary and mobile streams provide lower-resolution options for applications where reduced bandwidth is preferred.

Network and Storage

The BN8037AI/NDAA supports ONVIF Profiles S, G, T, and M for integration with compatible surveillance systems. A built-in MicroSD card slot supports storage capacities up to 1TB.

The camera supports PoE through IEEE 802.3af as well as 12V DC power, providing flexible installation options depending on the available network and power infrastructure.

Audio and Alarm Interfaces

The camera does not include a built-in microphone or speaker. Bolide specifies G.711A/G.711U audio compression and custom voice support. The available interface configuration should be matched to the intended NVR or surveillance platform during installation.

Outdoor Construction

The metal housing is rated IP67 for outdoor protection against dust and water ingress. The specified operating range is -22°F to 140°F (-30°C to 60°C), with relative humidity below 95% under non-condensing conditions.

Technical Specifications

• Model: BN8037AI/NDAA
• Product Type: Outdoor AI Network Bullet Camera
• Image Sensor: 1/2.7-inch Progressive Scan CMOS
• Effective Pixels: 5MP
• Maximum Resolution: 2592 × 1944
• Maximum Frame Rate: 30 FPS
• Lens: 2.7–13.5mm motorized varifocal
• WDR: 120dB
• Shutter: 1/5–1/20,000s
• Minimum Illumination: 0.002 Lux @ F1.2, AGC ON; 0 Lux with IR
• Noise Reduction: 3D DNR
• Video Compression: H.265, H.264, H.265+, H.264+, MJPEG
• Video Bit Rate: 256Kbps–8Mbps
• Bit Rate Control: CBR/VBR
• Audio Compression: G.711A/G.711U
• Built-in Microphone: No
• Built-in Speaker: No
• Local Storage: MicroSD, up to 1TB
• Network Compatibility: ONVIF Profiles S/G/T/M
• Power: 12V DC or PoE IEEE 802.3af
• Maximum Power Consumption: 8.26W via DC12V; 10.46W via PoE
• Housing Material: Metal
• Protection Rating: IP67
• Operating Temperature: -22°F to 140°F (-30°C to 60°C)
• Humidity: Less than 95%, non-condensing
• Weight: 1.94 lb (approximately 0.88 kg)
• Dimensions: 9.43" × 3.4" (approximately 239.6 × 86.4mm)
• Compliance: NDAA compliant

Installation Considerations

The motorized varifocal lens makes the BN8037AI/NDAA suitable for installations where the desired viewing angle and subject distance may vary. For long-range applications such as perimeter monitoring or license plate surveillance, camera height, mounting angle, lighting, traffic direction, and lens adjustment should be considered during installation.

Product Summary

The Bolide BN8037AI/NDAA combines 5MP imaging, a motorized varifocal lens, long-range DORI performance, IR-assisted night operation, 120dB WDR, and AI-based face and license plate functions in an outdoor bullet-camera design. With PoE support, MicroSD recording, ONVIF compatibility, and IP67 protection, it is designed for outdoor surveillance applications requiring adjustable long-range coverage and AI-assisted video analysis.
