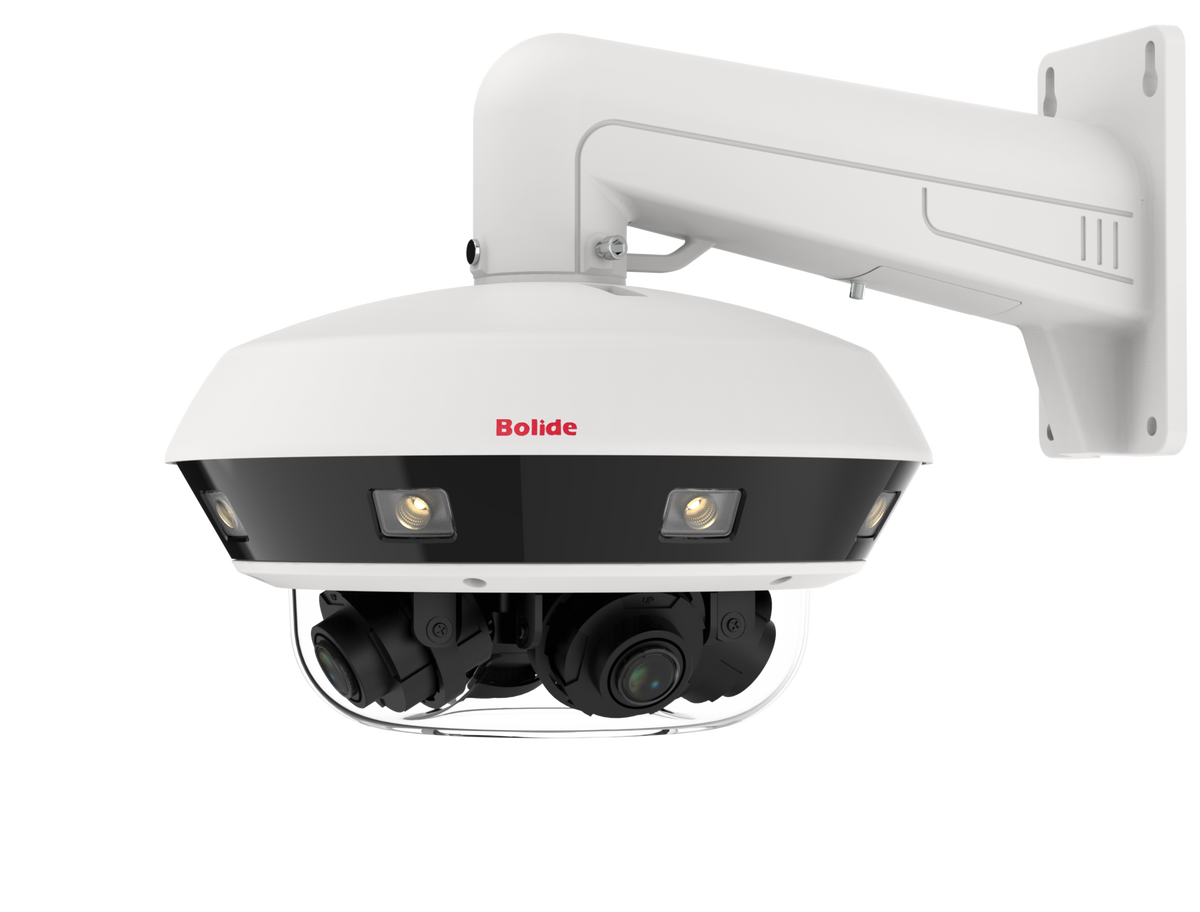

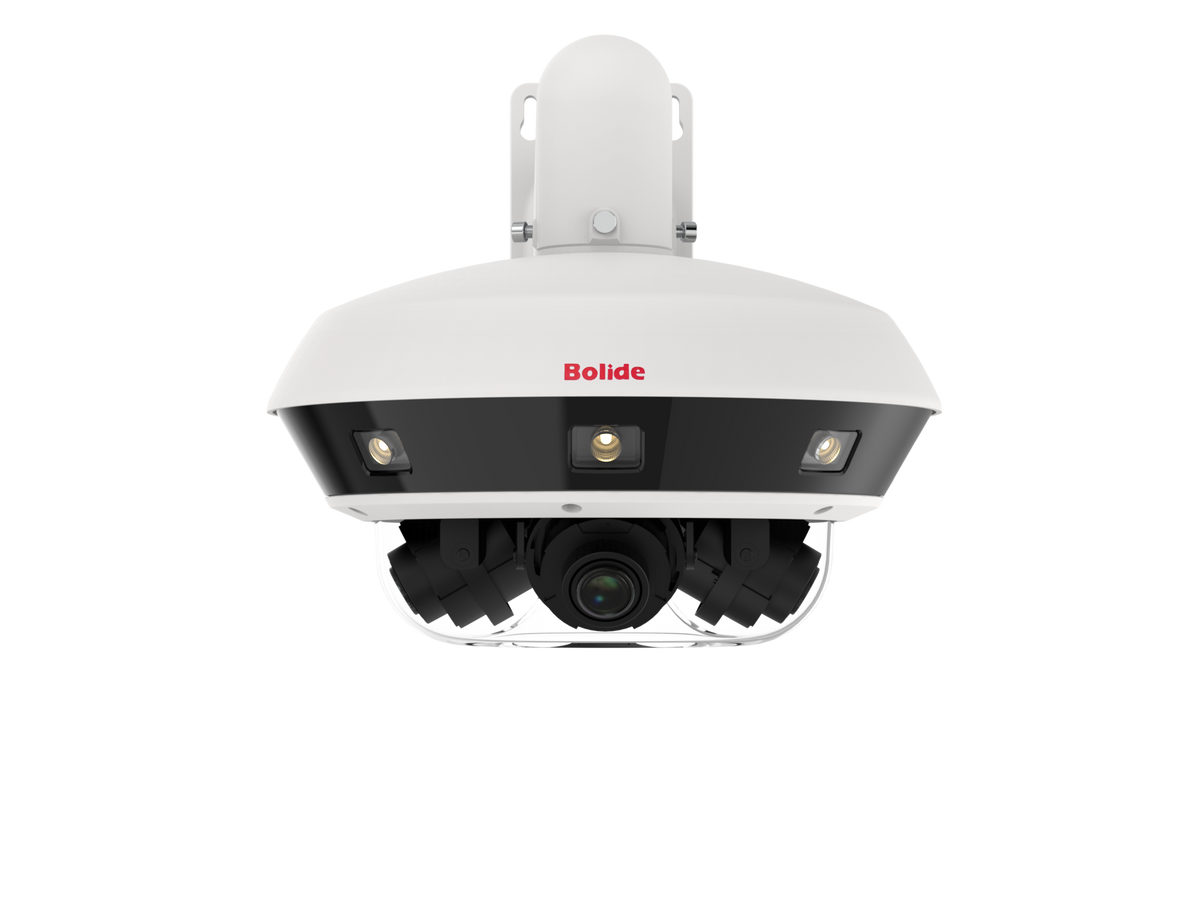

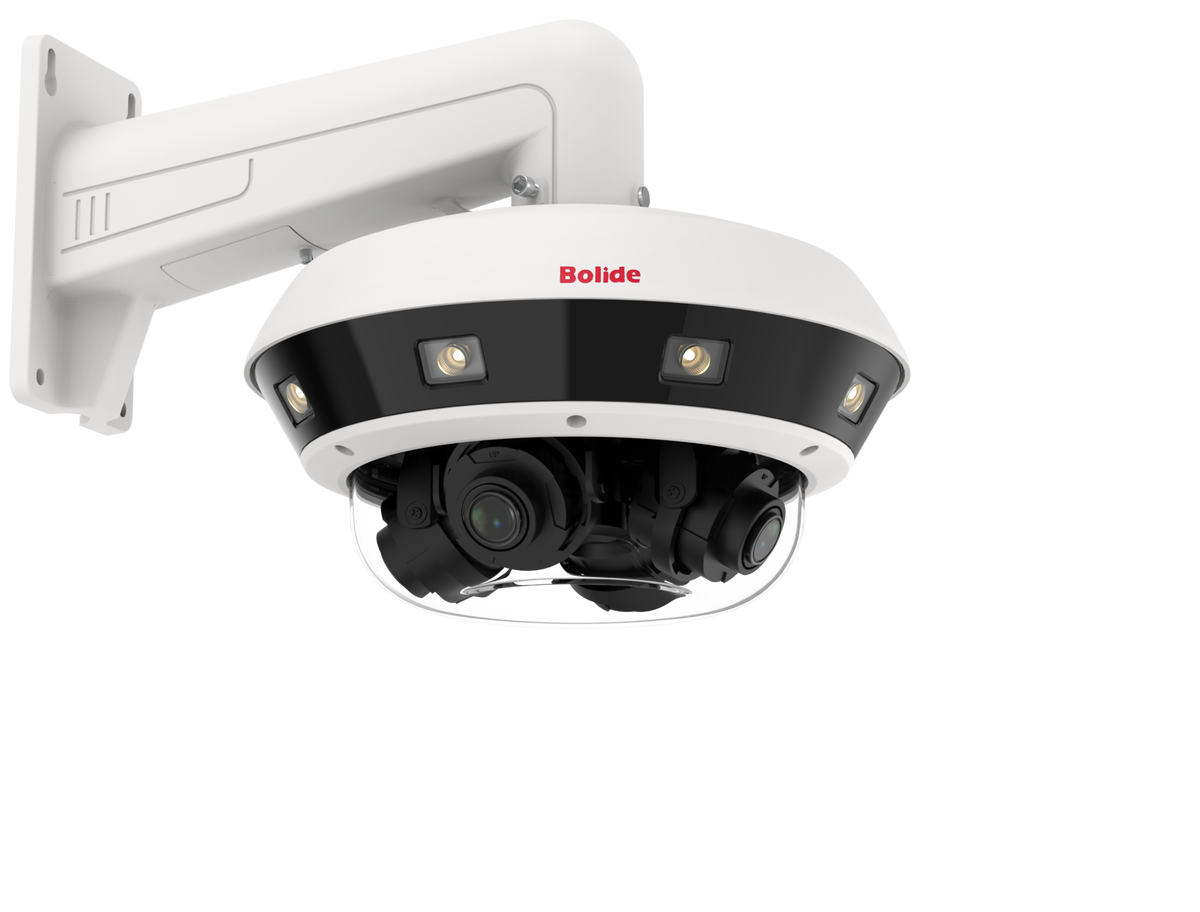

The Bolide BN9108R/NDAA is a 4K outdoor multi-sensor network camera designed to provide wide-area surveillance from a single camera housing. It combines four independently adjustable motorized varifocal lenses, with each channel supporting up to 8MP resolution at 25/30 FPS. The four-channel design can be configured to provide coverage across a field of view of up to 360 degrees.
Each imaging channel uses a 1/1.8-inch Progressive CMOS sensor with 2.8–12mm motorized varifocal optics, 120dB WDR, and Starlight performance. Built-in IR and warm-light illumination provides supplemental lighting for outdoor monitoring, while the IP67 and IK10 ratings are designed for outdoor and vandal-resistant installations.
Key Features
- Four-channel 4K multi-sensor network camera
- Four independently adjustable lenses in one camera housing
- Up to 360° field-of-view coverage
- Up to 8MP (3840 × 2160) resolution per channel
- 25/30 FPS at supported 8MP resolution
- 1/1.8-inch Progressive CMOS sensor per channel
- 2.8–12mm motorized varifocal lens per channel
- 120dB Wide Dynamic Range (WDR)
- Starlight imaging
- Built-in IR and warm-light illumination
- Smart supplemental lighting
- H.265+, H.265, H.264+, and H.264 video compression
- MicroSD/SDHC/SDXC storage support up to 256GB
- ONVIF Profile S/G/T support
- Gigabit Ethernet connection
- Two alarm inputs and two alarm outputs
- Audio input and output
- Built-in iPac AI Intelligence Suite
- IP67 weather protection and IK10 impact resistance
- NDAA compliant
Four Independent Camera Channels
The BN9108R/NDAA combines four camera channels into one enclosure. Each lens can be adjusted independently, allowing installers to configure the camera for different viewing directions and coverage requirements. The lenses can slide from -60° to 60°, tilt from 0° to 90°, and rotate from 0° to 355°.
4K Imaging and Motorized Varifocal Optics
Each channel supports up to 8MP (3840 × 2160) resolution. The 2.8–12mm motorized varifocal lens provides adjustable framing for different surveillance distances and viewing requirements.
The specified field of view per channel ranges from 48° to 112° horizontally, 27° to 58° vertically, and 55° to 138° diagonally.
Low-Light Performance
Each channel uses Starlight imaging and 120dB WDR for challenging lighting conditions. Minimum illumination is specified at 0.006 lux for color and 0.002 lux for black-and-white operation at F1.2 with AGC enabled. With IR or white-light illumination active, the camera specifies 0 lux operation.
IR and Warm-Light Illumination
The camera includes dual-source supplemental lighting using both IR and warm light. The specified supplemental range is up to 98 feet for IR and up to 49 feet for warm light. The IR illumination uses an 850nm wavelength, and Smart Supplement Light is supported.
AI Video Analytics
The BN9108R/NDAA includes Bolide's iPac AI Intelligence Suite. The manufacturer lists multiple analytics functions, and the intelligence functions of all four channels can be enabled simultaneously. Available analytics include:
- Face recognition
- Human and vehicle detection
- Line-crossing detection
- Perimeter crossing detection
- Face attendance
- Stationary object detection
- Suspect tracking
- Queue length detection
- People counting
- AI scene analysis
- License plate detection
- Foot traffic heat maps
- Rare sound detection
AI analytics should be configured according to the installation environment and the capabilities of the connected recording or management system.
Video Compression and Recording
The camera supports H.265+, H.265, H.264+, and H.264 compression for the main stream, with MJPEG also supported for the sub stream. Main-stream resolutions include 8MP, 5MP, 4MP, 3MP, 1080P, 960P, and 720P. The specified video bit rate range is 8Kbps to 16Mbps. Region of Interest (ROI) is also supported.
Network and Integration
A 10/100/1000M RJ45 Ethernet port provides network connectivity. Supported network protocols include TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, uPNP, SNMP, HTTPS, and PPPoE.
The camera supports ONVIF Profile S, Profile G, and Profile T for integration with compatible surveillance and video management systems. Bolide specifies support for up to 92 simultaneous live-view streams and up to 32 users, with administrator and user access levels.
Local Storage and Interfaces
- Built-in MicroSD/SDHC/SDXC card slot
- Supports cards up to 256GB
- 1 RCA audio input
- 1 RCA audio output
- 2 alarm inputs
- 2 alarm outputs
- Reset function
- 1 × 10/100/1000M Ethernet port
Outdoor Construction
The camera is rated IP67 for protection against dust and water ingress and IK10 for impact resistance. It is specified for operating temperatures from -40°F to 131°F with relative humidity of 95% or less. The camera weighs approximately 10.1 lb.
Technical Specifications
- Model: BN9108R/NDAA
- Product Type: 4K Outdoor 4-Channel Multi-Sensor Network Camera
- Channel Count: 4
- Sensor: 1/1.8-inch Progressive CMOS per channel
- Maximum Resolution: 8MP (3840 × 2160) per channel
- Frame Rate: Up to 25/30 FPS at supported 8MP resolution
- Lens: 2.8–12mm motorized varifocal
- Horizontal FOV: 48°–112°
- Vertical FOV: 27°–58°
- Diagonal FOV: 55°–138°
- Aperture: Up to F1.30
- WDR: 120dB
- Supplemental Lighting: IR and warm light
- IR Range: Up to 98 ft
- Warm-Light Range: Up to 49 ft
- IR Wavelength: 850nm
- Video Compression: H.265+, H.265, H.264+, H.264; MJPEG sub stream
- Video Bit Rate: 8Kbps–16Mbps
- Local Storage: MicroSD/SDHC/SDXC up to 256GB
- Network: 10/100/1000M Ethernet
- ONVIF: Profile S/G/T
- Audio: 1 input / 1 output, G.711
- Alarm: 2 inputs / 2 outputs
- Power: AC 24V, DC 12V, or Hi-PoE
- Maximum Power Consumption: 43W
- Protection: IP67 / IK10
- Operating Temperature: -40°F to 131°F
- Humidity: 95% or less
- Weight: 10.1 lb
- Dimensions: 11.8" × 7.7"
- Compliance: NDAA compliant
Included Accessory
- Wall mount bracket
Installation and Mounting Options
The BN9108R/NDAA can be installed using compatible mounting accessories for different installation environments. Bolide lists dedicated junction-box, pole-mount, corner-mount, and pendant-mount accessories for the BN9108R/NDAA family. These accessories are available separately unless specifically included with the selected package.
Product Summary
The Bolide BN9108R/NDAA combines four independently adjustable 4K camera channels in a single outdoor-rated housing. With motorized varifocal lenses, up to 360° coverage, 120dB WDR, IR and warm-light illumination, local microSD storage, ONVIF integration, and multi-channel AI analytics, it is designed for large-area surveillance applications where multiple viewing directions are required from one camera installation.
