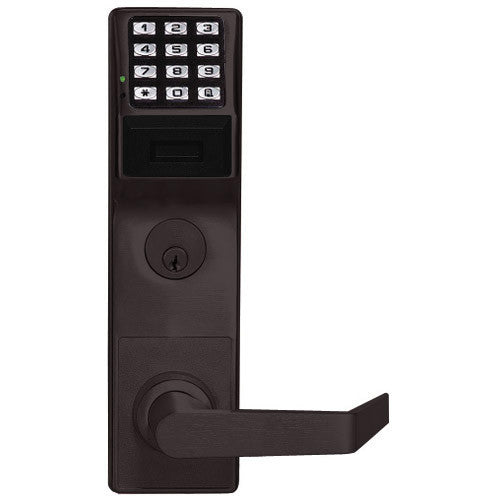

Alarm Lock PDL6500CRL-10B Trilogy Networx Digital Mortise Keyless Prox/Pin Lock – Left Hand, Straight Lever, Duronodic

The Alarm Lock Trilogy Networx PDL6500CRL-10B is a wireless digital mortise lock that combines PIN-code and HID proximity credential access in a Grade 1 mortise lock platform. This left-hand model features a straight lever and Duronodic finish with a classroom-function mortise lock body.

Designed for networked access control, the PDL6500 series communicates wirelessly with a Networx gateway, allowing authorized users, schedules, and audit information to be managed without programming each lock individually at the door. The lock can also be programmed locally through its built-in keypad.

Key Features

• Trilogy Networx wireless digital mortise lock
• Supports PIN codes and HID proximity cards or key fobs
• Up to 5,000 user PIN codes
• 3- to 6-digit user PINs
• Supports up to 5,000 existing HID proximity cards or badges
• Left-hand configuration
• Straight lever design
• Classroom-function mortise lock
• Duronodic finish
• BHMA Grade 1 lock construction
• Built-in 12-button metal keypad
• Wireless communication through Networx gateway infrastructure
• Automatic access schedules and event logging
• Battery powered with four C-cell batteries
• Manual key override
• Field-reversible lock body
• ADA-compliant lever
• Weather-resistant construction for indoor or outdoor applications

PIN and Proximity Access

The PDL6500 combines keypad and proximity access in one lock. Users can be assigned PIN credentials, HID proximity credentials, or configured access methods according to the requirements of the installation. The built-in HID proximity reader supports compatible proximity cards and key fobs.

Networx Wireless Networking

Networx technology allows the lock to communicate with a central computer through compatible gateway equipment. This provides centralized management of users, schedules, and audit information while reducing the need to visit individual doors for routine programming and audit-trail retrieval.

Networx systems can support up to 2,000 locks and communicate using Ethernet-connected or 802.11b/g wireless gateway infrastructure. The system also supports remote management when properly configured on the facility's network.

Access Management

The Trilogy platform supports multiple levels of user access and scheduled locking functions. The system can maintain event records and provide access-control information through compatible Alarm Lock software.

Alarm Lock DL-WINDOWS software supports programming and management of Trilogy and Trilogy Networx locks from a Windows-based computer. Compatible gateway and network equipment is required for centralized Networx operation.

Durable Mortise Lock Construction

The PDL6500 uses a Grade 1 mortise lock body with a classroom function. The supplied configuration includes a straight lever and Duronodic finish. The lock body is designed for standard ANSI A115 mortise preparation with additional through-bolt holes required for installation.

Weather-Resistant Design

Trilogy Networx mortise locks are designed for indoor and outdoor applications and have a broad operating temperature range. The PDL6500 series is weather-resistant and can operate in temperatures from approximately -31°F to 151°F (-35°C to 66°C).

Battery Operation

The lock operates on four C-cell batteries, eliminating the need for hardwired power at the door. Battery status can be monitored through the Networx system, with low-battery indicators provided at the lock.

Technical Specifications

• Brand: Alarm Lock
• Series: Trilogy Networx
• Model: PDL6500CRL-10B
• Lock Type: Digital mortise lock
• Access Type: PIN and HID proximity
• Handing: Left Hand
• Lever: Straight lever
• Function: Classroom function
• Finish: Duronodic
• User Capacity: Up to 5,000 PIN users
• PIN Length: 3-6 digits
• Proximity Credential Capacity: Up to 5,000 HID proximity cards/badges
• Keypad: 12-button metal keypad
• Power: Four C-cell batteries
• Backset: 2-3/4"
• Door Thickness: 1-5/8" to 1-7/8"
• Strike: 1-1/4" x 4-7/8" strike
• Lock Body: BHMA Grade 1
• Network Communication: Networx wireless
• Network Options: Ethernet and 802.11b/g through compatible Networx gateway equipment
• Operating Temperature: -31°F to 151°F (-35°C to 66°C)
• Compliance: UL Listed, FCC Certified, ADA compliant

Installation and Compatibility

The PDL6500CRL-10B is intended for compatible ANSI A115 mortise door preparation. The lock body is field reversible, while this specific model is supplied as a left-hand configuration. Verify door handing, mortise preparation, door thickness, and required Networx gateway equipment before installation.

What's Included

• Alarm Lock Trilogy Networx PDL6500CRL-10B digital mortise lock
• Straight lever trim
• Mortise lock body
• Strike
• Standard mortise cylinder and key override hardware
• Four C-cell batteries

Important System Requirements

Centralized Networx programming and management requires compatible Alarm Lock Networx gateway equipment and a properly configured network. The lock can be programmed locally through the keypad, while networked features are managed through compatible Networx software and hardware.

Warranty

Alarm Lock Networx products are backed by a 2-year factory warranty.
